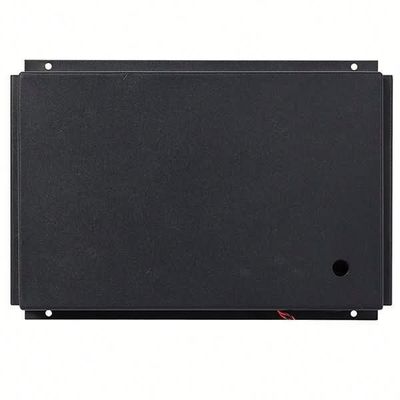

19" - 32" Open Frame LCD Digital Display Screens Infrared Capacitive RS232 USB Powered

19" - 32" Open Frame LCD Digital Display Screens Infrared Capacitive RS232 USB Powered

  • 19" - 32" Open Frame LCD Digital Display Screens Infrared Capacitive RS232 USB Powered
  • 19" - 32" Open Frame LCD Digital Display Screens Infrared Capacitive RS232 USB Powered
  • 19" - 32" Open Frame LCD Digital Display Screens Infrared Capacitive RS232 USB Powered
19" - 32" Open Frame LCD Digital Display Screens Infrared Capacitive RS232 USB Powered
Product Details:
Place of Origin: China
Brand Name: TOPADKIOSK/OEM
Certification: CE/FCC/ROSH
Model Number: TPK-WT4304
Payment & Shipping Terms:
Minimum Order Quantity: 1PC
Price: Negotiate
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 10-15days after receipt of your payment
Payment Terms: T/T, , MoneyGram
Supply Ability: 3000pcs per month
Contact Now
Detailed Product Description
Resolution: 1920 (RGB) × 1080 [FHD] Input Voltage: AC100~240V 50 /60 HZ
Wall Mount Type: VESA, MIS-F Material: Metal Case + Toughened Glass
Interface: VGA, HDMI, USB Installation: Built In
Touch Screen: Infrared Touch /capacitive Touch Screen Type: Touch Screen Monitor
High Light:

interactive touch display

,

touch screen kiosk monitor

19" - 32" Open Frame LCD Digital Display Screens Infrared Capacitive RS232 USB Powered



More specs



Main Features
1. Open frame type
2. Custom design available without addtional cost.
3. Building 2*10W speakers
4. With VGA, HD input, Audio in/out, USB port, power input
5. Touch screen option : Capacitive, Infrared, SAW
6. With Android TV stick option
7. Easily build-in any kind of display rack
8. Accessories: use manual, power adapter
More Specs
LCD screen specs Model number TPK-MW-3204
Screen size: 32"
Display ratio: 16:9
Resolution(Pixel): 1920*1080
Display color: 16.7 M
Response time : 6.5 ms
Luminance: 400 cd/m2 (higher brightness optional)
Contrast ratio: 4000:1
View angle display(L/R/U/D): 89/89/89/89
Power supply AC Input: 110-240V
Appearance Color option: Black or optional
Housing material: Metal
I/O interface:

VGA input, Audio in/out,

USB port, power input

Installation: Build-in
Unit dimensions: 792*482*57MM
Screen area: 697.7*392.3MM
Product weight: 12.76KGS
Packing details Carton size: 880*580*180MM
Quantity/Carton: 1PC
Gross Weight: 15KGS
Package: Wooden packing







FAQ

1) Q: How about your product quality?

A: There are three inspections in our company. from materials, product procedure, spection before shipping.

2) Q:What payment methods your company accept?

A: We accept most ofthe payment methods,but mainly accept T/T,L/C, and MoneyGram.

3) Q:How long is the warranty time for your products?

A: Our officially promised warranty time is one whole year after delivery at best.

4) Q:I haven't done business with you guys before,how can i trust your company?

A: Our company specialize in digital signage for 8 years,which is longer than most of our fellow suppliers what'smore,we've got quite a lot authority certificates,for example,CE,RoHS,FCC , C-TICK,certificate.SGS I hope those above will be persuasive enough.

5) Q:what's the shipment terms and delivery time of your company?

A: Well, they depends on the quantity of your order.As you know ,we need time to manufacture the machines.but mostly ,the shipment time is 3-8 working days after delivery.For Delivery way, for Sample and Bulk order < 100KG, we will kindly suggestExpress and Air freight, when Air freight and Sea shipping for Bulk order >100KG.As for detailed cost, it depends on your final order.

6) Q:Do you give any discount ?

A: I'll surely try my best to help you get those by the best price and good service at the same time.

7) Q:I would like to ask you if it's possible to have my logo on the product.

A: We hope you know that our company Spectrum perfectly support customized logo service. But, we also hope you know that it's an extraservice,so a little bit extra service fee is needed.







19" - 32" Open Frame LCD Digital Display Screens Infrared Capacitive RS232 USB Powered 0

19" - 32" Open Frame LCD Digital Display Screens Infrared Capacitive RS232 USB Powered 1

19" - 32" Open Frame LCD Digital Display Screens Infrared Capacitive RS232 USB Powered 2



19" - 32" Open Frame LCD Digital Display Screens Infrared Capacitive RS232 USB Powered 3
