Place of Origin: | CHINA |
Brand Name: | TOPADKIOSK/OEM |
Certification: | CE&Rohs&FCC |
Model Number: | TPK-OF4365 |
Minimum Order Quantity: | 1PC |
---|---|
Price: | negotiate |
Packaging Details: | Packed in carton firstly,and then reinforced with wooden case for outer packing |
Delivery Time: | 10-15days after receipt of your payment |
Payment Terms: | T/T, , MoneyGram |
Supply Ability: | 3000pcs per month |
Pnale Size: | 43 Inch | Brightness: | 1500-5000nits |
---|---|---|---|
Panel: | 50000hours | Material: | Galvanized Steel With Anti-reflect Glass |
Max Resolution: | 1080*1920 | Touch Screen: | Optional |
Air Condition: | For Optional | Connectivity: | LAN, WIFI, 3G(Optional) |
High Light: | outdoor lcd display screens,outdoor digital display screens |

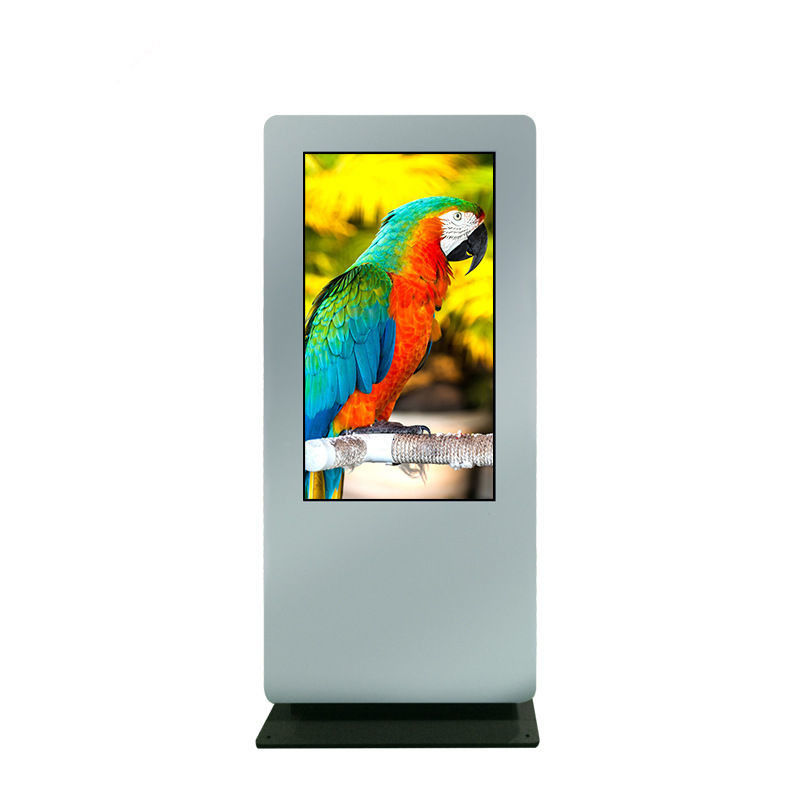

High Brigtness Outdoor LCD Digital Signage With Capacitive Touch Screen Windows Os
※ Professional Outdoor kiosk with excellent design;
※ Industrial level 43” brand new LG original panel with LED backlight;
※ Fully meet outdoor IP55 usage standard application;
※ 49”, 55", 65” size also available;
※ Support industrial level fan ventilating, ensure reliable running;
※ Support anti-reflection glass, make sure best view experience;
※ Support high brightness of 2000 nits, ensure readable under sunlight;
※ Built in auto-temperature control system, can turn off the kiosk automatically;
※ Intelligent air-looping system, can protect the kiosk panel against the so called “blackout”;
※ Support sensitive 10 points capacitive touch (optional)
※ Support Windows OS or Android OS;
※ Support to play program directly from USB or through networking;
※ Support digital signage software HD-DS as a total solution;
※ Industrial level design, support 24/7 working
High brightness screen | |
Size | 55"(1209 *680mm) |
Display Ratio | 16:09 |
Resolution | 1920*1080 HD |
Brightness | 2500 cd/m² |
Contrast Ratio | 3000:1 |
Viewing Angle | 178 ° horizontal / 178 ° vertical |
Operation Parameters | |
Video Interface | VGA HD |
Audio Interface | Input and output |
Brightness Control | Automatic light sensor system |
Temperature Control System | Precise air conditioner |
Operating Temperature | -40°C to +55°C |
Operating Humidity | 5% to 100% |
Power Supply | AC 108-115V |
AC 208-240V | |
Max Consumption | 0.5 Kw |
Waterproof Enclosure | |
Protection Grade | IP65 |
Package Size (W*H*D) | 2160*960*520 mm |
Gross weight | 176kg |
Installation | Floor standing or customized |
Protection Glass | 6mm AR safe glass |
CPU: Allwinner A83T Cortex-A7 Eight-Core CPU 2GHz/RK3288
GPU: PowerVR SGX544
O/S: Android 4.4.4
RAM: 2GB
NAND FLASH: 8GB FLASH/EMMC
Networking: RJ45
Built-in Wireless 802.11b/g/n,WAPI(Ralink 8188)
USB Wireless Dongle
Interface: USB*2,SD*1,VGA*1,RJ45*1,Audio out*1,SIM port*1
Ports: USB*2,SD*1,VGA*1,RJ45*1,Audio out*1,SIM port*1
OSD Language: Chinese, English, Spanish, Russian, German, French, Arabic, etc.
Support split screen: Any split screen display, multiple window video player, can achieve different window showing different content
Processor: Intel Core i3-3217U @ 1.80GHz /I5 /I7
GPU: Intel HD4000 Graphics
Chipset: Intel Chipset HM65
Memory: DDR3 4GB ,Support up to 8GB
Ethernet: Realtek GBE RJ45,8111E
Audio: Realtek HD Audio,Support Line-in,Line-out,Mic-in,Spdif,Speaker
Display: VGA1,LVDS.
Storage: 128G SSD
Touch technology: capacitive touch
Touch model: 10 touch points
Induction object: Finger, pen, any opaque objects
Size of induction: Greater than or equal to 5 mm in diameter
Resolution: 8192*8192
Response time: First point 25ms consecutive points 8ms
Cursor speed: ≥200dots/second
Glass Thickness: 4mm Normal or Anti-glare tempered glass
Application

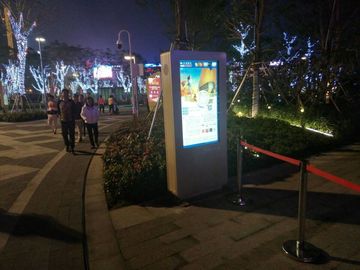

1. Public Places: Subway, Airport, Bookshop, Exhibition hall, Gymnasium, Museum, Conference
center, Talent market, Lottery center, etc.
2. Entertainment Places: Movie theatre, Fitness center, Vacational village, KTV bar, Internet bar,
Beauty salon, Golf course, etc.
3. Financial Institution: Bank, Security/ Fund/ Insurance company, etc.
4. Business Organizations: Supermarket, Shopping malls, Exclusive shop, chain store, 4S shop,
Hotel, Restaurant, travel agency, Chemist's shop, etc.
5. Public Service: Hospital, School, Telecom, Post office, etc.
6. Real Estate&Property: Apartment, Villa, Office building, Commercial office buildings, Model
houses, Sales offices, the entrance of elevator, etc
