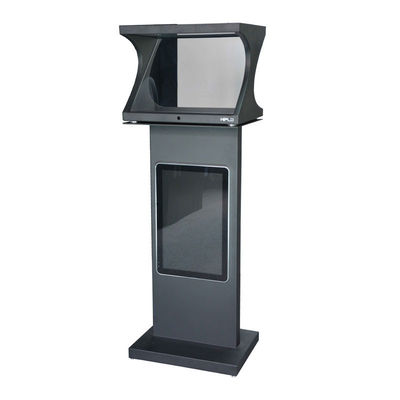

Dual Screen 22 Inch 3D Hologram Box Free Standing USB / VGA Output Port

Dual Screen 22 Inch 3D Hologram Box Free Standing USB / VGA Output Port

  • Dual Screen 22 Inch 3D Hologram Box Free Standing USB / VGA Output Port
  • Dual Screen 22 Inch 3D Hologram Box Free Standing USB / VGA Output Port
Dual Screen 22 Inch 3D Hologram Box Free Standing USB / VGA Output Port
Product Details:
Place of Origin: CHINA
Brand Name: TOPADKIOSK/OEM
Certification: CE&Rohs&FCC
Model Number: TPK-H270-1
Payment & Shipping Terms:
Minimum Order Quantity: 1PC
Price: negotiate
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 10-15days after receipt of your payment
Payment Terms: T/T, , MoneyGram
Supply Ability: 3000pcs per month
Contact Now
Detailed Product Description
Voltage: AC110 - 240V (50Hz - 60Hz) Output Port: USB/VGA,HD
View Angle: 360 Degree Video Format: MP4,AVI,WMV,JPEG
Resulution: 1920*1080 Working Temperature:: 0-50℃
Material: Metal Case + Toughened Glass I/O Controller: USB, HDMI, LAN, VGA
High Light:

3d hologram display

,

holographic showcase

Dual Screen 22 Inch 3D Hologram Box Free Standing USB / VGA Output Port





Key Features:

A+ LCD panel
FHD 1920x1080
Response time: 5ms
7*24 working uninterrupted
Multi-language
Solid cold rolled aluminum-alloy frame,
Anti-glaring tempered glass,
Locks and Keys

Options:
Player Alone / Network
Android / X86(Windows)
WIFI/3G/4G/LAN/HDMI









PANEL ARGUMENTS
Model NO
TPK-215SN
Panel Type
A+ TFT-LCD Panel 21.5 inch
View Area
476.6x268.1 mm (H*V)
Show Ratio
16:9 (H:V)
Backlight
WLED
Resolution
1920×1080
Displaying Color
16.7M
Brightness
≥250 nits
Contrast Ratio
≥3000:1
Visual Angle
178°(H) / 178°(V)
Response Time
≤5ms
Life Expectance
≥60000 Hours









PRODUCT HARDWARE
Enclosure
Metal case + aluminum-alloy frame
Panel Protection
tempered AG glass (4mm Morse level 7)
Speaker
2*8W Stereo
I/O Interface
USB/HDMI/VGA/MIC/WiFi/LAN/Power Port
Color
Black, Silver, Golden, White (Customized)
Unit Dimension
To be confirmed due to customization (mm)
N.W
To be confirmed due to customization (KG)
Working Temp
0℃ to 50℃
Storage Temp
-20℃ to 60℃
Humidness
5% to 95%
Certificates
ISO9001/CCC/CE/FCC/RoHS
Accessories
Remote Control, AC Power Cord, Key, Rack, Instruction, Approval Certificate, Warranty Card


FUNCTION DETAILS
Play mode
Circulation, timing, inter-cutting etc.
Network
Ethernet, wifi, 3G, 4G is optional
Video format
wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc.
Picture format
BMP, JPEG, PNG, GIF etc
Networking protocol
TCP IP/PPPOE/ICMP/DHCP/DNS/FTP/HTTP

POWER
Power Voltage
AC100V-240V (50/60Hz)
Consumption
≤65W (according to Motherboard and CPU option.)
Standby
≤3W

Android Configurations.

It can be customized with a certain configurations. Android version can be updated.

Operating System
Android 5.1
Chip
Rockchip RK3288
CPU
Quad core ARM Cortex A17(Max 1.7 GHz)
GPU
Quad core ARM Mail-764

PC options for OS with Windows.

(It can be customized or named with a certain configurations if necessary.)

Option1
C1037U 1.8GHz / Memory: ≥4GB / HardDrive:128GB
Option2(=Laptop)
i3-3217U 1.8GHz / Memory: ≥4GB / HardDrive:128GB
Option3(Standard)
i3-4150 3.5GHz / Memory: ≥4GB / HardDrive:500GB
Option4(=Laptop)
i5-3347U 2.6GHz / Memory: ≥4GB / HardDrive:128GB
Option5
i5-4460 3.2GHz / Memory: ≥4GB / HardDrive:500GB
Option6
i7-4790 3.6GHz / Memory: ≥4GB / HardDrive:500GB





Dual Screen 22 Inch 3D Hologram Box Free Standing USB / VGA Output Port 0
