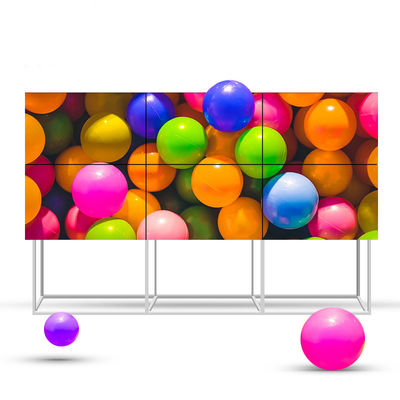

Cinema 4 Screen Super Narrow Bezel Video Wall 2X2 WIFI LAN 3G 4G Optional

Cinema 4 Screen Super Narrow Bezel Video Wall 2X2 WIFI LAN 3G 4G Optional

  • Cinema 4 Screen Super Narrow Bezel Video Wall 2X2 WIFI LAN 3G 4G Optional
  • Cinema 4 Screen Super Narrow Bezel Video Wall 2X2 WIFI LAN 3G 4G Optional
  • Cinema 4 Screen Super Narrow Bezel Video Wall 2X2 WIFI LAN 3G 4G Optional
  • Cinema 4 Screen Super Narrow Bezel Video Wall 2X2 WIFI LAN 3G 4G Optional
Cinema 4 Screen Super Narrow Bezel Video Wall 2X2 WIFI LAN 3G 4G Optional
Product Details:
Place of Origin: China
Brand Name: TOPADKIOSK/OEM
Certification: CE,FCC.ROSH
Model Number: TPK-DID5501
Payment & Shipping Terms:
Minimum Order Quantity: 1PC
Price: Negotiate
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 3-5 working days after receipt of your payment
Payment Terms: , MoneyGram, T/T
Supply Ability: 3000PC per month
Contact Now
Detailed Product Description
Type: TFT Max Resolution: 3840x2160
Weight: 25kg Dimension: 1075.58mm(W) X605.8mm
Ports Connect: HDMI/DVI/VGA/DP Power Consumption: 198W
Service Life: 50000 Hours Network: WIFI / LAN / 3G / 4G Optional
Brightness: 500cd /700cd /m2 Panel Size: 46/47/49/55inch
High Light:

super narrow bezel video wall

,

ultra narrow bezel video wall

Cinema 4 Screen Super Narrow Bezel Video Wall 2X2 WIFI LAN 3G 4G Optional





Description of LCD Video Wall



1 Industrial original imported panel,
2 LED backlight,
3 HD screen,
4 Visual angle:178(H)/178(V)
5 Narrow bezel,
6 High brightness,
7 Function:Single screen display,full screen display,Combination display,Image Cruise,Superimposed images,Image Drag Function
8 Digital information display with LCD-DID Industrial HD&High-brightness narrow edge LCD.
9 Built-in splicing module, Support splice function,support Creating one window(PIP) across the screen,roaming service,scaling,PIP Support matrix joint control.
10 Unique DNX motion supplement image processing technology, Dynamic image without motion
11 Trail,Splicing image processing RS-232(RJ-45)loop-circuit input/output.,Input by remote control with wire,mobile receiver head.



Specification

Specification/Model TPK-DID5501
Panel size 55Inch
Aspect Ratio 16:9
High Resolution 1920*1080
Pixel Pitch 0.63(H)*0.63(V)
Number of Color 16.7M
Brightness 500cd/m² 700cd/m²
Contrast Ratio 4000:1
Responsive Time 8ms
Panel Life Above 50000 hours
Certificate FCC/CE/ROHS/ISO
Warranty 1 year
Visual Angle Horizontal 178/Vertical178
Power Supply Input:AC110-220V-50/60Hz
Size of Shell Frame(±1mm) Single side one the right and the
left:11mm/single
side on top and bottom:11mm
Panel Display Area (Width)1209.6mm*(Height)680.4mm
Working Humidity 10~80%
Working Temp. 0~40°C
Input Port 2*BNC, 1*VGA, 1*DVI,1*,1*RS232
VGA/DVI Resolution Ratio 640*480,800*600,1024*768,1280*1024,
1600*1200,1920*1080
Bezel 3.5mm
Output Port 2*BNC,2*RS232



Video wall Controller(Built-In each Screen)
Input CVBS 2*BNC port,support PAL/NTSC all formats
DVI 1*DVI port,support SVGA/SGA/WUXGA
VGA 1*DSUB 15 port,suppoer SVGH/XGA/WXGA
  1 port, support SVGA/XGA/WUXGA
USB For upgrade
RS232 1 port
Output LVDS Support signal or double LVDS output, and WUXGA (1920*1080) display
CVBS 2*BNC Port,support PAL/NTSC all formats
RS232 2
Engineering software Multi-screen control software
Power Power supply AC100-240V 50-60Hz
Maximum Power consumption 220W
Standby Power consumption <0.5W
Certificates CCC,CE, FCC&Rohs
Temperature Working Temp 0°-40°
Working Humidity 10%-80%
Operate mode IR control
Menu key
Standard RS232 port(provide free control software)
Working temp 0°-70°
Working Humidity 5%-95%
AC Voltage power supply 100-240V/50-60Hz
Power consumption <220W
Weight 23.5kg





Advantages of LCD Video Wall

Reliable quality and low maintenance: Less thermal diffusivity makes the components and parts more stable.

♦ High Definition and clear image: High brightness and contrast make colors brilliant and bright, as well as stable and clear image.

Wide viewing angle: DID LCD panel makes the viewing angle up to 180°.

Low power consumption and low heat radiation

Long service life lowers the cost of usage and maintenance

Innovative and advanced: 42” to 60” Ultra thin bezel LCD video wall, the thinnest bezel up to 1.8mm

Ultathin and lightweighted: The ultra thin and lightweighted design makes it easy to transport and install.

Economical and practical: High performance and high quality make it cost less.



Cinema 4 Screen Super Narrow Bezel Video Wall 2X2 WIFI LAN 3G 4G Optional 0

Cinema 4 Screen Super Narrow Bezel Video Wall 2X2 WIFI LAN 3G 4G Optional 1



Cinema 4 Screen Super Narrow Bezel Video Wall 2X2 WIFI LAN 3G 4G Optional 2



Cinema 4 Screen Super Narrow Bezel Video Wall 2X2 WIFI LAN 3G 4G Optional 3
