Shenzhen TopAdkiosk Technology Co., Ltd.
Providing innovation and cost-effective digital signage solutions
Sales & Support:
 |
| Place of Origin: | China |
| Brand Name: | TOPADKIOSK/OEM |
| Certification: | CE,FCC.ROSH |
| Model Number: | TPK-DID5501 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Packed in carton firstly,and then reinforced with wooden case for outer packing |
| Delivery Time: | 3-5 working days after receipt of your payment |
| Payment Terms: | , MoneyGram, T/T |
| Supply Ability: | 3000PC per month |
| Type: | TFT | Max Resolution: | 3840x2160 |
|---|---|---|---|
| Weight: | 25kg | Dimension: | 1075.58mm(W) X605.8mm |
| Ports Connect: | HDMI/DVI/VGA/DP | Power Consumption: | 198W |
| Bezel Width: | 1.8mm | Signal Support: | DP/DVI/HDMI/VGA/AV/YP |
| HS CODE: | 8521909090 | Panel Dimensions: | 1213.4(L)*684.2 (H)*133(W) |
| High Light: | ultra thin bezel video wall,super narrow bezel video wall |
||

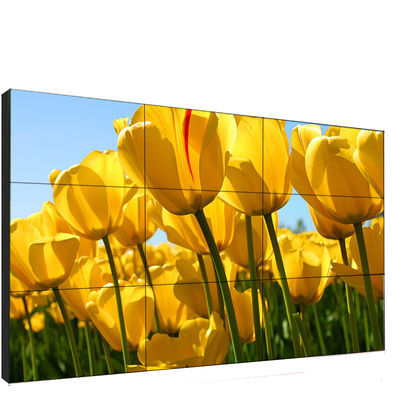

55 Inch Narrow Bezel Lcd Video Wall 1.8Mm Video Wall Controller HDMI DVI VGA
Description of LCD Video Wall
1 Industrial original imported panel,
2 LED backlight,
3 HD screen,
4 Visual angle:178(H)/178(V)
5 Narrow bezel,
6 High brightness,
7 Function:Single screen display,full screen display,Combination display,Image Cruise,Superimposed images,Image Drag Function
8 Digital information display with LCD-DID Industrial HD&High-brightness narrow edge LCD.
9 Built-in splicing module, Support splice function,support Creating one window(PIP) across the screen,roaming service,scaling,PIP Support matrix joint control.
10 Unique DNX motion supplement image processing technology, Dynamic image without motion
11 Trail,Splicing image processing RS-232(RJ-45)loop-circuit input/output.,Input by remote control with wire,mobile receiver head.
Specification
| Specification/Model | TPK-DID5501 |
| Panel size | 55Inch |
| Aspect Ratio | 16:9 |
| High Resolution | 1920*1080 |
| Pixel Pitch | 0.63(H)*0.63(V) |
| Number of Color | 16.7M |
| Brightness | 500cd/m² 700cd/m² |
| Contrast Ratio | 4000:1 |
| Responsive Time | 8ms |
| Panel Life | Above 50000 hours |
| Certificate | FCC/CE/ROHS/ISO |
| Warranty | 1 year |
| Visual Angle | Horizontal 178/Vertical178 |
| Power Supply | Input:AC110-220V-50/60Hz |
| Size of Shell Frame(±1mm) | Single side one the right and the left:11mm/single side on top and bottom:11mm |
| Panel Display Area | (Width)1209.6mm*(Height)680.4mm |
| Working Humidity | 10~80% |
| Working Temp. | 0~40°C |
| Input Port | 2*BNC, 1*VGA, 1*DVI,1*,1*RS232 |
| VGA/DVI Resolution Ratio | 640*480,800*600,1024*768,1280*1024, 1600*1200,1920*1080 |
| Bezel | 3.5mm |
| Output Port | 2*BNC,2*RS232 |
| Video wall Controller(Built-In each Screen) | ||
| Input | CVBS | 2*BNC port,support PAL/NTSC all formats |
| DVI | 1*DVI port,support SVGA/SGA/WUXGA | |
| VGA | 1*DSUB 15 port,suppoer SVGH/XGA/WXGA | |
| 1 port, support SVGA/XGA/WUXGA | ||
| USB | For upgrade | |
| RS232 | 1 port | |
| Output | LVDS | Support signal or double LVDS output, and WUXGA (1920*1080) display |
| CVBS | 2*BNC Port,support PAL/NTSC all formats | |
| RS232 | 2 | |
| Engineering software | Multi-screen control software | |
| Power | Power supply | AC100-240V 50-60Hz |
| Maximum Power consumption | 220W | |
| Standby Power consumption | <0.5W | |
| Certificates | CCC,CE, FCC&Rohs | |
| Temperature | Working Temp | 0°-40° |
| Working Humidity | 10%-80% | |
| Operate mode | IR control | |
| Menu key | ||
| Standard RS232 port(provide free control software) | ||
| Working temp | 0°-70° | |
| Working Humidity | 5%-95% | |
| AC Voltage power supply | 100-240V/50-60Hz | |
| Power consumption | <220W | |
| Weight | 23.5kg | |
Application:
1. Public Places: Subway, Airport, Bookshop, Exhibition hall, Gymnasium, Museum, Conference center, Talent market, Lottery center, etc.
2. Entertainment Places: Movie theatre, Fitness center, Vacational village, KTV bar, Internet bar, Beauty salon, Golf course, etc.
3. Financial Institution: Bank, Security/ Fund/ Insurance company, etc.
4. Business Organizations: Supermarket, Shopping malls, Exclusive shop, chain store, 4S shop, Hotel, Restaurant, travel agency, Chemist's shop, etc.
5. Public Service: Hospital, School, Telecom, Post office, etc.
6. Real Estate&Property: Apartment, Villa, Office building, Commercial office buildings, Model houses, Sales offices, the entrance of elevator, etc.
