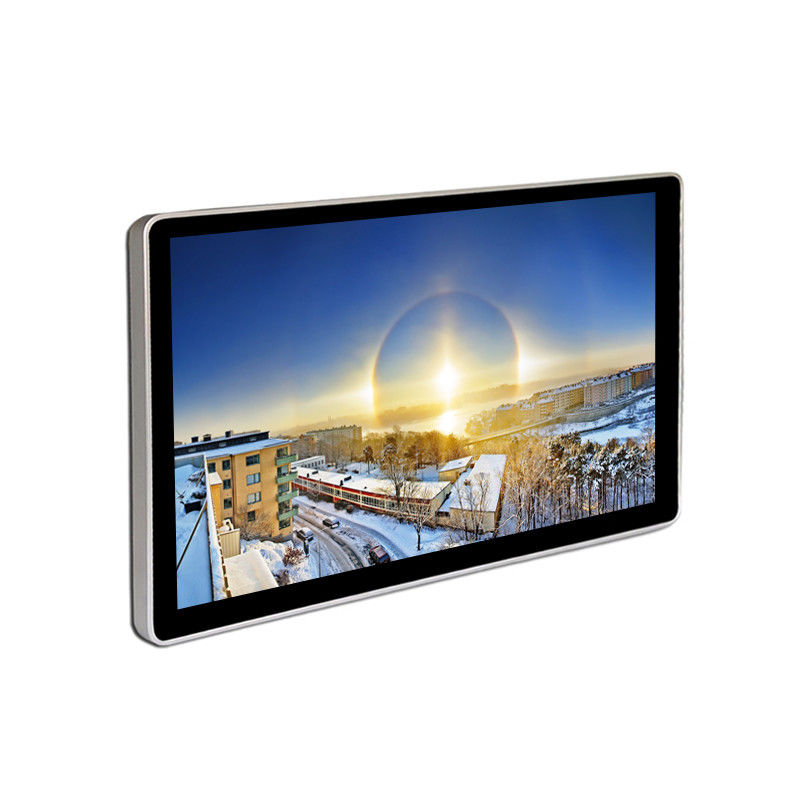

49" Interactive Touch Screen Digital Signage Wall Mounted For Pubic Place

Product Details:

Place of Origin:	CHINA
Brand Name:	TOPADKIOSK/OEM
Certification:	CE, FCC.ROSH
Model Number:	TPK-WT4908

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	negotiate
Packaging Details:	Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time:	10-15days after receipt of your payment
Payment Terms:	, T/T, L/C
Supply Ability:	3000pc per month

Contact Now

Detailed Product Description

Operating System:	Windows 7/8/10 Or Android 5.1	Size:	49inch
Software:	Yes	Input Voltage:	AC100~240V 50 /60 HZ
Material:	2.0mm Cold-roll Steel Sheet	Android OS:	Android 5.1
TFT LCD Screen:	TFT LCD Screen
High Light:	led digital display screens , digital advertising lcd screens

49" Interactive Touch Screen Digital Signage Wall Mounted For Pubic Place

1. Apply the newest 4G digital multimedia professor technologies, enjoy excellent visual effect
2. Ultra-high-fidelity sound, pleasant stereo sound.
3. Ultrathin and ultra-light hardware case, delicate and beautiful appreance.
4. Industrial grade paint technology, smooth and uniform, waterproof and dustproof, anti dust and mill!
5. Verity and complete software, stable and reliable
6. Have a lock, anti-theft functions
7. Widely used in the bus, building and lift room, supermarket, pubic places, train etc.

Panel Size	49 Inch
Display Resolution	1920*1080
Aspect Ratio	16:09
Brightness	350cd/m2
Contrast	3000:1
Color Depth	16.7M
Pixel Pitch	0.2 (H)×0.6(V)mm
Type	TFT
Response Time	5ms
Life Cycle	50000hrs
Viewing Angle	178°(H)/ 178°(V)
Video format	PAL/NTSC
Audio format	DK/I/BG
Image format	JPEG/BMP/TIFF/PNG/GIF
Image resolution	480P/720P/1080P
Menu Language	Chinese,English,customized
Operating Mode	Android
Video Input/Out	AV2/AV1
HDMI	HDMI*2
USB	USB*2
L/R audio input	1 (RCA*2)
L/R audio output	1 (RCA*2)
Power Input	100~240V AC
Power Consumption	≤120W
Working Temperature	0℃~50℃
Working Humidity	10~90%
Storage Temperature	(-20℃)~60℃
Storage Humidity	10~90%
Dimension	113166049mm
Housing	Aluminium
Color	white,black,silver,customized
Installation Method	Wall-Mount/Desktop
Certificates	UL,CE,FCC,3C etc
Touch type	IR & Nano & Capacitive Touch is optional

Android/Wifi system

CPU: Allwinner A83T Cortex-A7 Eight-Core CPU 2GHz/RK3288
GPU: PowerVR SGX544
O/S: Android 4.4.4
RAM: 2GB
NAND FLASH: 8GB FLASH/EMMC
Networking: RJ45
Built-in Wireless 802.11b/g/n,WAPI(Ralink 8188)
USB Wireless Dongle
Interface: USB*2,SD*1,VGA*1,RJ45*1,Audio out*1,SIM port*1
Ports: USB*2,SD*1,VGA*1,RJ45*1,Audio out*1,SIM port*1
OSD Language: Chinese, English, Spanish, Russian, German, French, Arabic, etc.
Support split screen: Any split screen display, multiple window video player, can achieve different window showing different content

Windows/Linux system

Processor: Intel Core i3-3217U @ 1.80GHz /I5 /I7
GPU: Intel HD4000 Graphics
Chipset: Intel Chipset HM65
Memory: DDR3 4GB ,Support up to 8GB
Ethernet: Realtek GBE RJ45,8111E
Audio: Realtek HD Audio,Support Line-in,Line-out,Mic-in,Spdif,Speaker
Display: VGA1,LVDS.
Storage: 128G SSD

IR touch screen

Touch technology: Infrared multi touch technology
Touch model: 6 touch points
Induction object: Finger, pen, any opaque objects
Size of induction: Greater than or equal to 5 mm in diameter
Resolution: 8192*8192
Response time: First point 25ms consecutive points 8ms
Cursor speed: ≥200dots/second
Glass Thickness: 4mm Normal or Anti-glare tempered glass
