Shenzhen TopAdkiosk Technology Co., Ltd.
Providing innovation and cost-effective digital signage solutions
Sales & Support:
 |
| Place of Origin: | China |
| Brand Name: | TOPADKIOSK/OEM |
| Certification: | CE,FCC.ROSH |
| Model Number: | TPK-DID4601 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Packed in carton firstly,and then reinforced with wooden case for outer packing |
| Delivery Time: | 3-5 working days after receipt of your payment |
| Payment Terms: | , MoneyGram, T/T, L/C, D/A, D/P, T/T, , MoneyGram |
| Supply Ability: | 3000PC per month |
| Type: | TFT | Max Resolution: | 3840x2160 |
|---|---|---|---|
| Weight: | 30kg | Viewing Angle: | 178 |
| Pixel Pitch: | 0.4845(H)*0.4845 (V) | Dimension: | 1075.58mm(W) X605.8mm |
| Ports Connect: | HDMI/DVI/VGA/DP | Power Consumption: | 250W |
| Display Area: | 1073.8(H)x604(V) | ||
| High Light: | ultra thin bezel video wall,ultra narrow bezel video wall |
||

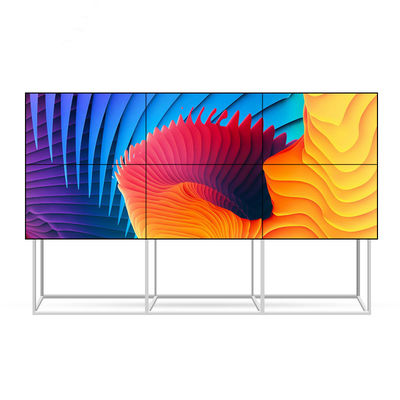

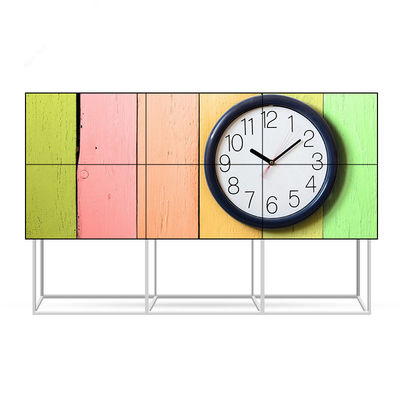

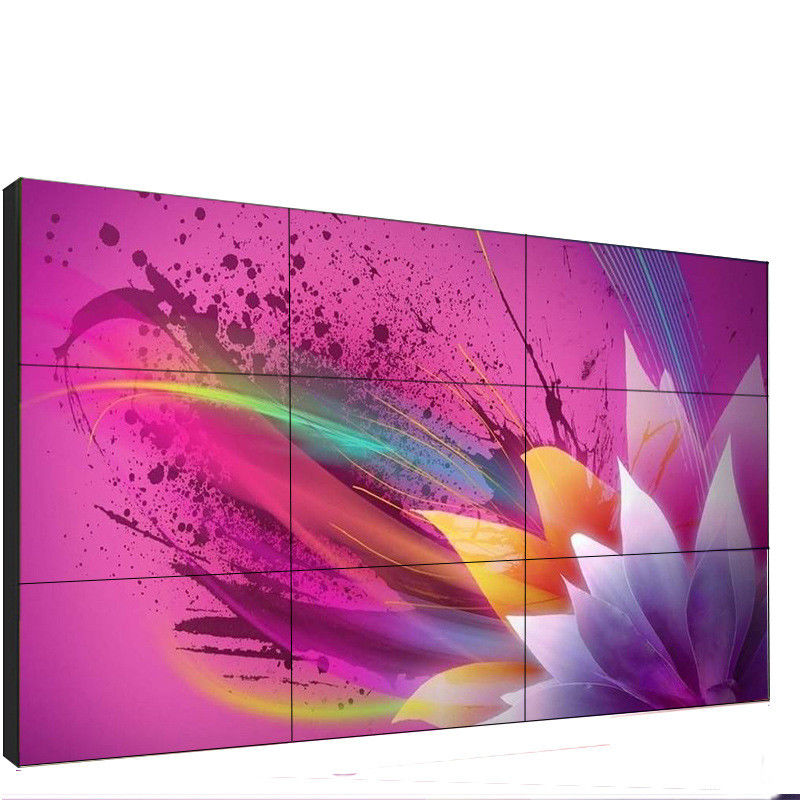

Exterior Super Narrow Bezel LCD Wall Display 46" 4K DID 3.5mm Bezel 3x3 Video Wall
Description of LCD Video Wall
♦ Excellent super narrow bezel design range from 1.8mm, 3.5mm,5.3mm, 5.5mm, 6.5mm, 8mm, 10mm and 20mm bezel width between screens
♦ Built-in 3D noise reduction, making the image clean and outline more vivid
♦ FHD display 1920x1080
♦ LED backlit technology brings you perfect visual effect
♦ 4K input supported (Option)
♦ Built-in speakers and remote control supported
♦ Available sizes: 42" , 46" , 47" , 49" , 55"
| Specifications | |
| Model No. | TPK-DID4601 |
| Panel Size | 46'' With Samsung DID LCD Screen(narrow bezel 3.5mm) |
| Aspect Ratio | 16:09 |
| Max Resolution Support | 3840x2160 |
| Color | 8Bit,16.7M |
| Brightness (nits) | 500cd/m2 |
| Contrast | 3000:1 |
| Visual Angle (H/V) | 178 |
| Response Time | <=6ms |
| Life(hrs) | >60,000(hrs) |
| Input and output | |
| DVI | 1 |
| With HDMI interface | 1 |
| VGA | 1 |
| YPbPr | 1(BNCx3) |
| S-video | 1(BNCx2) |
| Composite Video Input/(AV) | 2(BNCx2) |
| Composite Video Output | 2(BNCx2) |
| Control signal input and loop out | RS232(RJ45-8) |
| Split Screen | Support Picture in Picture(PIP/POP) |
| Power | |
| Power Supply | AC100V~240V |
| Maximum Power Consumption | 250W |
| Standby Power Consumption | <=3W |
| Temperature | |
| Working Temperature | 0~50 |
| Working Humidity | 20%-80% |
Features:
frames<=3.5mm only(two frames totally)
Advantages of LCD Video Wall
♦ Reliable quality and low maintenance: Less thermal diffusivity makes the components and parts more stable.
♦ High Definition and clear image: High brightness and contrast make colors brilliant and bright, as well as stable and clear image.
♦ Wide viewing angle: DID LCD panel makes the viewing angle up to 180°.
♦ Low power consumption and low heat radiation
♦ Long service life lowers the cost of usage and maintenance
♦ Innovative and advanced: 42” to 60” Ultra thin bezel LCD video wall, the thinnest bezel up to 1.8mm
♦ Ultathin and lightweighted: The ultra thin and lightweighted design makes it easy to transport and install.
♦ Economical and practical: High performance and high quality make it cost less.
