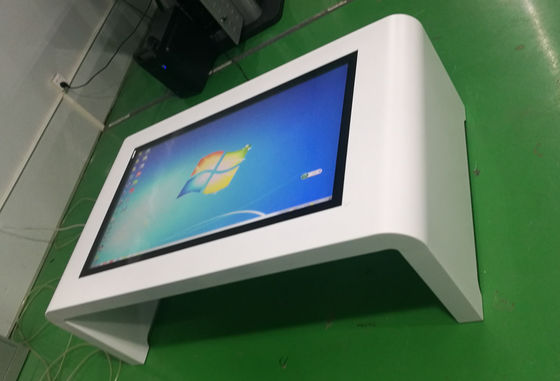

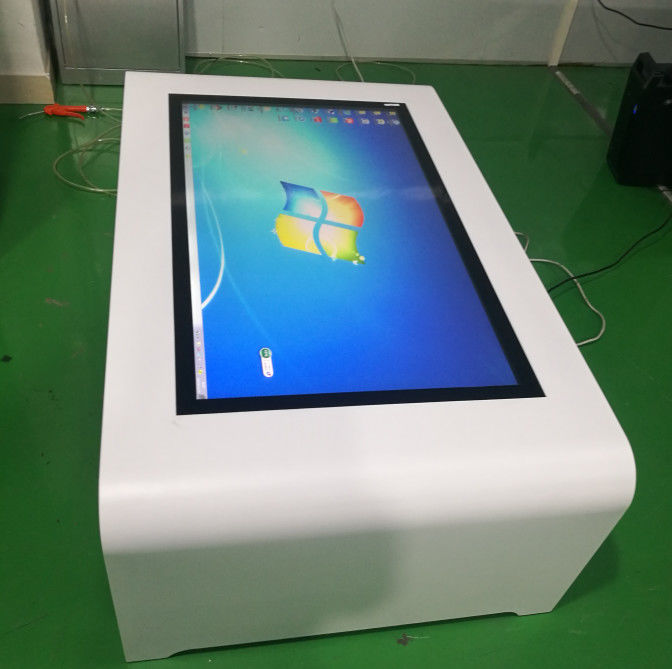

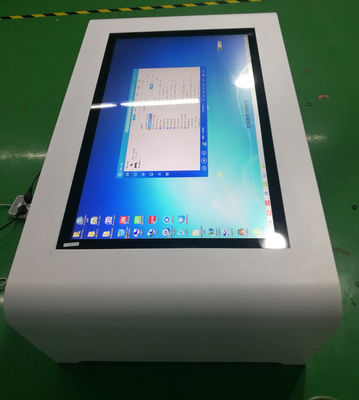

350cd/m2 1920x1080 43" Capacitive Touch Interactive Table

350cd/m2 1920x1080 43" Capacitive Touch Interactive Table

  • 350cd/m2 1920x1080 43" Capacitive Touch Interactive Table
  • 350cd/m2 1920x1080 43" Capacitive Touch Interactive Table
  • 350cd/m2 1920x1080 43" Capacitive Touch Interactive Table
350cd/m2 1920x1080 43" Capacitive Touch Interactive Table
Product Details:
Place of Origin: CHINA
Brand Name: TOPADKIOSK /OEM
Certification: CE&Rohs&FCC
Model Number: TPK-TT80
Payment & Shipping Terms:
Minimum Order Quantity: Negotiate
Price: Negotiate
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 10-15days after receipt of your payment
Payment Terms: T/T, , MoneyGram
Contact Now
Detailed Product Description
Application: Indoor Resolution: 1920*1080
Touch Screen: Infared 10 Touch Points/Capacitive Touch Screen Brightness: 350cd/m2
Warranty: One Year Color: 8bit,16.7M
Interface: USB, VGA, HDMI
High Light:

43" Capacitive Touch Interactive Table

,

1920x1080 Capacitive Touch Interactive Table

,

350cd/m2 Interactive Touch Table

43inch Capacitive Touch Table Interactive Table for Hotel with Windows OS I7 CPU



Product feature
1: Cloud Platform controlling, easy to handle anytime anywhere
2: Intelligent screen splitting, supports multi-content and multi-format simultaneously playing
3: TV commercials and other programs broadcasting
4: Real-time viewing of terminal processing situation.
5: Multimedia good performance, shocking effect with sound surrounding
6: Achieves distributed area management and load balancing technology, the terminals number is limitless.
7: Provides solution such as remote releasing system, outdoor touch screen etc.

Panel Size
43”
49”
55”
Resolution
1920 x 1080 1080P
1920 x 1080 1080P
1920 x 1080 1080P
Visual angle L/R
178°/178°
178°/178°
178°/178°
Viewing Area
930.24(H)x523.26(V)mm
1073.78(H)×604(V)mm
1073.78(H)×604(V)mm
Brightness
400 cd/m2
400 cd/m2
400 cd/m2
Contrast ratio
4000:1
4000:1
4000:1
Color
16.7M
16.7M
16.7M
Power
AC 100V-240V, 50/60 Hz
AC 100V-240V, 50/60 Hz
AC 100V-240V, 50/60 Hz
Power Consumption
175W
175W
175W
System of signal
PAL/NTSC Auto Switch
PAL/NTSC Auto Switch
PAL/NTSC Auto Switch
Operation System
Operation System
Windows 7/8/10
Android 4.4(up to 5.1)
Main board
MSI B751A-E33
Rockchip RK3288
RAM
4GB
2GB
Momery/ROM
WD500GB, 5400 Revolution
8GB eMMC, TF/USB extended memory
CPU
Intel core2 i3 /i5 /i7
Quad Core 1.8GHz
Graphic
Intel HD Graphics 2500
Quad Core ARM Mail-764
Signal interface
HDMIx1 VGAx1 DVIx1 USBx4 AVx3
HDMIx1 VGAx1 USBx2
Internet interface
RJ45x1 Ethernetx1,10/100M, Wifi ×1,WIFI(802.11bgn) 3G/4G Slot
IR Touch Screen
Touch screen
Multi-touch (6-32) touch Point Optional
Touch accuracy
Touch area over 90% ±2mm
Interpolation resolution
32767 x 32767
Response Time
<20ms
Physical Hardness
Moh’s scale 7
Smallest touch object
5mm
Input Mode
Finger, Touch pen or light proof objects



Android/Wifi system



CPU: Allwinner A83T Cortex-A7 Eight-Core CPU 2GHz/RK3288

GPU: PowerVR SGX544
O/S: Android 4.4.4
RAM: 2GB
NAND FLASH: 8GB FLASH/EMMC
Networking: RJ45
Built-in Wireless 802.11b/g/n,WAPI(Ralink 8188)

USB Wireless Dongle
Interface: USB*2,SD*1,VGA*1,RJ45*1,Audio out*1,SIM port*1

Ports: USB*2,SD*1,VGA*1,RJ45*1,Audio out*1,SIM port*1
OSD Language: Chinese, English, Spanish, Russian, German, French, Arabic, etc.
Support split screen: Any split screen display, multiple window video player, can achieve different window showing different content



350cd/m2 1920x1080 43" Capacitive Touch Interactive Table 0



Windows/Linux system



Processor: Intel Core i3-3217U @ 1.80GHz /I5 /I7

GPU: Intel HD4000 Graphics
Chipset: Intel Chipset HM65
Memory: DDR3 4GB ,Support up to 8GB
Ethernet: Realtek GBE RJ45,8111E
Audio: Realtek HD Audio,Support Line-in,Line-out,Mic-in,Spdif,Speaker
Display: VGA1,LVDS.
Storage: 128G SSD

IR touch screen



Touch technology: Infrared multi touch technology

Touch model: 6 touch points
Induction object: Finger, pen, any opaque objects
Size of induction: Greater than or equal to 5 mm in diameter
Resolution: 8192*8192
Response time: First point 25ms consecutive points 8ms
Cursor speed: ≥200dots/second
Glass Thickness: 4mm Normal or Anti-glare tempered glass



350cd/m2 1920x1080 43" Capacitive Touch Interactive Table 1
