Payment & Shipping Terms:
|Double Face:||Yes||Max Resolution:||1920*1080|
|Input Voltage:||AC100V-240V (50HZ-60HZ)||Brightness:||400 Cd/m*2|
Ultrathin Moveable Digital Signage Poster Monitor,
Double Side Lcd Screen Kiosk,
55in Indoor QLED Floorstand Digital Signage
Indoor floorstand ultrathin moveable with wheels digital signage poster monitor Android double side lcd Screen kiosk

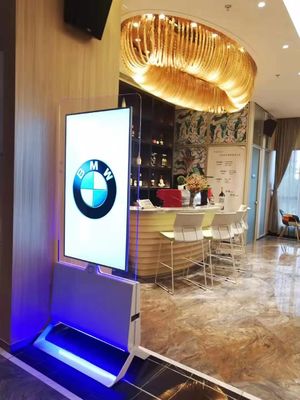

55"Indoor QLED floorstand ultrathin moveable digital signage poster monitor Android double side lcd Screen kiosk
1. All our products can be with the following four versions:
***USB version ad player: update advertisement by USB (Single Version)
***Network version advertising player: update advertisement through internet, support both Android OS and UCOS OS (Network Version)
***PC version kiosk(touch screen optional): its function is the same as computer, support OS of Android,Windows7,windows8,windows XP,Linux,Apple etc. (Built-in PC Version,touch screen optional)
***Andorid OS4.4.4 kiosk(touch screen optional): kiosks using Android OS system.
2. Lead time
For hot sale models, we usually have 2-10 units in stock, and they could be delivered after payment been received
For our standard products, 15to 25 working days, depends on the quantity.
For developing customized products, 25-30 days (depends on complexity of customers' requirements and quantity)
OS: Android 5.1 (A20)
|Board configuration||CPU dual core ARM Cortex A9 1.5 GHz(max1.6GHz), Motherboard M158, GPU quad coreARM Mali-400 MP, HYNIX/SAMSUNG DDR3 1Gbyte, HYNIX/SAMSUNG NAND FLASH8GB (Scalable TF/USB)|
|Decoding resolution||Perfect support 1080P Full HD|
|Programming||Perfect support for video / picture / caption / logo / Date Time Day / weather, etc. regional free split-screen combinations; support background images|
|Play Mode||Receiving media content over the network, stored in the local loop after, commercials, broadcast regularly, gaskets playback;
U disk playback.
|Intelligent Management||B / S architecture, GTV digital signage release management system: a custom template; timed release program, the program cycle play, schedule broadcast emergency announcements, gaskets and other players scheduled to play, MD5 two-way encryption, multi-level approval; terminal group management, real-time monitoring, remote control, timer switch, time to download, flow control; access control; logging and statistics functions
C / S architecture, ADPE / EzPoster programming software: programming; schedule; Export card; two-way encryption; terminal timer switch and other functions
|Media Format||Supports MPEG1, MPEG2, MPEG4, H.264, WMV, MKV, TS, flv and other mainstream video formats; supports MP3 and other audio formats; Support JPG, JPEG, BMP, PNG, GIF and other image formats|
|Video input interface||VGA×1
|Video output interface||X 1,can directly drive 50 / 60Hz LCD, LVDS 30 core 2.0mm double needle|
|Audio input interface||X 1, linear input, 3.5MM headphone jack|
|Audio output interface||X 2,CLASS-D stereo amplifier output can directly drive 2 x 10W / 8Ω speakers, 2 core 2.0mm jack|
|Ethernet Interface||X 1,10 / 100M Ethernet|
|WiFi interface||X 1,WIFI(150Mbps)|
|3G module interface||PCIE slot (supporting a phone deck) x 1
USB interface x 1
|USB2.0 interface||USB OTG x 1
USB HOST x 1
|Backlight interface||X 1, 6 core 2.0mm jack|
|Fan connector||X 2 , 2 core 2.0mm jack|
|Infrared interface||X 1, 5 core 2.0mm jack, including red and green LED|
|Speaker Output||Left channel x 1; right channel x 1|
|Camera Input||X 1 , 30 core 2.0mm double needle|
|Function expansion port||Serial × 1
SPI port × 1
Camera input × 1
USB touch screen interface × 1
|Serial ports||X 1,7 white core 2.0mm jack|
|SD card holder||X1|
|RTC Real-Time Clock||Time synchronization|
|Watchdog reset||Using an internal watchdog, abnormal automatic recovery|
|External IR input||NEC format support dedicated remote control|
|Power Input||Switching power supply (STB, 5VSB, 5V, 12V), 10 core 2.00mm|
|1.Application fields:public places ,for example,shopping mall, restaurant,airport, square, commercial buidings,etc.|
|2. Outer shell is made of extra good quality metal material and tempered glass.|
|3.This machine is of android OS design, which could be connected to internet,and supports remote office cotrol .|
|4.Remotely report system utilization and memory usage.|
|5.Control, monitor and design screen layouts remotely by the remote control office.|
|7.Color for metal outer frame is available with Black color, Shinning-silver color, Golden Color, cream-white color; Color Is Optional.|
|8.APPs are available on Google Play and APP Store|
|9.Easy connection to wifi.|
Q: Can we printing our logo on the housing? What is MOQ?
A: Except the opening logo, we can do the silk-printing LOGO in the case. MOQ is 200pcs and free of charge.
Q: What kind of inspection you can provide?
A: Topadkiosk has multiple tests from material purchasing to finished products by different departments, like QA, QC, sales representative, to guarantee all signage players are in perfect condition before shipment. We also accept the inspection by the third party you appointed.
Q: What is your guarantee period?
A: Topadkiosk provides 1 (one) year quality guarantee for the products from your purchase date, except the human damage and force majeure factor. For a better maintenance, be sure that the players are using under normal circumstances (not more than 16 hours daily).
During the guarantee period, Topadkiosk will send the new replacement for free if it's because of hardware problem after we confirm, and cover the shipment fee for the replacement delivery, the buyer just need to cooperate to send the damage one back to our factory.
For the problem advertising machine, it shall be returned to factory for repairing. Topadkiosk will be responsible for expenses arising out of such reparation, including but not limited to the cost of new parts and shipment of products or parts from us to Buyer.
Beyond the guarantee period machine, Topadkiosk will provide maintenance service and technical support (Hardware and other possible charges, Topadkiosk will not bear the responsibility).
Q: Are you manufacturer(factory)?
A: Yes, we're. Also OEM/ODM service available here. It's our pleasure to provide best solution for you.
Q: What's the lead time?
A: Mass order: 7-10 days depending on order quantity.
Sample: 1 day when there is stock,7-10 days for custom design.
Q: What kinds of payment methods does your company accept?
A: Most of methods accepted here, such as T/T, L/C, , Credit Card, MoneyGram,etc.
Q: Do you provide OEM service?
A: Of course. We have a professional team which is having considerable experience in colour decoration cases and manufacturing. Please send us the high definition images, text, logo and how would you like to arrange them. We will try our best to put your ideas into effect and sent you finished files for confirmation.
