Shenzhen TopAdkiosk Technology Co., Ltd.
Providing innovation and cost-effective digital signage solutions
|Place of Origin:||China|
|Minimum Order Quantity:||1PC|
|Packaging Details:||Packed in carton firstly,and then reinforced with wooden case for outer packing|
|Delivery Time:||3-5 working days after receipt of your payment|
|Payment Terms:||, MoneyGram, T/T|
|Supply Ability:||3000PC per month|
|Place Of Origin::||Guangdong, China (Mainland)||Bezel:||0.88mm/1.8mm/0mm|
|Input Voltag:||AC100V~240V 50/60Hz||Panel Dimension::||1209.6*680.4mm|
|Size:||46/47/49/55/65 Inch||Screen To Screen:||0mm/1.8mm/0.88mm|
|Installation:||Rack / Wall-mounted||Brightness:||450cd/m2/700cd/m2|
ultra thin bezel video wall,
super narrow bezel video wall

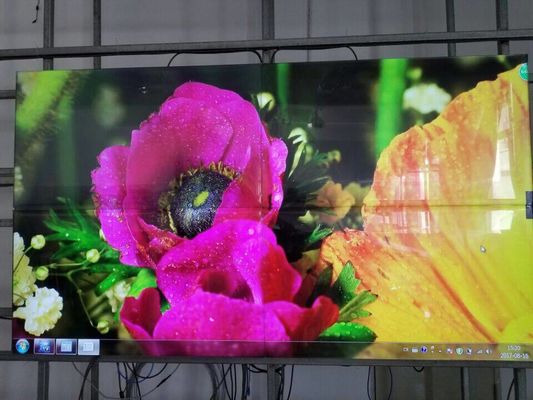

ultra narrow bezel 49 inch 55 Inch interactive touch screen zero bezel Lcd Video Wall
Super Narrow Bezel for Video Walls
The features an ultra-slim 3.5 mm bezel-to-bezel dimension for video wall applications. With built-in video daisy chaining, a single 1080p source can be used on video walls up to 6×6 in size without the need for any additional external video wall controller. By combining a narrow bezel display with the benefits of a high brightness LED backlight, these displays are ideal for indoor environments that receive a high amount of external daylight such as airports, shopping centers and storefront window displays.
|LCD Technology||Samsung TFT-LCD|
|Active Screen Diagonal||55" (1397mm)|
|Active Display Area(WxH)||1209.6x680.4mm|
|Total Bezel Width||5.3mm | 0.208”|
|Viewing Angle||H 178°|V 178°|
|Standby Power Consumption||<3W|
|Maximum Power Consumption||<=250W|
|Power Supply||AC100~240V 50/60 HZ|
|Cooling||Low noise fans|
|Heat Dissipation||819 BTU/h (max)|
|Working Time Capacity||7x24x365hours|
|Application Area||Indoor/Semi Outdoor/Outdoor|
|Working Humidity||85% non-condensing|
|Storage Temperature||-20-60°C | -4-149°F|
|Storage Humidity||85% non-condensing|
|DVI-I DUAL LINK||1|
|Color System Support||PAL/NTSC/SECAM|
|Control Type||IR Remote &Software Control|
|Menu Language||English/Chinese(Multiple Language can be customized)|
♦ Excellent ultra narrow bezel design with just 3.5mm bezel width between screens
♦ Built-in 3D noise reduction, making the image clean and outline more vivid
♦ Full HD display 3840x2160 display
♦ LED backlit technology brings you perfect visual effect
♦ 4K input supported
Advantages of LCD Video Wall
♦ Reliable quality and low maintenance: Less thermal diffusivity makes the components and parts more stable.
♦ High Definition and clear image: High brightness and contrast make colors brilliant and bright, as well as stable and clear image.
♦ Wide viewing angle: DID LCD panel makes the viewing angle up to 180°.
♦ Low power consumption and low heat radiation
♦ Long service life lowers the cost of usage and maintenance
♦ Innovative and advanced: 42” to 60” Ultra thin bezel LCD video wall, the thinnest bezel up to 1.8mm
♦ Ultathin and lightweighted: The ultra thin and lightweighted design makes it easy to transport and install.
♦ Economic al and practical: High performance and high quality make it cost less.
Q:How long is the warranty time for your products?
A: Our officially promised warranty time is one whole year after delivery at best.
Q: When will you make the delivery?
A: We can make the delivery within 3-15 working days or depend on the size and quantities of your order.
Q:what brand of screen are you using?
A:we are using Samsung,LG and AUO screen.
Q: Do you have your own enclosure factory?
A:Yes we do have our own enclosure factory,and we have the best structural Engineer,we hope to provide you with best screen and shape,so OEM is also welcome.
Q:Do you give any discount ?
A: We are Manufacturer, so we are able to give you the best price and best service at the same time.
Q:What payment methods your company accept?
A:We accept most of the payment methods,but mainly accept T/T, WesternUnion,Paypal and MoneyGram
Contact Person: David Guo
