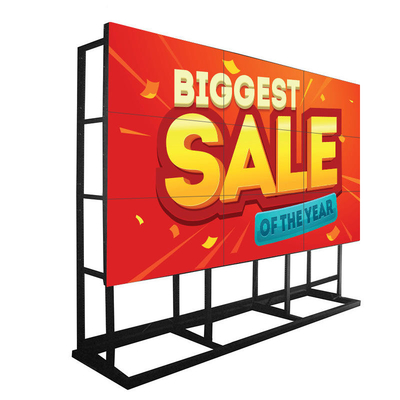

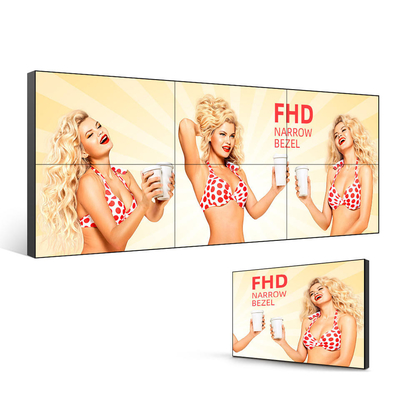

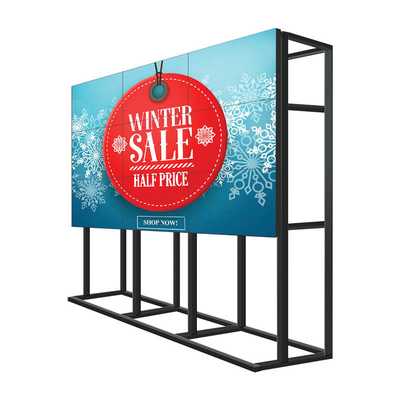

700nits Digital Signage Video Wall

700nits Digital Signage Video Wall
700nits Digital Signage Video Wall

Large Image :  700nits Digital Signage Video Wall

Product Details:

Place of Origin: China
Certification: CE,FCC.ROSH
Model Number: TPK-W4902

Payment & Shipping Terms:

Minimum Order Quantity: 1PC
Price: Negotiate
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 3-5 working days after receipt of your payment
Payment Terms: , MoneyGram, T/T
Supply Ability: 3000PC per month
Detailed Product Description
Item Name: TV Video Wall Bezel: 0.88mm,1.8mm,3.5mm Gap
Color: 8bit-16.7M Weight: 28kg
Application: Indoor / Outdoor Contrast Ratio: 1200:1
Input Voltag: AC100V~240V 50/60Hz Panel Dimension:: 1077.58(L)*607.8(H)*109(D)
Size: 46inch /49inch /55inch / 65inch Panel Information: IPS / Tft
Installation: Rack / Wall-mounted / Cabinet / Embeded Brightness: 500 - 700nits
High Light:

700nits Digital Signage Video Wall


500nits Digital Signage Video Wall


700nits touch screen video wall

Big size 65 inch mounting bracket ip control room ultra narrow bezel lcd video wall


SAMSUNG higher price, best quality
LG: cheaper price, good quality

BOE: Reasonable price, good quality ,too

Splicing  way:
1, Using HDMI splitter, stable quality, HDMI resolution.
2, Using DVI looping connection, HDMI resolution.
3, Using DP looing connection, 4K resolution, need signal INPUT and media resource to be 4k.
4, Can use HDMI matrix for multi-signal input such as PC, camera,etc.
5, Can use large screen processor for signal input, for example: 16 HDMI in, 16 hdmi out, 8 vga in and 8 vga out, etc, can customized. Can have float windows. (EXPENSIVE)

700nits Digital Signage Video Wall 0

700nits Digital Signage Video Wall 1

700nits Digital Signage Video Wall 2


LCD Technology
Original BOE LCD
Active Screen Diagonal
65" (TPK-DV650QUM-NV0)
Panel Dimension(WxH)
1432.6 * 807.6mm
Total Bezel Width
Aspect Ratio
Physical Resolution
Backlight System
1200:1 (type.)
Viewing Angle
Display Colors
Response Time
Standby Power Consumption
Maximum Power Consumption
Power Supply
AC100~240V 50/60 HZ
Low noise fans
Working Time Capacity
Digital signal input
HDMI*1 1920x1080@60Hz backward compatible
Computer signal input
VGA(DB-15) *1 1920x1080@60Hz backward compatible
Digital signal input
DVI(DVI-I)*1 1080P(1920*1080) backward compatible
RS232 input
RS232 output loop
Computer centralized control interface
Working temperature
0ºC~ 50ºC
Storage temperature
-20ºC~ 65ºC
Working Humidity


Excellent ultra narrow bezel design with just 3.5mm bezel width between screens
Built-in 3D noise reduction, making the image clean and outline more vivid
Full HD display 3840x2160 display
LED backlit technology brings you perfect visual effect
4K input supported
Advantages of LCD Video Wall
Reliable quality and low maintenance: Less thermal diffusivity makes the components and parts more stable.
High Definition and clear image: High brightness and contrast make colors brilliant and bright, as well as stable and clear image.
Wide viewing angle: DID LCD panel makes the viewing angle up to 180°.
Low power consumption and low heat radiation
Long service life lowers the cost of usage and maintenance
Innovative and advanced: 42” to 60” Ultra thin bezel LCD video wall, the thinnest bezel up to 1.8mm
Ultathin and lightweighted: The ultra thin and lightweighted design makes it easy to transport and install.
Economic al and practical: High performance and high quality make it cost less.




700nits Digital Signage Video Wall 3

700nits Digital Signage Video Wall 4



700nits Digital Signage Video Wall 5

700nits Digital Signage Video Wall 6




Q:How long is the warranty time for your products?
A: Our officially promised warranty time is one whole year after delivery at best.
Q: When will you make the delivery?
A: We can make the delivery within 3-15 working days or depend on the size and quantities of your order.
Q:what brand of screen are you using?
A:we are using Samsung,LG and AUO screen.
Q: Do you have your own enclosure factory?
A:Yes we do have our own enclosure factory,and we have the best structural Engineer,we hope to provide you with best screen and shape,so OEM is also welcome.
Q:Do you give any discount ?
A: We are Manufacturer, so we are able to give you the best price and best service at the same time.
Q:What payment methods your company accept?
A:We accept most of the payment methods,but mainly accept T/T, WesternUnion,Paypal and MoneyGram
