Shenzhen TopAdkiosk Display Technology Co., Ltd.
Providing innovation and cost-effective digital signage solutions
Sales & Support:
|
Product Details:
Payment & Shipping Terms:
|
| Item Name: | Video Wall Display Screen | Bezel: | 0.88mm,1.8mm,3.5mm Gap |
|---|---|---|---|
| Color: | 16.7M | Gross Weight: | 28kg |
| Application: | Indoor Shop Mail , Control Center | Contrast Ratio: | 1200:1 |
| Input Voltag: | AC100V~240V 50/60Hz | Panel Dimension:: | 1077.58(L)*607.8(H)*109(D) |
| Size: | 46/49/55 / 65 Inch | Panel Information: | IPS / TFT |
| Installation Way: | Rack / Wall-mounted / Cabinet / Embeded | Brightness: | 500 - 700 Cd/m2 |
| High Light: | 4k Digital Signage Video Wall,3x3 Digital Signage Video Wall,3x3 video wall |
||

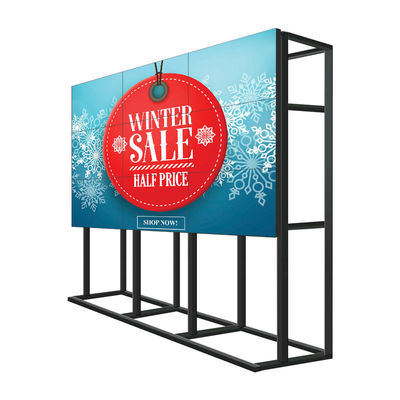

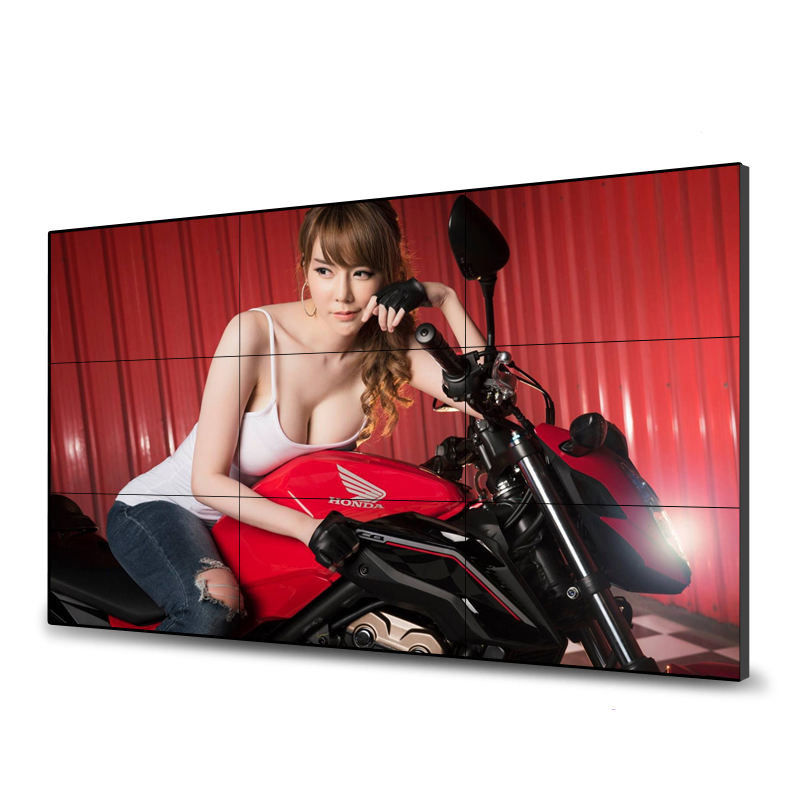

3x3 4k 46/49/55/65 inch indoor advertising lcd video wall display screen
Panel: LG, SAMSUNG,BOE
SAMSUNG higher price, best quality
LG: cheaper price, good quality
100% original A+ Grade LG / Samsung panel
Topadkiosk's professional-grade, narrow-bezel or bezel-less LCD displays are the perfect solution for tiled video wall applications in control rooms, corporate lobbies, experience centers, brand showrooms, broadcast studios and large meeting rooms.
| Panel Specifications | |
| LCD Technology | Samsung TFT-LCD |
| Active Screen Diagonal | 55" (1397mm) |
| Pixel Pitch(WxH) | 0.630x0.630mm |
| Active Display Area(WxH) | 1209.6x680.4mm |
| Panel Dimension(WxHxD) | 1215.3x686.1x64mm |
| Total Bezel Width | 5.3mm | 0.208” |
| Aspect Ratio | 16:9 |
| Physical Resolution | 1920x1080 |
| Backight System | WLED |
| Luminance(nits) | 450cd/sqm |
| Contrast | 3500:1 (typ.) |
| Viewing Angle | H 178°|V 178° |
| Display Colors | 8Bit,16.7M |
| Refresh Rate | 60Hz |
| Response Time | <=6ms |
| Life(hrs) | >60,000(hrs) |
| MTBF | > 100,000h |
| Surface | Anti-glare |
| Standby Power Consumption | <3W |
| Maximum Power Consumption | <=250W |
| Power Supply | AC100~240V 50/60 HZ |
| Cooling | Low noise fans |
| Heat Dissipation | 819 BTU/h (max) |
| Working Time Capacity | 7x24x365hours |
| Application Area | Indoor/Semi Outdoor/Outdoor |
| Working Temperature | 0°C~50°C |
| Working Humidity | 85% non-condensing |
| Storage Temperature | -20-60°C | -4-149°F |
| Storage Humidity | 85% non-condensing |
| Processor | |
| DVI-I DUAL LINK | 1 |
| HDMI | 1 |
| VGA | 1 |
| CVBS IN | 1 |
| CVBS OUT | 1 |
| RS232 IN | 1 |
| RS232 OUT | 2 |
| ISP IN | 1 |
| IR IN | 1 |
| CODING BUTTON | 1 |
| AC IN | AC100-240V |
| Color System Support | PAL/NTSC/SECAM |
| Control Type | IR Remote &Software Control |
| Menu Language | English/Chinese(Multiple Language can be customized) |
Description
♦ Excellent ultra narrow bezel design with just 3.5mm bezel width between screens
♦ Built-in 3D noise reduction, making the image clean and outline more vivid
♦ Full HD display 3840x2160 display
♦ LED backlit technology brings you perfect visual effect
♦ 4K input supported
Advantages of LCD Video Wall
♦ Reliable quality and low maintenance: Less thermal diffusivity makes the components and parts more stable.
♦ High Definition and clear image: High brightness and contrast make colors brilliant and bright, as well as stable and clear image.
♦ Wide viewing angle: DID LCD panel makes the viewing angle up to 180°.
♦ Low power consumption and low heat radiation
♦ Long service life lowers the cost of usage and maintenance
♦ Innovative and advanced: 42” to 60” Ultra thin bezel LCD video wall, the thinnest bezel up to 1.8mm
♦ Ultathin and lightweighted: The ultra thin and lightweighted design makes it easy to transport and install.
♦ Economic al and practical: High performance and high quality make it cost less.
FAQ:
Q:How long is the warranty time for your products?
A: Our officially promised warranty time is one whole year after delivery at best.
Q: When will you make the delivery?
A: We can make the delivery within 3-15 working days or depend on the size and quantities of your order.
Q:what brand of screen are you using?
A:we are using Samsung,LG and AUO screen.
Q: Do you have your own enclosure factory?
A:Yes we do have our own enclosure factory,and we have the best structural Engineer,we hope to provide you with best screen and shape,so OEM is also welcome.
Q:Do you give any discount ?
A: We are Manufacturer, so we are able to give you the best price and best service at the same time.
Q:What payment methods your company accept?
A:We accept most of the payment methods,but mainly accept T/T, WesternUnion,Paypal and MoneyGram
