Shenzhen TopAdkiosk Technology Co., Ltd.
Providing innovation and cost-effective digital signage solutions
|Place of Origin:||China|
|Minimum Order Quantity:||1PC|
|Packaging Details:||Packed in carton firstly,and then reinforced with wooden case for outer packing|
|Delivery Time:||3-5 working days after receipt of your payment|
|Payment Terms:||, MoneyGram, T/T|
|Supply Ability:||3000PC per month|
|Place Of Origin::||Guangdong, China (Mainland)||Bezel:||3.5mm|
|Input Voltag:||AC100V~240V 50/60Hz||Panel Dimension::||1077.58(L)*607.8(H)*109(D)|
|Size:||46/47/49/55 Inch||Screen To Screen:||3.8mm|
|Installation:||Rack / Wall-mounted||Brightness:||450cd/m2|
multi screen video wall,
lcd video wall display

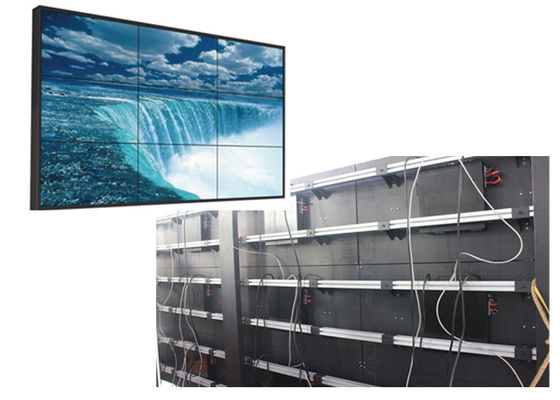

55" Indoor Digital Signage Video Wall LCD Advertising Display Media Player Screen
Super Narrow Bezel for Video Walls
The features an ultra-slim 3.5 mm bezel-to-bezel dimension for video wall applications. With built-in video daisy chaining, a single 1080p source can be used on video walls up to 6×6 in size without the need for any additional external video wall controller. By combining a narrow bezel display with the benefits of a high brightness LED backlight, these displays are ideal for indoor environments that receive a high amount of external daylight such as airports, shopping centers and storefront window displays.
|LCD Technology||Samsung TFT-LCD|
|Active Screen Diagonal||55" (1397mm)|
|Active Display Area(WxH)||1209.6x680.4mm|
|Total Bezel Width||5.3mm | 0.208”|
|Viewing Angle||H 178°|V 178°|
|Standby Power Consumption||<3W|
|Maximum Power Consumption||<=250W|
|Power Supply||AC100~240V 50/60 HZ|
|Cooling||Low noise fans|
|Heat Dissipation||819 BTU/h (max)|
|Working Time Capacity||7x24x365hours|
|Application Area||Indoor/Semi Outdoor/Outdoor|
|Working Humidity||85% non-condensing|
|Storage Temperature||-20-60°C | -4-149°F|
|Storage Humidity||85% non-condensing|
|DVI-I DUAL LINK||1|
|Color System Support||PAL/NTSC/SECAM|
|Control Type||IR Remote &Software Control|
|Menu Language||English/Chinese(Multiple Language can be customized)|
♦ Excellent ultra narrow bezel design with just 3.5mm bezel width between screens
♦ Built-in 3D noise reduction, making the image clean and outline more vivid
♦ Full HD display 3840x2160 display
♦ LED backlit technology brings you perfect visual effect
♦ 4K input supported
Advantages of LCD Video Wall
♦ Reliable quality and low maintenance: Less thermal diffusivity makes the components and parts more stable.
♦ High Definition and clear image: High brightness and contrast make colors brilliant and bright, as well as stable and clear image.
♦ Wide viewing angle: DID LCD panel makes the viewing angle up to 180°.
♦ Low power consumption and low heat radiation
♦ Long service life lowers the cost of usage and maintenance
♦ Innovative and advanced: 42” to 60” Ultra thin bezel LCD video wall, the thinnest bezel up to 1.8mm
♦ Ultathin and lightweighted: The ultra thin and lightweighted design makes it easy to transport and install.
♦ Economic al and practical: High performance and high quality make it cost less.
Q:How long is the warranty time for your products?
A: Our officially promised warranty time is one whole year after delivery at best.
Q: When will you make the delivery?
A: We can make the delivery within 3-15 working days or depend on the size and quantities of your order.
Q:what brand of screen are you using?
A:we are using Samsung,LG and AUO screen.
Q: Do you have your own enclosure factory?
A:Yes we do have our own enclosure factory,and we have the best structural Engineer,we hope to provide you with best screen and shape,so OEM is also welcome.
Q:Do you give any discount ?
A: We are Manufacturer, so we are able to give you the best price and best service at the same time.
Q:What payment methods your company accept?
A:We accept most of the payment methods,but mainly accept T/T, WesternUnion,Paypal and MoneyGram
Contact Person: David Guo
