Place of Origin: | CHINA |
Brand Name: | TOPADKIOSK/OEM |
Certification: | CE&Rohs&FCC |
Model Number: | TPK-T226 |
Minimum Order Quantity: | negotiate |
---|---|
Price: | negotiate |
Packaging Details: | Packed in carton firstly,and then reinforced with wooden case for outer packing |
Delivery Time: | 10-15days after receipt of your payment |
Payment Terms: | T/T, , MoneyGram |
Supply Ability: | 3000pcs per month |
Name: | Self Ordering Kiosk | Material: | Tempered Glass, Metal |
---|---|---|---|
Touchscreen: | 10-point PCAP Touchscreen | QR Code Scanner: | Yes |
Thermal Printer: | Yes | Noted Acceptor: | Yes |
High Light: | customer service kiosk,self service payment kiosk |

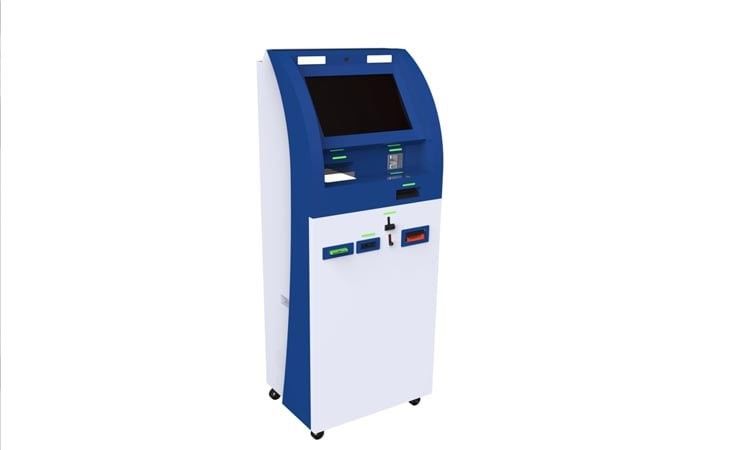

Customized Internet Self Service Kiosk Multi Media Speakers 1920X1080 Resolution
Customized Internet Payment Kiosk With Note Acceptor Thermal Printer And Metal Keyboard
1. Low price
2. Best quality
Customized Internet Payment Kiosk With Note Acceptor Thermal Printer And Metal
Keyboard
Basic Functions:
· Retail/ Ordering/ Payment
· Internet/Information Access
· Ticketing/Card Printing
· Tel / Transport Card Recharging
· Photos,Ring Tones Download
· Product Information Release
· Account inquiry & transfer
Optional Functions:
· Collection pay for utility bills, telephone/ broadband fees
· Foreign currency exchange, bonds and funds business
· Invoices printing, card issuing, multi-media input/output
· Personal authentication, attendance, change
Basic Configurations:
· Powerful Regular PC or Industrial PC
· 15", 17", 19" inch or above TFT LCD monitor
· 15", 17", 19" inch or above SAW/Infrared/Resistance/Capacity touch screen
· Manual insert or motorized card reader for magnetic/IC cards reading
· Cash dispenser,Cash acceptor
· Rugged metal PC keyboard or Metal Encrypted pin pad/EPP
· Thermal/dot matrix Receipt Printer, 60/80/112mm paper width optional, with auto cutter
· Multi-media Speakers
· All Steel made Enclosure(stainless steel,aluminum optional)
· Power costing or automobile paint
· LOGO&Color upon request
Optional Configurations:
Following components can be integrated into ATM payment Kiosk upon specific application requirement.
· Coin Acceptor
· Coin Hopper
· Check Reader
· Passport Reader
· Fingerprint Reader
· Bar-code Scanner
· Card printer
· Card dispenser
· A4 laser/thermal printer
· Wireless connective (WIFI/GSM/GPRS)
· UPS
· Telephone
· Camera
· Motion Sensor
· Air conditioner
Warranty: 2 years for the whole ATM payment kiosk.
Panel Specification: |
|
lcd kiosk: |
Customized Internet Payment Kiosk With Note Acceptor Thermal Printer And Metal Keyboard |
Display area(mm)/mode: |
430.3*735.7mm , 16:9 |
Maximum resolution: |
1920*1080 |
Display color: |
16.7M |
Pixel Pitch(mm): |
0.12125x0.36375 mm |
Brightness (nits): |
400nits |
Contrast: |
1400:1 |
Visual angle: |
178°/178° |
Response: |
6ms |
Touch screen: |
10-point capacitive touch |
PC Specification: |
PC |
Main board: |
J1900 |
CPU: |
Intel ® Core™ i3 Processor/I5/I7 |
RAM: |
DDR3, 4GB |
HDD: |
500G |
Graphics: |
CPU integrated |
Wifi model: |
Yes |
Wired network: |
built-in pc |
Panel life: |
above 50,000hrs |
Operating System: |
Windows 7, Windows 8, Windows XP etc. |
Remrk : i5, i7 series and other configurations are also available . |
|
Physical Specification: |
|
Surface: |
anti-scratched tempered glass |
Color: |
Black/White/customized colors |
Fan: |
2X12V fans |
Audio/Speakers: |
2*10 CM,12W,2500 revolutions per minute |
Ports/Slots: |
Power input | Power switch | PC switch | USB | LAN |
Power supply: |
AC 110–240, 50-60Hz |
Operating temperature: |
0°C ~ +40°C |
Storage temperature: |
-20°C ~ +60°C |
Humidity: |
0% ~ 80% |
Camera: |
Logitech |
Printers: |
ticket printers |
Card Devices: |
RFID reader |
Scanners: |
QR code / Barcode scanner |
