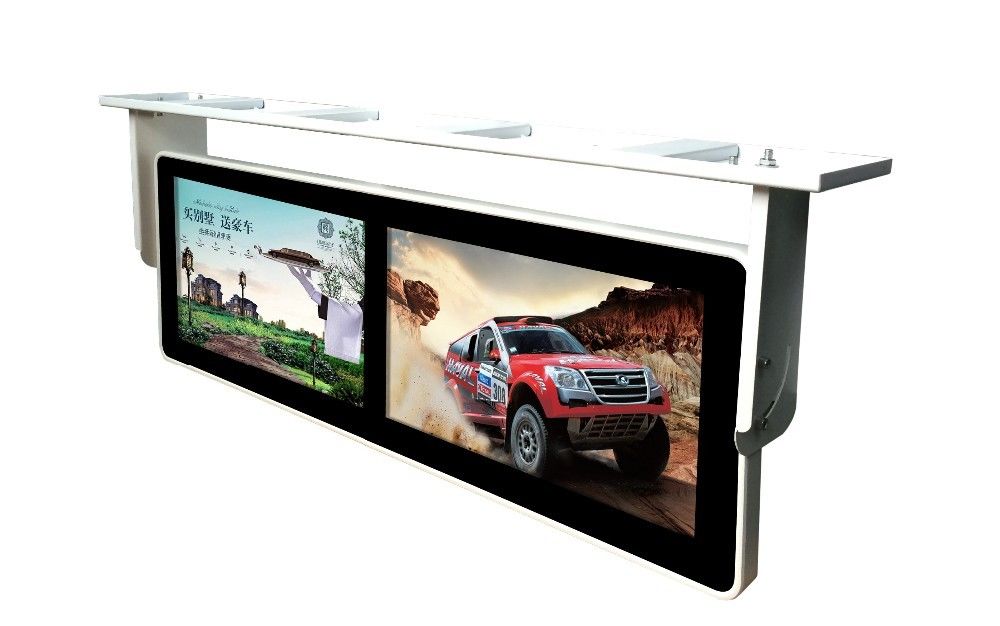

Double Screen Wall Mounted Digital Signage Android USB Waterproof TFT

Product Details:

Place of Origin:	CHINA
Brand Name:	TOPADKIOSK/OEM
Certification:	CE&Rohs&FCC
Model Number:	TPK-W2224

Payment & Shipping Terms:

Minimum Order Quantity:	negotiate
Price:	negotiate
Packaging Details:	Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time:	10-15days after receipt of your payment
Payment Terms:	T/T, , MoneyGram
Supply Ability:	3000pcs per month

Contact Now

Detailed Product Description

Type:	TFT	Max Resolution:	1920*1080
Viewing Angle:	178/178	Application:	Indoor
Contrast Ratio:	2000:1	Nput Voltage:	AC100V-240V (50HZ-60HZ)
Brightness:	400 Cd/㎡
High Light:	wall mount lcd display , wall mounted kiosk

Double Screen Wall Mounted Digital Signage Android USB Waterproof TFT

Features

1. High level of integration. Integrated 2 USB (one exposed) / LVDS driver / audio amplifier in one, simplifying machine design, SD card can be inserted;

2. High definition. Maximum support 1080Pd ecoding. The decoding software and LCD driver software were controlled by two highly integrated CPU. Display format and the optimum decoding parameters set for different resolution LCD display, which can display more accurate.

3. High security. Media files are encrypted to play, without the correct key will not be able to play playback.

4. Full functions. Supporting horizontal and vertical screen play, freedom split-screen, scrolling marquee, timer switch, USB direct playback or import the data into the internal memory playback.

5. Easy management: Personalized playlist creation software, which support up to 100 playlists preset function, easy to manage and control playback ad

Name		Double screen 22 inch android USB lcd waterproof bus stop advertising billboard
Panel parameter	Size	22inch LED screen
	Display area	271.3*479.8MM
	Brand	LG/Samsung
	Resolution	1366*768
	Brightness	350cd/m*2
	Color	16.7M
	Aspect ratio	16:9
	Response time	6.5MS
	Contrast	1000:1
	View angle	178°/168°(H/V)
Mainboard		M113
System Ram		DDR 128MB
System Rom		NAND FLASH 4G
IO connectors		1 x USB host,1 x USB OTG,1 x serial Port,1 x I2C Interface,1 x LVDS Interface ,1 x stereo Audio Out
Storage		USB/SD card
Decoding resolution		MAX 1080P
Audio		built-in HD audio 8(Realtek ALC888) audio system
Video format		MPEG1,MPEG2,MPEG4,H.264,WMV
Audio format		MP3
Photo format		JPEG,BMP,PNG
OS		UCOS
OSD Language		Chinese, English
Play Mode		Supports loop playback, timed playback and other multi-player mode
Environment		Operating Temperature :0°C to 40°C Storage Temperature :-20°C to 60°C Humidity:20%-80% RH at 40°C,
System Power Supply		AC 110V~240V,50/60HZ
Power cord		Yes
TFT panel grade		Imported new panel
Case		Cold rolled steel with powder coating+ toughened glass surface

Optional Functions: Open frame ,Touch screen, Motion sensor, wifi/3G 4G/RJ45 network function, Android/Windows OS etc......
The machine operating temperature: -10~75°C,Storage Temperature:-10~75°C.
Advertising Features:
1.Application fields: Can be widely used in hotels, office buildings, the elevator, the exhibition site, entertainment and leisure facilities, but also in the subway station, train stations, airports, shopping malls, supermarkets, chain stores, specialty stores, convenience stores, promotional counters and other occasions etc......
2.Outer shell is made of extra good quality of metal material, which is painted by powder-spray craft work.
3.Support shockproof and dust proof function.
4.Adopts high transparent tempered glass as protection layer toprevent lcd/led panel being broken or distorted.
5.Locking system for anti-thieves, prevented the storage devices ( SD/CF cards ) and whole machine from being stolen.
6.Support IR Remote controller, user can use remote controller to operate the whole lcd. ( key buttons is optional )
7.switch on automatically loop playback, support files in mixed,pictures,video,music.
8.support MPEG4(avi: div-x,x-vid),MPEG2(dvd,vob,MPG2),MPEG1(vcd,dat,MPG1),JPEG,MP3 format etc...
9. support OTG copy function,USB file automatically COPY to memory card.
10.automatic power-on/off, rolling caption, time display, playlists, vertica/horizontal screen, time and volume functions etc...
11. Image playback: rotate, slide show, background music etc...
12.Support 5 groups of auto power-on/off timer, able to set those 5 groups of time 1 day and 7 days in 1week.
13.Automatically generate play logs, file playback status query
14. support the specified file playing in a specific time spot (option)
