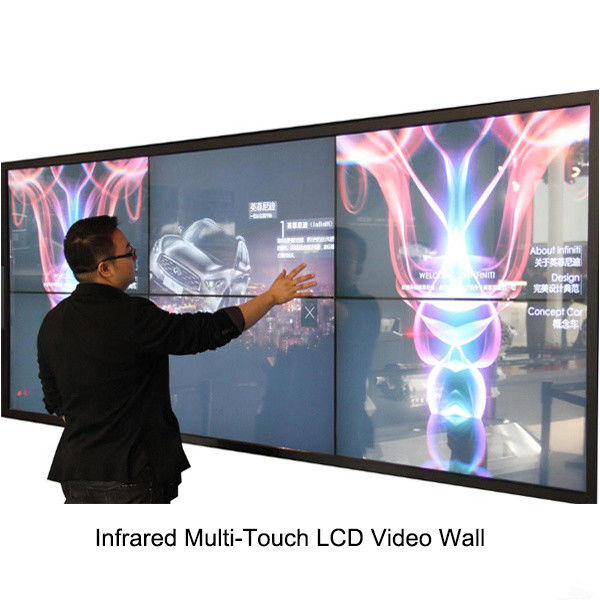

Samsung Narrow Bezel LCD Video Wall 3X3 Touch Screen LCD Wall Display Screen

Samsung Narrow Bezel LCD Video Wall 3X3 Touch Screen LCD Wall Display Screen

  • Samsung Narrow Bezel LCD Video Wall 3X3 Touch Screen LCD Wall Display Screen
  • Samsung Narrow Bezel LCD Video Wall 3X3 Touch Screen LCD Wall Display Screen
Samsung Narrow Bezel LCD Video Wall 3X3 Touch Screen LCD Wall Display Screen
Product Details:
Place of Origin: China
Brand Name: TOPADKIOSK/OEM
Certification: CE,FCC.ROSH
Model Number: TPK-DID4901
Payment & Shipping Terms:
Minimum Order Quantity: 1PC
Price: Negotiate
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 3-5 working days after receipt of your payment
Payment Terms: , MoneyGram, T/T
Supply Ability: 3000PC per month
Contact Now
Detailed Product Description
Type: TFT Max Resolution: 3840x2160
Weight: 30kg Viewing Angle: 178
Pixel Pitch: 0.4845(H)*0.4845 (V) Dimension: 1075.58mm(W) X605.8mm
Ports Connect: HDMI/DVI/VGA/DP Power Consumption: 250W
Display Area: 1073.8(H)x604(V) Touch Screen: Infrared Multi Touch
High Light:

super narrow bezel video wall

,

ultra narrow bezel video wall

Samsung Narrow Bezel LCD Video Wall 3X3 Touch Screen LCD Wall Display Screen

Key Features:

Description of LCD Video Wall
Excellent super narrow bezel design with just 3.5 mm bezel width between screens
Built-in 3D noise reduction, making the image clean and outline more vivid
FHD display 1920x1080
LED backlit technology brings you perfect visual effect
4K input supported (Option)
Built-in speakers and remote control supported
Available sizes: 42",46”, 47”, 49, 55”, 60”

Advantages of LCD Video Wall
Reliable quality and low maintenance: Less thermal diffusivity makes the components and parts more stable.
High Definition and clear image: High brightness and contrast make colors brilliant and bright, as well as stable and clear image.
Wide viewing angle: DID LCD panel makes the viewing angle up to 180°.
Low power consumption and low heat radiation
Long service life lowers the cost of usage and maintenance
Innovative and advanced: 42” to 60” Ultra thin bezel LCD video wall, the thinnest bezel up to 1.8mm
Ultathin and lightweighted: The ultra thin and lightweighted design makes it easy to transport and install.
Economical and practical: High performance and high quality make it cost less.


Specifications


LCD Video Wall
Model No. TPK-DID4901
Panel Size 49" LCD Screen
Backlight Type LED
Display Area 1073.8(H)x604(V)
Aspect Ratio 16:9
Max Resolution 1920X1080
Color 8Bit,16.7M
Brightness (nits) 700cd/m2
Contrast 3500:1
Visual Angle (H/V) 178°/178°
Response Time 8 ms
Life Span >60,000 hours
Bezel width (between screens) 3.5mm
Product Dimension 1022(L)*576.6H)*124.8(D)
Product Weight 25KG
Interfaces (option 1- without 4K input)
Model No. TYL-DP4609
Input 1*DVI
1*HDMI
1*VGA (SVGA / XGA / WXGA)
2*BNC (PAL/NTSC)
1* YPBPR
1*RS232(RJ45)
Output 1*RS232(RJ45)
1*BNC (PAL/NTSC)
Interfaces (option 2- With 4K input)
Model No. TYL-DP4615-H4
Input 1*DVI
1*HDMI
1* DP (Display port)
1*VGA (SVGA / XGA / WXGA)
2*RS232(RJ45)
Output 1* DP (Display port)
2*RS232(RJ45)
Power
Power Supply AC100V~240V 50/60Hz
Maximum Power Consumption 170W
Standby Power Consumption <3W
Working Environment
Working Temperature 0℃~60℃
Working Humidity 5%-95%RH
