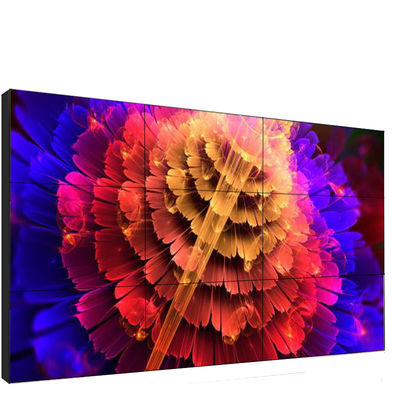

Samsung/LG Ultra narrow bezel 3.5mm1.8mm black metal frame 3x3 2x2 46" 47" 49" 55" inch DID LCD video wall

Samsung/LG Ultra narrow bezel 3.5mm1.8mm black metal frame 3x3 2x2 46" 47" 49" 55" inch DID LCD video wall

    • Samsung/LG Ultra narrow bezel  3.5mm1.8mm black metal frame  3x3 2x2  46" 47" 49" 55" inch DID LCD video wall
    • Samsung/LG Ultra narrow bezel  3.5mm1.8mm black metal frame  3x3 2x2  46" 47" 49" 55" inch DID LCD video wall
    • Samsung/LG Ultra narrow bezel  3.5mm1.8mm black metal frame  3x3 2x2  46" 47" 49" 55" inch DID LCD video wall
    • Samsung/LG Ultra narrow bezel  3.5mm1.8mm black metal frame  3x3 2x2  46" 47" 49" 55" inch DID LCD video wall
  • Samsung/LG Ultra narrow bezel  3.5mm1.8mm black metal frame  3x3 2x2  46" 47" 49" 55" inch DID LCD video wall

    Product Details:

    Place of Origin: China
    Brand Name: TOPADKIOSK/OEM
    Certification: CE,FCC.ROSH
    Model Number: TPK-DID5501

    Payment & Shipping Terms:

    Minimum Order Quantity: 1PC
    Price: Negotiate
    Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
    Delivery Time: 3-5 working days after receipt of your payment
    Payment Terms: Western Union, MoneyGram, T/T
    Supply Ability: 3000PC per month
    Contact Now
    Detailed Product Description
    Type: TFT Max Resolution: 3840x2160
    Weight: 25kg Dimension: 1075.58mm(W) X605.8mm
    Ports Connect: HDMI/DVI/VGA/DP Power Consumption: 198W
    Bezel Width: 3.5mm Network: WIFI / LAN / 3G / 4G Optional
    Brightness: 500cd /700cd /m2 Panel Dimensions: 1213.4(L)*684.2 (H)*133(W)



    Wall Mount Narrow Bezel LCD Video Wall 55 Inch CCTV HD Splicing DID 3.5mm





    Description of LCD Video Wall



    1 Industrial original imported panel,
    2 LED backlight,
    3 HD screen,
    4 Visual angle:178(H)/178(V)
    5 Narrow bezel,
    6 High brightness,
    7 Function:Single screen display,full screen display,Combination display,Image Cruise,Superimposed images,Image Drag Function
    8 Digital information display with LCD-DID Industrial HD&High-brightness narrow edge LCD.
    9 Built-in splicing module, Support splice function,support Creating one window(PIP) across the screen,roaming service,scaling,PIP Support matrix joint control.
    10 Unique DNX motion supplement image processing technology, Dynamic image without motion
    11 Trail,Splicing image processing RS-232(RJ-45)loop-circuit input/output.,Input by remote control with wire,mobile receiver head.



    Specification

    Specification/Model TPK-DID5501
    Panel size 55Inch
    Aspect Ratio 16:9
    High Resolution 1920*1080
    Pixel Pitch 0.63(H)*0.63(V)
    Number of Color 16.7M
    Brightness 500cd/m² 700cd/m²
    Contrast Ratio 4000:1
    Responsive Time 8ms
    Panel Life Above 50000 hours
    Certificate FCC/CE/ROHS/ISO
    Warranty 1 year
    Visual Angle Horizontal 178/Vertical178
    Power Supply Input:AC110-220V-50/60Hz
    Size of Shell Frame(±1mm) Single side one the right and the
    left:11mm/single
    side on top and bottom:11mm
    Panel Display Area (Width)1209.6mm*(Height)680.4mm
    Working Humidity 10~80%
    Working Temp. 0~40°C
    Input Port 2*BNC, 1*VGA, 1*DVI,1*,1*RS232
    VGA/DVI Resolution Ratio 640*480,800*600,1024*768,1280*1024,
    1600*1200,1920*1080
    Bezel 3.5mm
    Output Port 2*BNC,2*RS232



    Video wall Controller(Built-In each Screen)
    Input CVBS 2*BNC port,support PAL/NTSC all formats
    DVI 1*DVI port,support SVGA/SGA/WUXGA
    VGA 1*DSUB 15 port,suppoer SVGH/XGA/WXGA
      1 port, support SVGA/XGA/WUXGA
    USB For upgrade
    RS232 1 port
    Output LVDS Support signal or double LVDS output, and WUXGA (1920*1080) display
    CVBS 2*BNC Port,support PAL/NTSC all formats
    RS232 2
    Engineering software Multi-screen control software
    Power Power supply AC100-240V 50-60Hz
    Maximum Power consumption 220W
    Standby Power consumption <0.5W
    Certificates CCC,CE, FCC&Rohs
    Temperature Working Temp 0°-40°
    Working Humidity 10%-80%
    Operate mode IR control
    Menu key
    Standard RS232 port(provide free control software)
    Working temp 0°-70°
    Working Humidity 5%-95%
    AC Voltage power supply 100-240V/50-60Hz
    Power consumption <220W
    Weight 23.5kg







    Samsung/LG Ultra narrow bezel  3.5mm1.8mm black metal frame  3x3 2x2  46" 47" 49" 55" inch DID LCD video wall

    Samsung/LG Ultra narrow bezel  3.5mm1.8mm black metal frame  3x3 2x2  46" 47" 49" 55" inch DID LCD video wall

    Samsung/LG Ultra narrow bezel  3.5mm1.8mm black metal frame  3x3 2x2  46" 47" 49" 55" inch DID LCD video wall

    Samsung/LG Ultra narrow bezel  3.5mm1.8mm black metal frame  3x3 2x2  46" 47" 49" 55" inch DID LCD video wall

    Samsung/LG Ultra narrow bezel  3.5mm1.8mm black metal frame  3x3 2x2  46" 47" 49" 55" inch DID LCD video wall





    Application:





    1. Public Places: Subway, Airport, Bookshop, Exhibition hall, Gymnasium, Museum, Conference center, Talent market, Lottery center, etc.

    2. Entertainment Places: Movie theatre, Fitness center, Vacational village, KTV bar, Internet bar, Beauty salon, Golf course, etc.

    3. Financial Institution: Bank, Security/ Fund/ Insurance company, etc.

    4. Business Organizations: Supermarket, Shopping malls, Exclusive shop, chain store, 4S shop, Hotel, Restaurant, travel agency, Chemist's shop, etc.

    5. Public Service: Hospital, School, Telecom, Post office, etc.

    6. Real Estate&Property: Apartment, Villa, Office building, Commercial office buildings, Model houses, Sales offices, the entrance of elevator, etc.





    Samsung/LG Ultra narrow bezel  3.5mm1.8mm black metal frame  3x3 2x2  46" 47" 49" 55" inch DID LCD video wall

    Samsung/LG Ultra narrow bezel  3.5mm1.8mm black metal frame  3x3 2x2  46" 47" 49" 55" inch DID LCD video wall





    Samsung/LG Ultra narrow bezel  3.5mm1.8mm black metal frame  3x3 2x2  46" 47" 49" 55" inch DID LCD video wall





    FAQ

    1) Q: How about your product quality?

    A: There are three inspections in our company. from materials, product procedure, spection before shipping.



    2) Q:What payment methods your company accept?

    A: We accept most ofthe payment methods,but mainly accept T/T,L/C,Western Union and MoneyGram.



    3) Q:How long is the warranty time for your products?

    A: Our officially promised warranty time is one whole year after delivery at best.



    4) Q:I haven't done business with you guys before,how can i trust your company?

    A: Our company specialize in digital signage for 8 years,which is longer than most of our fellow suppliers what'smore,we've got quite a lot authority certificates,for example,CE,RoHS,FCC , C-TICK,certificate.SGS I hope those above will be persuasive enough.



    5) Q:what's the shipment terms and delivery time of your company?

    A: Well, they depends on the quantity of your order.As you know ,we need time to manufacture the machines.but mostly ,the shipment time is 3-8 working days after delivery.For Delivery way, for Sample and Bulk order < 100KG, we will kindly suggestExpress and Air freight, when Air freight and Sea shipping for Bulk order >100KG.As for detailed cost, it depends on your final order.



    6) Q:Do you give any discount ?

    A: I'll surely try my best to help you get those by the best price and good service at the same time.



    7) Q:I would like to ask you if it's possible to have my logo on the product.

    A: We hope you know that our company Spectrum perfectly support customized logo service. But, we also hope you know that it's an extraservice,so a little bit extra service fee is needed.
