Place of Origin: | CHINA |
Brand Name: | TOPADKIOSK/OEM |
Certification: | CE&Rohs&FCC |
Model Number: | TPK-S1501 |
Minimum Order Quantity: | Negotiate |
---|---|
Price: | Negotiate |
Packaging Details: | Packed in carton firstly,and then reinforced with wooden case for outer packing |
Delivery Time: | 3000pcs per month |
Payment Terms: | T/T, , MoneyGram |
Type: | TFT | Max Resolution: | 1920*590 |
---|---|---|---|
Response Time: | 8ms | Viewing Angle: | 178/178 |
Input: | USB, SD Card Slot, HDMI | Input Voltage: | AC100~240V 50 /60 HZ |
View Angling: | Left / Right 60°, Up 65°, Down 50° | Protect Face: | Tempered Glass |
Packaging: | Cartons+pearl Cotton+wooden Box | ||
High Light: | stretched lcd monitor,wide lcd display |

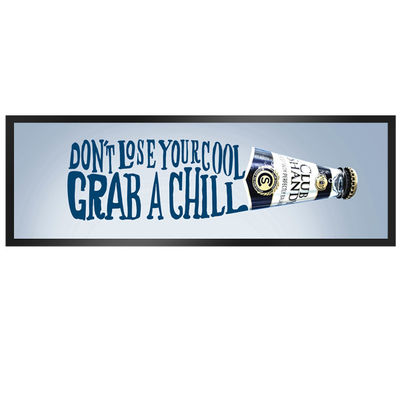

14.9 Inch Screen Display Stretched LCD Display Ultra Wide Bar Type
Product Feature:
. Ultra wide bar type TFT LCD monitor
. Full metal frame thin bezel front
. Supported multimedia advertising
. New product in stock
Size | Description | Brightness (nits) | Resolution | Display area (mm) |
16.4" | Widescreen Stretched Bar LCD KIT | 700nit | 1366*230 | 409.7*69 |
16.8" | Ultra Wide Stretched Bar LCD KIT | 800nit | 1366*378 | 409.8*113 |
19.1" | Ultra Wide Resized LCD KIT | 700nit | 1920*340 | 476.64*84 |
19.2" | Ultra Wide Stretched Bar LCD Monitor | 700nit | 1920*384 | 476.6*100 |
19.7" | Ultra Wide Resized LCD Monitor | 700nit | 1920*624 | 479.6*159 |
21.9" | Bar And Stretch Panels | 700nit | 1920*720 | 525.22*199 |
24.6" | Stretched High Bright LCD Monitor | 700nit | 1920*578 | 597.8*180 |
28" | Stretched LCD POS Display | 600nit | 1920*360 | 698.4*131 |
28.8" | High brightness bar (stretched) LCD | 550nit | 1920*540 | 698.4*196 |
30" | ultra wide display screen | 800nit | 1366*512 | 697.6*260 |
36.6" | Stretched LCD Metal Frame Display | 700nit | 1920*290 | 923.3*143 |
36.8" | large stretched bar display | 700nit | 1920*360 | 919*172 |
37.2" | ultra wide display screen | 700nit | 1920*361 | 930*175 |
38" | stretched digital poster | 800nit | 1920*540 | 936*267 |
41.5" | Ultra HD Resolution Stretched Bar LCD Monitor | 800nit | 1920*540 | 1017*285 |
48.5" | Bar type LCD (Stretched Display) | 700nit | 1920*360 | 1209*226 |
49.5" | Ultra Bright Stretched Bar LCD Monitor | 700nit | 1920*540 | 1209*340 |
57.2" | Bar-Type ( Stretched ) LCD | 700nit | 1920*364 | 1429*272 |
Our range of stretched lcd monitors are specially cut offering a super wide display format which offers an innovative and fresh approach to grab the public’s attention. These stretched format display products, also known as BAR displays, are available in a variety of sizes and aspect ratios, with sunlight readable options, open frame models, making them an ideal solution for digital signage, gaming and wayfinding style applications.
Ultra Wide aspect ratio
Slim Bezel Bar Lcd Design
High Brightness
Wide Viewing Angle
LED Backlight and long life time
Low Power Consumption
Anti-Shock
Standalone USB function
1. Support display and loop file when power on.;
2. Support video file:MP4,AVI,DIVX,DIVD,VOB,DAT,MPG,MPEG,RM,RMOV,HDMOV and so on.;
3. Support picture file:JPEG,BMP,GIF,PNG
4. Support audio file:MP3,WMA,OGG/AAC/AC3/DTS/FLAC/APE
5. Support SD and U disk ;
6. Support USB updating function, it is more convenient for customers to change playing files;
7. Support Rolling text function;
8. Support clock display;
9. Supports timer on/off, 5 segments each day, 7 days each week;
10. Support 15 types of display effect and the interval time could be adjusted among 3s, 5s,10s and 20s;
11. Supports image rotation in 90/270 degrees ;
12. Multiple language, English is default.
Basic Secification:
Pixel | 1920 X 361 |
Dot Pitch | 0.4845 X 0.4845 |
Display scale | 16 : 3 |
Contrast | 4000 : 1 |
Brightness(Sunlight readable is optional for outdoor) | 700 ~ 2000nits |
Pixel Arrangement | R.G.B Horizontal Stripe |
Display Mode | Normally Black |
Response Time | 6.5ms(Type,on/off) |
Input Voltage | 12V |
Electrical Interface | Dual channel LVDS |
Display Color | 8 bit,16.7M colors |
Power Consumption | Updating |
Weight | 5.2kg |
Operating Temperature | 0℃ ~50℃ |
Storage Temperature | -20℃ ~ 60℃ |
