Place of Origin: | China |
Brand Name: | TOPADKIOSK/OEM |
Certification: | CE,FCC.ROSH |
Model Number: | TPK-W4902 |
Minimum Order Quantity: | 1PC |
---|---|
Price: | Negotiate |
Packaging Details: | Packed in carton firstly,and then reinforced with wooden case for outer packing |
Delivery Time: | 3-5 working days after receipt of your payment |
Payment Terms: | , MoneyGram, T/T |
Supply Ability: | 3000PC per month |
Place Of Origin:: | Guangdong, China (Mainland) | Color: | 8bit-16.7M |
---|---|---|---|
Weight: | 30kg | Application: | Indoor |
Input Voltag: | AC100V~240V 50/60Hz | Panel Dimension:: | 1077.58(L)*607.8(H)*109(D) |
Size: | 46/47/49/55 Inch | Screen To Screen: | 3.8mm |
Installation: | Rack / Wall-mounted | Brightness: | 450cd/m2 |
High Light: | multi screen video wall,lcd video wall display |

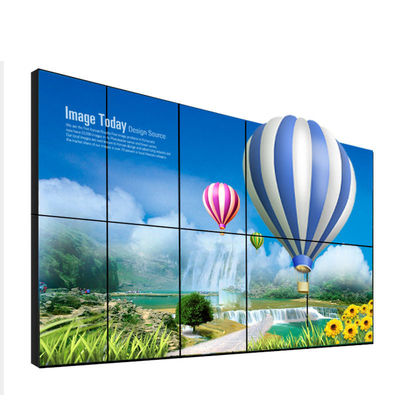

55" Indoor Digital Signage Video Wall LCD Advertising Display Media Player Screen
Super Narrow Bezel for Video Walls
The features an ultra-slim 3.5 mm bezel-to-bezel dimension for video wall applications. With built-in video daisy chaining, a single 1080p source can be used on video walls up to 6×6 in size without the need for any additional external video wall controller. By combining a narrow bezel display with the benefits of a high brightness LED backlight, these displays are ideal for indoor environments that receive a high amount of external daylight such as airports, shopping centers and storefront window displays.
Panel Specifications | |
LCD Technology | Samsung TFT-LCD |
Active Screen Diagonal | 55" (1397mm) |
Pixel Pitch(WxH) | 0.630x0.630mm |
Active Display Area(WxH) | 1209.6x680.4mm |
Panel Dimension(WxHxD) | 1215.3x686.1x64mm |
Total Bezel Width | 5.3mm | 0.208” |
Aspect Ratio | 16:9 |
Physical Resolution | 1920x1080 |
Backight System | WLED |
Luminance(nits) | 450cd/sqm |
Contrast | 3500:1 (typ.) |
Viewing Angle | H 178°|V 178° |
Display Colors | 8Bit,16.7M |
Refresh Rate | 60Hz |
Response Time | <=6ms |
Life(hrs) | >60,000(hrs) |
MTBF | > 100,000h |
Surface | Anti-glare |
Standby Power Consumption | <3W |
Maximum Power Consumption | <=250W |
Power Supply | AC100~240V 50/60 HZ |
Cooling | Low noise fans |
Heat Dissipation | 819 BTU/h (max) |
Working Time Capacity | 7x24x365hours |
Application Area | Indoor/Semi Outdoor/Outdoor |
Working Temperature | 0°C~50°C |
Working Humidity | 85% non-condensing |
Storage Temperature | -20-60°C | -4-149°F |
Storage Humidity | 85% non-condensing |
Processor | |
DVI-I DUAL LINK | 1 |
HDMI | 1 |
VGA | 1 |
CVBS IN | 1 |
CVBS OUT | 1 |
RS232 IN | 1 |
RS232 OUT | 2 |
ISP IN | 1 |
IR IN | 1 |
CODING BUTTON | 1 |
AC IN | AC100-240V |
Color System Support | PAL/NTSC/SECAM |
Control Type | IR Remote &Software Control |
Menu Language | English/Chinese(Multiple Language can be customized) |
Description
♦ Excellent ultra narrow bezel design with just 3.5mm bezel width between screens
♦ Built-in 3D noise reduction, making the image clean and outline more vivid
♦ Full HD display 3840x2160 display
♦ LED backlit technology brings you perfect visual effect
♦ 4K input supported
Advantages of LCD Video Wall
♦ Reliable quality and low maintenance: Less thermal diffusivity makes the components and parts more stable.
♦ High Definition and clear image: High brightness and contrast make colors brilliant and bright, as well as stable and clear image.
♦ Wide viewing angle: DID LCD panel makes the viewing angle up to 180°.
♦ Low power consumption and low heat radiation
♦ Long service life lowers the cost of usage and maintenance
♦ Innovative and advanced: 42” to 60” Ultra thin bezel LCD video wall, the thinnest bezel up to 1.8mm
♦ Ultathin and lightweighted: The ultra thin and lightweighted design makes it easy to transport and install.
♦ Economic al and practical: High performance and high quality make it cost less.
FAQ:
Q:How long is the warranty time for your products?
A: Our officially promised warranty time is one whole year after delivery at best.
Q: When will you make the delivery?
A: We can make the delivery within 3-15 working days or depend on the size and quantities of your order.
Q:what brand of screen are you using?
A:we are using Samsung,LG and AUO screen.
Q: Do you have your own enclosure factory?
A:Yes we do have our own enclosure factory,and we have the best structural Engineer,we hope to provide you with best screen and shape,so OEM is also welcome.
Q:Do you give any discount ?
A: We are Manufacturer, so we are able to give you the best price and best service at the same time.
Q:What payment methods your company accept?
A:We accept most of the payment methods,but mainly accept T/T, WesternUnion,Paypal and MoneyGram
