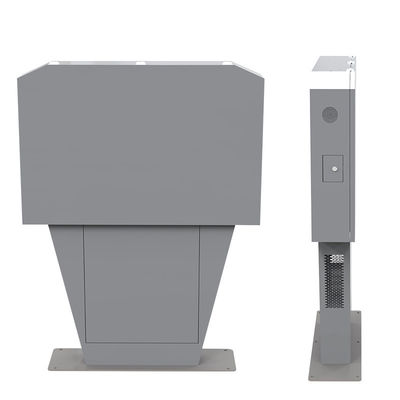

Sunlight Readable Outdoor Digital Display Screens 55 65 Inch Waterproof Ip65

Sunlight Readable Outdoor Digital Display Screens 55 65 Inch Waterproof Ip65

  • Sunlight Readable Outdoor Digital Display Screens 55 65 Inch Waterproof Ip65
  • Sunlight Readable Outdoor Digital Display Screens 55 65 Inch Waterproof Ip65
  • Sunlight Readable Outdoor Digital Display Screens 55 65 Inch Waterproof Ip65
  • Sunlight Readable Outdoor Digital Display Screens 55 65 Inch Waterproof Ip65
Sunlight Readable Outdoor Digital Display Screens 55 65 Inch Waterproof Ip65
Product Details:
Place of Origin: CHINA
Brand Name: TOPADKIOSK/OEM
Certification: CE&Rohs&FCC
Model Number: TPK-OF5565
Payment & Shipping Terms:
Minimum Order Quantity: 1PC
Price: negotiate
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 10-15days after receipt of your payment
Payment Terms: T/T, , MoneyGram
Supply Ability: 3000pcs per month
Contact Now
Detailed Product Description
Pnale Size: 32/43/49/50/55/65 Inch Brightness: 2500-5000nits
Panel: 50000hours Material: Galvanized Steel With Anti-reflect Glass
Max Resolution: 1080*1920 Touch Screen: Capacitive 10 Touch Points For Optional
Air Condition: For Optional Connectivity: LAN, WIFI, 3G(Optional)
Waterproof Grade: IP65
High Light:

outdoor digital display screens

,

outdoor lcd advertising display

Sunlight Readable 55 Inch 65 inch landscape style Floor Stand Waterproof Ip65 Outdoor Gas Station Mall Kiosk




Main features



1. IP65 design for outdoor application.

2. High brightness up to 4000cd/m2, readable under sunlight.

3. Build in Airconditioner cooling system, adapted to -40°C--+60°C environment temperature.

4. Lightning protection and heating below zero

5. Fron tempered glass and anti-glare glass

6. Intelligent light system, brightness of screen auto adjusts according to environment light, saving energy.

7. Anti-dust, anti-vandal, anti-theft.

8. Customized design for you without additional cost.

9. Screen sizes available  32/43/49/50/55/65 Inch

10. Wall mount, roof hanging and free standing(fixed on ground) all available.

11. Security electric circuit design

12. Build in power timer

13. Silver, White, Black or optional



Dimensions



Sunlight Readable Outdoor Digital Display Screens 55 65 Inch Waterproof Ip65 0





LCD Panel Parameter
Panel Size 32-65
Panel Brand LG/Samsung/AUO/BOE etc
Installation outdoor
Panel Type HIGH nits LCD screen & patent LED backlight
Max Resolution (pixel) 1920(RGB)*1080(FHD)
Aspect Ratio 16:09
Display Color 16.7M(8bit)
light sensor auto adjust brightness according to the surrounding enviroment
Brightness 1500-4000cd/m2
Contrast Ratio 4000:1
View Angle 89°/89°89°/89°(Typical)
Response Time 6ms(Typical)
Technical Specification
Frame material 1.5mm agalvanized sheet
Colored System PAL/NTSC/Auto-detecting
Menu Language Multiple language,English(Default)
Noise Reduction Yes
Voltage Frequency 100V-240V AC
Horizon Frequency 50/60Hz
Working Temperature 0°C~50°C
Working Humidity 10% - 90% no condensation
Storage Temperature -20°C - 80°C
Storage Humidity 85% no condensation
Operating System
Android
Android CPU(Standard) Dual Core Allwinner A201.5GHz
Optional CPU Rockship RK3288 quad-core 1.6GHz
Memory DDR3 2GB
Built-in Storage 8GB FLASH for A20,8G for RK3288, Support TF card expansion
RJ45/WIFI/4G/USB/CF/SD Include
Touch Funcion Optional
Touch sensor capacitive/infrared
Touch surface 9H Anti-glare Tempered Glass
Windows
CPU Core 3217U, 3317U, 3517U; i3, H81 i5. H81 i7
Mainboard  H81/B75 etc..
Memory RAM 4GB
Build-in storage 500 HDD/120GB SSD
RJ45/WIFI/4G/USB/TF/SD Include
V59
CPU No
Memory SD/USB
WIFI/RJ45/3G/4G No
HDMI output No HDMI output
Infrared or capacitive touch No
Support software installing Application Application is not supported
Temperature control system
Air Cooling smart fan
Cold and warm air conditioner fixed frequency and variable frequency air conditioner
Optional function
Remote environment monitoring system



Why outdoor digital sigange different ?

Outdoor kiosks are often located in public spaces. When the kiosks have public access, they are left open to factors and conditions that may result in internal or external damage from physical abuse or extreme weather. So outdoor digital signage products is quite different from indoor products in terms of quality, build, material, technical data, and of course the price too.



Sunlight Readable Is A Must !

  • High Brightness: Our outdoor digital signage kiosk Max brightness is from 2000nits-5000 nits all available. Standard Outdoor Kiosk Brightness Max 2500 nits. which is also the most suitable brightness for most of customers from all around the world.
  • Sunlight Readable Outdoor Digital Display Screens 55 65 Inch Waterproof Ip65 1
  • Patent Technology for High Brightness LED Module and Heat Conduction Design !
  • Sunlight Readable Outdoor Digital Display Screens 55 65 Inch Waterproof Ip65 2





Brightness Auto-adjustable with light sensor control





  • Anti-Reflective: we adopted 6mm anti-explosive toughened glass with AR (anti-reflective) optical coating, Transmission> 97%, Reflection< 1%, UVblock up to 99%.

Sunlight Readable Outdoor Digital Display Screens 55 65 Inch Waterproof Ip65 3





Waterproof And Dustproof Is a Must !

  • Grade IP55 and IP65 stand for the same waterproof grade(the second number 5 ): Water projected by a nozzle against the enclosure from any direction shall have no harmful effect.
  • Sunlight Readable Outdoor Digital Display Screens 55 65 Inch Waterproof Ip65 4
  •

Cooling System Is A Must

  • Fan Cooling: smart fan cooling system works with temperature sensor to cool down the kiosk. Fan cooling system is suitable for countries have mild weather all year round.

Sunlight Readable Outdoor Digital Display Screens 55 65 Inch Waterproof Ip65 5





AC cooling: AC (air conditioning) cooling is a must for customers from countries which have extreme weather in Summer or Winter. Or you have special requirements on dustproof, AC cooling is the best choice.



Sunlight Readable Outdoor Digital Display Screens 55 65 Inch Waterproof Ip65 6



Sunlight Readable Outdoor Digital Display Screens 55 65 Inch Waterproof Ip65 7

Application Area



1. Public Places: Subway, Airport, Bookshop, Exhibition hall, Gymnasium, Museum, Conference

center, Talent market, Lottery center, etc.

2. Entertainment Places: Movie theatre, Fitness center, Vacation village, KTV bar, Internet bar,

Beauty salon, etc.

3. Financial Institution: Bank, Security/ Fund/ Insurance company, etc.l

4. Business Organizations: Supermarket, Shopping malls, chain store, 4S shop, Restaurant,

Hotel, travel agency,Chemist's shop, etc. bus tv, bus monitor,lcd display, lcd advertising display

5. Public Service: Hospital, School, Telecom, Post office, etc.



Sunlight Readable Outdoor Digital Display Screens 55 65 Inch Waterproof Ip65 8
