Shenzhen TopAdkiosk Display Technology Co., Ltd.
Providing innovation and cost-effective digital signage solutions
Sales & Support:
 |
| Place of Origin: | CHINA |
| Brand Name: | TOPADKIOSK/OEM |
| Certification: | CE&Rohs&FCC |
| Model Number: | TPK-WT4308 |
| Minimum Order Quantity: | negotiate |
|---|---|
| Price: | negotiate |
| Packaging Details: | Packed in carton firstly,and then reinforced with wooden case for outer packing |
| Delivery Time: | 10-15days after receipt of your payment |
| Payment Terms: | T/T, , MoneyGram |
| Supply Ability: | 3000pcs per month |
| Type: | TFT | Max Resolution: | 1920*1080 |
|---|---|---|---|
| Viewing Angle: | 178/178 | Input Voltage: | AC100V-240V (50HZ-60HZ) |
| Brightness: | 400 Cd/m*2 | OS: | Window, Android |
| Touch Screen: | Infrared /Capacitive | I/O Port: | 2XUSB 3.0, 1XRJ45, 1 XHDMI |
| Size: | 22-86" | ||
| High Light: | wall mount lcd display,wall mounted kiosk |
||

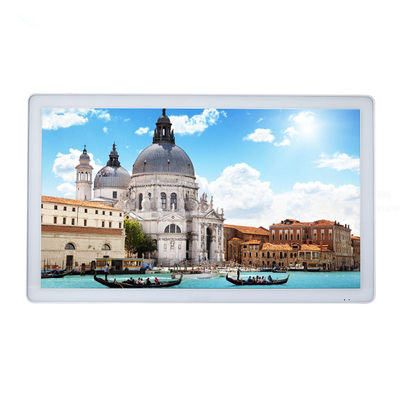

43inch open frame white color Industrial sensitive capacitive touch android windows touchscreen monitor
Available Sizes: 32" 43" 49" 55"
Feature:
LG A+ full new original LCD screen
OS:Windows 7 and Android 4.4 option
Touchscreen:10points capacitive touchscreen/Infrared touch screen
Network:RJ45, 3G, WIFI (optional)
| Size | 32inch | 43inch | 49inch | 55inch | 65inch |
| Screen Type | LED | LED | LED | LED | LED |
| Max Resolution | 1920*1080 | 1920*1080 | 1920*1080 | 1920*1080 | 1920*1080 |
| Brightness | 360cd/m2 | 360cd/m2 | 360cd/m2 | 360cd/m2 | 360cd/m2 |
| Aspect Ratio | 16:9 | 16:9 | 16:9 | 16:9 | 16:9 |
| Color | 16.7M | 16.7M | 16.7M | 16.7M | 16.7M |
| Viewing Angle | 178° | 178° | 178° | 178° | 178° |
| Response Time | 8ms | 8ms | 8ms | 8ms | 8ms |
| Voltage Input | AC100~240 | AC100~240 | AC100~240 | AC100~240 | AC100~240 |
| Power consumption | 360W | 460W | 500W | 620W | 1000W |
| Standby consumption | 2W | 2W | 2W | 2W | 2W |
| Speaker Output | 10Watts | 10Watts | 10Watts | 10Watts | 10Watts |
| Speakers | 2 x Internal Speakers | ||||
| Frame Color | Bright Black and Bright Silver | ||||
| Frame Material | Steel Construction | ||||
| Screen Material | Tempered Glass | ||||
| Security | Ports, Connectors and Controls are Located within a Lock-Protected Compartment | ||||
| Working Environment | -20°C ~ +60°C | ||||
| Working Humidity | 10%-90% | ||||
| Inputs | HDMI x 1, USB x 2, Component | ||||
| Certifications | CE, ROHS, CCC. FCC, ISO9001 | ||||
| Accessories | Power Adapter, Wired Plug, User Manual and Installation Bracket | ||||
| Product Warranty | 1 Year Warranty | ||||
| Android OS: | |
| OS | Android 4. 4 OS |
| CPU | RK3288,1.8GHZ |
| DDR | 2G DDR3 |
| ROM: | 8G NAND FLASH |
| Exteral ROM | Support up to 32G bytes sd card and support stata hard disk interface |
| WiFi | Support 802.11b/g/n wifi module |
| Interface | USB2.0,Ypbpr,VGA,AV,SD card slot,3G interface,SIM Card,RJ45 |
| Windows OS(PC1 solution) | |
| CPU | Intel Dual core J1900 Processor (2.8GHz, Quad Core) |
| Chipset | INTEL®GM45+ ICH9M-E |
| RAM | 4GB DDR3 1333 RAM (Up to 6GB) |
| Graphics | INTEL® HD Video card |
| Audio | HD 8-channel (7.1) audio subsystem |
| Network | 10/100/1000M Gigabit Ethernet Controller |
| WiFi | High quality WiFi module included (802.11 B/G/N) |
| H.D.D. | 128 GB SSD |
| Speaker | 2 build-in high quality stereo speakers (5w |
| O.D.D | DVD-RW (Optional) |
| Mouse/Keyboard | Bluetooth suit (Optional) |
| Pre-Installed OS | Windows7 |
| TV Tuner | No |
| Windows OS(PC2 solution option): | |
| CPU | Intel Core i3 (3th generation, Dual Core)/i5/i7 |
| RAM | 4GB DDR III 1333 RAM (Up to 16GB) |
| Graphics | INTEL® HD Video card |
| Audio | HD 8-channel (7.1) audio subsystem |
| Network | 10/100/1000 Mbits/sec Ethernet LAN connectivity |
| WiFi | High quality WiFi module included (802.11 B/G/N) |
| H.D.D. | 120GB SSD |
| Speaker | 2 build-in high quality stereo speakers (3w or 5w) |
| O.D.D | DVD-RW (Optional) |
| Mouse/Keyboard | Bluetooth suit (Optional) |
| Pre-Installed OS | Windows 8 or Linux |
| TV Tuner |
Optional |
FAQ:
Q:How long is the warranty time for your products?
A: Our officially promised warranty time is one whole year after delivery at best.
Q: When will you make the delivery?
A: We can make the delivery within 3-15 working days or depend on the size and quantities of your order.
Q:what brand of screen are you using?
A:we are using Samsung,LG and AUO screen.
Q: Do you have your own enclosure factory?
A:Yes we do have our own enclosure factory,and we have the best structural Engineer,we hope to provide you with best screen and shape,so OEM is also welcome.
Q:Do you give any discount ?
A: We are Manufacturer, so we are able to give you the best price and best service at the same time.
Q:What payment methods your company accept?
A:We accept most of the payment methods,but mainly accept T/T, WesternUnion,Paypal and MoneyGram
