Home ProductsDigital Signage Video Wall

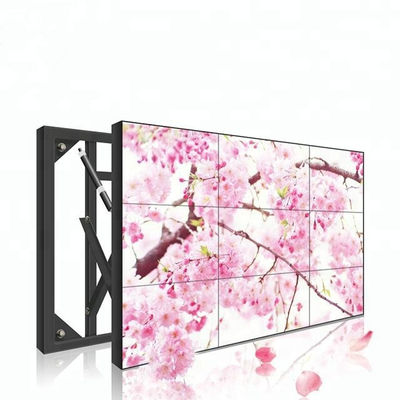

Smart TV Flexible Lcd Video Wall Display 55 Inch Ultra Narrow Bezel 1.8mm HD 4K

Smart TV Flexible Lcd Video Wall Display 55 Inch Ultra Narrow Bezel 1.8mm HD 4K

    • Smart TV Flexible Lcd Video Wall Display 55 Inch Ultra Narrow Bezel 1.8mm HD 4K
    • Smart TV Flexible Lcd Video Wall Display 55 Inch Ultra Narrow Bezel 1.8mm HD 4K
    • Smart TV Flexible Lcd Video Wall Display 55 Inch Ultra Narrow Bezel 1.8mm HD 4K
    • Smart TV Flexible Lcd Video Wall Display 55 Inch Ultra Narrow Bezel 1.8mm HD 4K
  • Smart TV Flexible Lcd Video Wall Display 55 Inch Ultra Narrow Bezel 1.8mm HD 4K

    Product Details:

    Place of Origin: China
    Brand Name: TOPADKIOSK/OEM
    Certification: CE,FCC.ROSH
    Model Number: TPK-W4902

    Payment & Shipping Terms:

    Minimum Order Quantity: 1PC
    Price: Negotiate
    Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
    Delivery Time: 3-5 working days after receipt of your payment
    Payment Terms: Western Union, MoneyGram, T/T
    Supply Ability: 3000PC per month
    Contact Now
    Detailed Product Description
    Place Of Origin:: Guangdong, China (Mainland) Bezel: 3.5mm
    Color: 8bit-16.7M Weight: 30kg
    Application: Indoor Contrast Ratio: 3000:1
    Input Voltag: AC100V~240V 50/60Hz Panel Dimension:: 1077.58(L)*607.8(H)*109(D)
    Size: 46/47/49/55 Inch Screen To Screen: 3.8mm
    Installation: Rack / Wall-mounted Brightness: 450cd/m2
    High Light:

    multi screen video wall

    ,

    lcd video wall display

    55inch ultra narrow bezel 1.8mm HD 4K smart TV flexible good quality led/lcd tv 3x3 lcd video wall



    Super Narrow Bezel for Video Walls

    The features an ultra-slim 3.5 mm bezel-to-bezel dimension for video wall applications. With built-in video daisy chaining, a single 1080p source can be used on video walls up to 6×6 in size without the need for any additional external video wall controller. By combining a narrow bezel display with the benefits of a high brightness LED backlight, these displays are ideal for indoor environments that receive a high amount of external daylight such as airports, shopping centers and storefront window displays.



    Panel Specifications
    LCD Technology Samsung TFT-LCD
    Active Screen Diagonal 55" (1397mm)
    Pixel Pitch(WxH) 0.630x0.630mm
    Active Display Area(WxH) 1209.6x680.4mm
    Panel Dimension(WxHxD) 1215.3x686.1x64mm
    Total Bezel Width 5.3mm | 0.208”
    Aspect Ratio 16:9
    Physical Resolution 1920x1080
    Backight System WLED
    Luminance(nits) 450cd/sqm
    Contrast 3500:1 (typ.)
    Viewing Angle H 178°|V 178°
    Display Colors 8Bit,16.7M
    Refresh Rate 60Hz
    Response Time <=6ms
    Life(hrs) >60,000(hrs)
    MTBF > 100,000h
    Surface Anti-glare
    Standby Power Consumption <3W
    Maximum Power Consumption <=250W
    Power Supply AC100~240V 50/60 HZ
    Cooling Low noise fans
    Heat Dissipation 819 BTU/h (max)
    Working Time Capacity 7x24x365hours
    Application Area Indoor/Semi Outdoor/Outdoor
    Working Temperature 0°C~50°C
    Working Humidity 85% non-condensing
    Storage Temperature -20-60°C | -4-149°F
    Storage Humidity 85% non-condensing
    Processor
    DVI-I DUAL LINK 1
    HDMI 1
    VGA 1
    CVBS IN 1
    CVBS OUT 1
    RS232 IN 1
    RS232 OUT 2
    ISP IN 1
    IR IN 1
    CODING BUTTON 1
    AC IN AC100-240V
    Color System Support PAL/NTSC/SECAM
    Control Type IR Remote &Software Control
    Menu Language English/Chinese(Multiple Language can be customized)




    Description
    Excellent ultra narrow bezel design with just 3.5mm bezel width between screens
    Built-in 3D noise reduction, making the image clean and outline more vivid
    Full HD display 3840x2160 display
    LED backlit technology brings you perfect visual effect
    4K input supported

    Advantages of LCD Video Wall
    Reliable quality and low maintenance: Less thermal diffusivity makes the components and parts more stable.
    High Definition and clear image: High brightness and contrast make colors brilliant and bright, as well as stable and clear image.
    Wide viewing angle: DID LCD panel makes the viewing angle up to 180°.
    Low power consumption and low heat radiation
    Long service life lowers the cost of usage and maintenance
    Innovative and advanced: 42” to 60” Ultra thin bezel LCD video wall, the thinnest bezel up to 1.8mm
    Ultathin and lightweighted: The ultra thin and lightweighted design makes it easy to transport and install.
    Economic al and practical: High performance and high quality make it cost less.


    Smart TV Flexible Lcd Video Wall Display 55 Inch Ultra Narrow Bezel 1.8mm HD 4K 0



    Smart TV Flexible Lcd Video Wall Display 55 Inch Ultra Narrow Bezel 1.8mm HD 4K 1

    Smart TV Flexible Lcd Video Wall Display 55 Inch Ultra Narrow Bezel 1.8mm HD 4K 2


    Smart TV Flexible Lcd Video Wall Display 55 Inch Ultra Narrow Bezel 1.8mm HD 4K 3

    Smart TV Flexible Lcd Video Wall Display 55 Inch Ultra Narrow Bezel 1.8mm HD 4K 4





    Smart TV Flexible Lcd Video Wall Display 55 Inch Ultra Narrow Bezel 1.8mm HD 4K 5

    Smart TV Flexible Lcd Video Wall Display 55 Inch Ultra Narrow Bezel 1.8mm HD 4K 6



    Smart TV Flexible Lcd Video Wall Display 55 Inch Ultra Narrow Bezel 1.8mm HD 4K 7



    FAQ:
    Q:How long is the warranty time for your products?
    A: Our officially promised warranty time is one whole year after delivery at best.
    Q: When will you make the delivery?
    A: We can make the delivery within 3-15 working days or depend on the size and quantities of your order.
    Q:what brand of screen are you using?
    A:we are using Samsung,LG and AUO screen.
    Q: Do you have your own enclosure factory?
    A:Yes we do have our own enclosure factory,and we have the best structural Engineer,we hope to provide you with best screen and shape,so OEM is also welcome.
    Q:Do you give any discount ?
    A: We are Manufacturer, so we are able to give you the best price and best service at the same time.
    Q:What payment methods your company accept?
    A:We accept most of the payment methods,but mainly accept T/T, WesternUnion,Paypal and MoneyGram
