Place of Origin: | China |
Brand Name: | TOPADKIOSK/OEM |
Certification: | CE,FCC.ROSH |
Model Number: | TPK-W4902 |
Minimum Order Quantity: | 1PC |
---|---|
Price: | Negotiate |
Packaging Details: | Packed in carton firstly,and then reinforced with wooden case for outer packing |
Delivery Time: | 3-5 working days after receipt of your payment |
Payment Terms: | , MoneyGram, T/T |
Supply Ability: | 3000PC per month |
Item Name: | LCD Video Wall | Bezel: | 0.88mm,1.8mm,3.5mm |
---|---|---|---|
Color: | 8bit-16.7M | Weight: | 30kg |
Application: | Indoor | Contrast Ratio: | 1200:1 |
Input Voltag: | AC100V~240V 50/60Hz | Panel Dimension:: | 1077.58(L)*607.8(H)*109(D) |
Size: | 46/49/55 / 65 Inch | Panel Information: | IPS / Tft |
Installation: | Rack / Wall-mounted / Cabinet / Embeded | Brightness: | 500 - 700 Cd/m2 |
High Light: | 450cd/M2 Indoor Lcd Video Wall,1920x1080 Indoor Lcd Video Wall,NTSC Lcd Video Wall Panel |

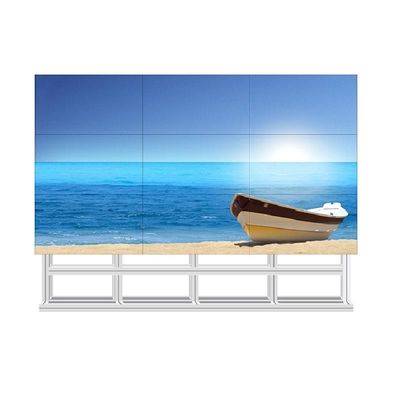

Custom narrow bezel 46 49 55 inch LCD video wall advertising players Digital Signage And Display Splicing Screen
Panel: LG, SAMSUNG,BOE
SAMSUNG higher price, best quality
LG: cheaper price, good quality
Connection way:
1, Using HDMI splitter, stable quality, HDMI resolution.
2, Using DVI looping connection, HDMI resolution.
3, Using DP looing connection, 4K resolution, need signal INPUT and media resource to be 4k.
4, Can use HDMI matrix for multi-signal input such as PC, camera,etc.
5, Can use large screen processor for signal input, for example: 16 HDMI in, 16 hdmi out, 8 vga in and 8 vga out, etc, can customized. Can have float windows. (EXPENSIVE)
Panel Specifications | |
LCD Technology | Samsung TFT-LCD |
Active Screen Diagonal | 55" (1397mm) |
Pixel Pitch(WxH) | 0.630x0.630mm |
Active Display Area(WxH) | 1209.6x680.4mm |
Panel Dimension(WxHxD) | 1215.3x686.1x64mm |
Total Bezel Width | 5.3mm | 0.208” |
Aspect Ratio | 16:9 |
Physical Resolution | 1920x1080 |
Backight System | WLED |
Luminance(nits) | 450cd/sqm |
Contrast | 3500:1 (typ.) |
Viewing Angle | H 178°|V 178° |
Display Colors | 8Bit,16.7M |
Refresh Rate | 60Hz |
Response Time | <=6ms |
Life(hrs) | >60,000(hrs) |
MTBF | > 100,000h |
Surface | Anti-glare |
Standby Power Consumption | <3W |
Maximum Power Consumption | <=250W |
Power Supply | AC100~240V 50/60 HZ |
Cooling | Low noise fans |
Heat Dissipation | 819 BTU/h (max) |
Working Time Capacity | 7x24x365hours |
Application Area | Indoor/Semi Outdoor/Outdoor |
Working Temperature | 0°C~50°C |
Working Humidity | 85% non-condensing |
Storage Temperature | -20-60°C | -4-149°F |
Storage Humidity | 85% non-condensing |
Processor | |
DVI-I DUAL LINK | 1 |
HDMI | 1 |
VGA | 1 |
CVBS IN | 1 |
CVBS OUT | 1 |
RS232 IN | 1 |
RS232 OUT | 2 |
ISP IN | 1 |
IR IN | 1 |
CODING BUTTON | 1 |
AC IN | AC100-240V |
Color System Support | PAL/NTSC/SECAM |
Control Type | IR Remote &Software Control |
Menu Language | English/Chinese(Multiple Language can be customized) |
Description
♦ Excellent ultra narrow bezel design with just 3.5mm bezel width between screens
♦ Built-in 3D noise reduction, making the image clean and outline more vivid
♦ Full HD display 3840x2160 display
♦ LED backlit technology brings you perfect visual effect
♦ 4K input supported
Advantages of LCD Video Wall
♦ Reliable quality and low maintenance: Less thermal diffusivity makes the components and parts more stable.
♦ High Definition and clear image: High brightness and contrast make colors brilliant and bright, as well as stable and clear image.
♦ Wide viewing angle: DID LCD panel makes the viewing angle up to 180°.
♦ Low power consumption and low heat radiation
♦ Long service life lowers the cost of usage and maintenance
♦ Innovative and advanced: 42” to 60” Ultra thin bezel LCD video wall, the thinnest bezel up to 1.8mm
♦ Ultathin and lightweighted: The ultra thin and lightweighted design makes it easy to transport and install.
♦ Economic al and practical: High performance and high quality make it cost less.
FAQ:
Q:How long is the warranty time for your products?
A: Our officially promised warranty time is one whole year after delivery at best.
Q: When will you make the delivery?
A: We can make the delivery within 3-15 working days or depend on the size and quantities of your order.
Q:what brand of screen are you using?
A:we are using Samsung,LG and AUO screen.
Q: Do you have your own enclosure factory?
A:Yes we do have our own enclosure factory,and we have the best structural Engineer,we hope to provide you with best screen and shape,so OEM is also welcome.
Q:Do you give any discount ?
A: We are Manufacturer, so we are able to give you the best price and best service at the same time.
Q:What payment methods your company accept?
A:We accept most of the payment methods,but mainly accept T/T, WesternUnion,Paypal and MoneyGram
