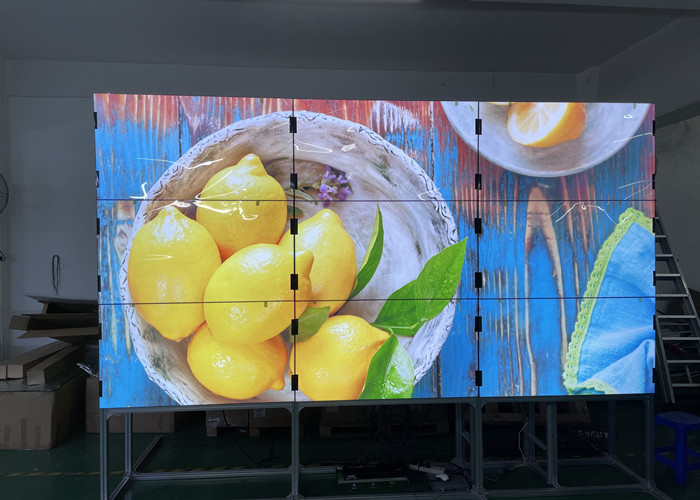

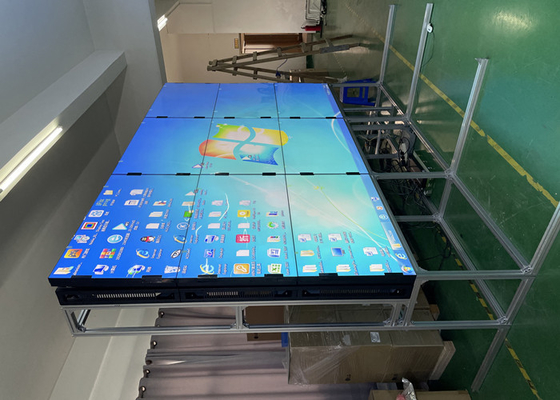

lcd video wall 3.5mm super narrow bezel 49 inch 2x2 3x3 4k Fhd interactive did seamless

lcd video wall 3.5mm super narrow bezel 49 inch 2x2 3x3 4k Fhd interactive did seamless

  • lcd video wall  3.5mm super narrow bezel 49 inch 2x2 3x3 4k Fhd interactive did seamless
  • lcd video wall  3.5mm super narrow bezel 49 inch 2x2 3x3 4k Fhd interactive did seamless
lcd video wall  3.5mm super narrow bezel 49 inch 2x2 3x3 4k Fhd interactive did seamless
Product Details:
Place of Origin: China
Brand Name: TOPADKIOSK/OEM
Certification: CE,FCC.ROSH
Model Number: TPK-W4902
Payment & Shipping Terms:
Minimum Order Quantity: 1PC
Price: Negotiate
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 3-5 working days after receipt of your payment
Payment Terms: , MoneyGram, T/T
Supply Ability: 3000PC per month
Contact Now
Detailed Product Description
Place Of Origin:: Guangdong, China (Mainland) Bezel: 3.5mm
Color: 8bit-16.7M Weight: 30kg
Application: Indoor Contrast Ratio: 3000:1
Input Voltag: AC100V~240V 50/60Hz Panel Dimension:: 1077.58(L)*607.8(H)*109(D)
Size: 46/47/49/55 Inch Screen To Screen: 3.8mm
Installation: Rack / Wall-mounted Brightness: 450/ 700 Cd/m2
High Light:

Bezel 1.8mm Seamless LCD Video Wall

,

49" Seamless LCD Video Wall

,

NTSC Wall Mounted Digital Signage

lcd video wall 3.5mm super narrow bezel 49 inch 2x2 3x3 4k Fhd interactive did seamless



A video wall is a special multi-monitor setup that consists of multiple computer monitors, video projectors, or television sets tiled together contiguously or overlapped in order to form one large screen. Typical display technologies include LCD panels, Direct View LED arrays, blended projection screens, Laser Phosphor Displays, and rear projection cubes. Jumbotron technology was also previously used. Diamond Vision was historically similar to Jumbotron in that they both used cathode-ray tube (CRT) technology, but with slight differences between the two. Early Diamond vision displays used separate flood gun CRTs, one per subpixel. Later Diamond vision displays and all Jumbotrons used field-replaceable modules containing several flood gun CRTs each, one per subpixel, that had common connections shared across all CRTs in a module; the module was connected through a single weather-sealed connector.







LCD Video Wall Screen (DID)
Specifications
Model No. US-PJ4604
Panel Size 46'' with DID LCD Screen(super narrow bezel 5.3mm with LED Backlight)
Aspect Ratio 16:9
Max Resolution Support 1920x1080
Color 8Bit,16.7M
Brightness (nits) 700cd/m2
Contrast 3000:1
Visual Angle (H/V) 178°
Response Time <=6ms
Life(hrs) >60,000(hrs)
Input and output
DVI 1
D-15 RGB Input(VGA) 1
YUV/YPbPR 1(3xBNC)
S-(YC) 1(2xBNC)
Composite Video Input/(AV) 3(3xBNC)
Composite Video Output 2(2xBNC)
AUDIO INPUT 1
Split Screen Support Picture in Picture(PIP/POP/PAP)
Power
Power Supply AC100V~240V
Maximum Power Consumption 250W
Standby Power Consumption <=3W
Temperature
Working Temperature 0°C~50°C
Working Humidity 20%-80%
Dimension 1025.65x579.84x105mm
Video Wall Controller(Built-in each Screen)
Model No. US-P817W
Input CVBS 1*BNC port, support PAL/NTSC all formats
DVI 1*DVI-I port, support SVGA/XGA/WUXGA
VGA 1*D15 port, support SVGA/XGA/WXGA
Output LVDS Support signal or double LVDS output, and WUXGA (1920*1080) display
CVBS support PAL/NTSC all formats
DVI 1*DVI-I port, support SVGA/XGA/WUXGA
Operate mode Panel key operation(needs customization)
Standard RS232 port( provide free control software)
ADD Code
Engineering software XK_LCD_CONTROL_Manager,RS232 interface control(1 input,2 looping out)
Working temperature 0~70 °C
working humidity 5~95 %RH
AC voltage power supply 100-240V/50, 60Hz
power consumption Max 300W,according to different Screen models
Dimension 307×283×55(mm)
Weight About 3.5KG




Panel Specifications
LCD Technology Samsung TFT-LCD
Active Screen Diagonal 55" (1397mm)
Pixel Pitch(WxH) 0.630x0.630mm
Active Display Area(WxH) 1209.6x680.4mm
Panel Dimension(WxHxD) 1215.3x686.1x64mm
Total Bezel Width 5.3mm | 0.208”
Aspect Ratio 16:9
Physical Resolution 1920x1080
Backight System WLED
Luminance(nits) 450cd/sqm
Contrast 3500:1 (typ.)
Viewing Angle H 178°|V 178°
Display Colors 8Bit,16.7M
Refresh Rate 60Hz
Response Time <=6ms
Life(hrs) >60,000(hrs)
MTBF > 100,000h
Surface Anti-glare
Standby Power Consumption <3W
Maximum Power Consumption <=250W
Power Supply AC100~240V 50/60 HZ
Cooling Low noise fans
Heat Dissipation 819 BTU/h (max)
Working Time Capacity 7x24x365hours
Application Area Indoor/Semi Outdoor/Outdoor
Working Temperature 0°C~50°C
Working Humidity 85% non-condensing
Storage Temperature -20-60°C | -4-149°F
Storage Humidity 85% non-condensing
Processor
DVI-I DUAL LINK 1
HDMI 1
VGA 1
CVBS IN 1
CVBS OUT 1
RS232 IN 1
RS232 OUT 2
ISP IN 1
IR IN 1
CODING BUTTON 1
AC IN AC100-240V
Color System Support PAL/NTSC/SECAM
Control Type IR Remote &Software Control
Menu Language English/Chinese(Multiple Language can be customized)





lcd video wall  3.5mm super narrow bezel 49 inch 2x2 3x3 4k Fhd interactive did seamless 0

lcd video wall  3.5mm super narrow bezel 49 inch 2x2 3x3 4k Fhd interactive did seamless 1lcd video wall  3.5mm super narrow bezel 49 inch 2x2 3x3 4k Fhd interactive did seamless 2lcd video wall  3.5mm super narrow bezel 49 inch 2x2 3x3 4k Fhd interactive did seamless 3




Description
Excellent ultra narrow bezel design with just 3.5mm bezel width between screens
Built-in 3D noise reduction, making the image clean and outline more vivid
Full HD display 3840x2160 display
LED backlit technology brings you perfect visual effect
4K input supported

Advantages of LCD Video Wall
Reliable quality and low maintenance: Less thermal diffusivity makes the components and parts more stable.
High Definition and clear image: High brightness and contrast make colors brilliant and bright, as well as stable and clear image.
Wide viewing angle: DID LCD panel makes the viewing angle up to 180°.
Low power consumption and low heat radiation
Long service life lowers the cost of usage and maintenance
Innovative and advanced: 42” to 60” Ultra thin bezel LCD video wall, the thinnest bezel up to 1.8mm
Ultathin and lightweighted: The ultra thin and lightweighted design makes it easy to transport and install.
Economic al and practical: High performance and high quality make it cost less.


lcd video wall  3.5mm super narrow bezel 49 inch 2x2 3x3 4k Fhd interactive did seamless 4



lcd video wall  3.5mm super narrow bezel 49 inch 2x2 3x3 4k Fhd interactive did seamless 5

lcd video wall  3.5mm super narrow bezel 49 inch 2x2 3x3 4k Fhd interactive did seamless 6


lcd video wall  3.5mm super narrow bezel 49 inch 2x2 3x3 4k Fhd interactive did seamless 7

lcd video wall  3.5mm super narrow bezel 49 inch 2x2 3x3 4k Fhd interactive did seamless 8





lcd video wall  3.5mm super narrow bezel 49 inch 2x2 3x3 4k Fhd interactive did seamless 9

lcd video wall  3.5mm super narrow bezel 49 inch 2x2 3x3 4k Fhd interactive did seamless 10



lcd video wall  3.5mm super narrow bezel 49 inch 2x2 3x3 4k Fhd interactive did seamless 11



FAQ:

Q: Do you accept OEM service?

A: Yes, we supply OEM service: Customized size monitor, customized package, customized appearance
Q: What is the delivery time for OEM / ODM order?
A: 10-15 working days after all order details confirmed.
Q: How could I get samples?
A: yes,if you is a agency in you local market ,and you can assemble it independently ,we can give you free enclosure sample,but the fee of shipment need you pay
Q: Do you give any discount ?
A: yes,We are Manufacturer, so we are able to give you the best price and best service at the same time.
Q: What payment methods your company accept?
A: We accept most of the payment methods,but mainly accept T/T, L/C,Western Union and Paypal.
Q: Do you support development software?
A: yes,of course,we have ourselves software D&R team.
Q: Do you have your own enclosure factory?
A: Yes we do have our own enclosure factory,and we have the best structural Engineer,we hope to provide you with best screen and shape,so OEM is also welcome.
Q: How long is the warranty time for your products?
A: Our officially promised warranty time is one whole year after delivery at best.
