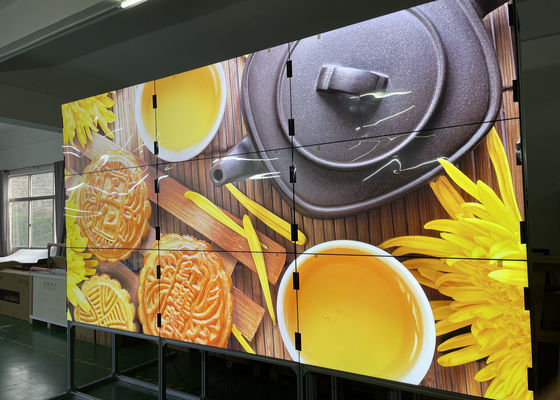

LCD Video wall UHD 4k resolution 3X3 Digital Signage 55 Inch 450 brightness mini bezel

LCD Video wall UHD 4k resolution 3X3 Digital Signage 55 Inch 450 brightness mini bezel

LCD Video wall UHD 4k resolution 3X3  Digital Signage 55 Inch 450 brightness mini bezel
LCD Video wall UHD 4k resolution 3X3  Digital Signage 55 Inch 450 brightness mini bezel
LCD Video wall UHD 4k resolution 3X3  Digital Signage 55 Inch 450 brightness mini bezel
Product Details:
Place of Origin: China
Brand Name: TOPADKIOSK/OEM
Certification: CE,FCC.ROSH
Model Number: TPK-W4902
Payment & Shipping Terms:
Minimum Order Quantity: 1PC
Price: Negotiate
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 3-5 working days after receipt of your payment
Payment Terms: , MoneyGram, T/T
Supply Ability: 3000PC per month
Contact Now
Detailed Product Description
Place Of Origin:: Guangdong, China (Mainland) Color: 8bit-16.7M
Weight: 30kg Application: Indoor
Input Voltag: AC100V~240V 50/60Hz Panel Dimension:: 1077.58(L)*607.8(H)*109(D)
Screen To Screen: 1.8mm Installation: Rack / Wall-mounted
Brightness: 450cd/m2 Remote Control Software: Yes
High Light:

3X3 LCD Video Digital Signage

,

250W LCD Video Digital Signage

,

450cd/M2 Wall Mount Digital Signage

LCD Video wall UHD 4k resolution 3X3 Digital Signage 55 Inch 450 brightness mini bezel



A very important specification for LCD video walls, is the bezel width. This needs to be as thin as possible. If not, the black bezels will create a black raster that hinders the visual experience. Contemporary LCD display wall tiles have an ultra narrow bezel that lowers this effect. With Topadkiosk, we have created the LCD without any bezel, featuring the narrowest gap in the industry. This is not only because of the absence of the bezel. The specially designed wall mounting mechanism (UniSee Mount) greatly helps to guarantee a minimal gap.



Panel Specifications
LCD Technology Samsung TFT-LCD
Active Screen Diagonal 55" (1397mm)
Pixel Pitch(WxH) 0.630x0.630mm
Active Display Area(WxH) 1209.6x680.4mm
Panel Dimension(WxHxD) 1215.3x686.1x64mm
Total Bezel Width 5.3mm | 0.208”
Aspect Ratio 16:9
Physical Resolution 1920x1080
Backight System WLED
Luminance(nits) 450cd/sqm
Contrast 3500:1 (typ.)
Viewing Angle H 178°|V 178°
Display Colors 8Bit,16.7M
Refresh Rate 60Hz
Response Time <=6ms
Life(hrs) >60,000(hrs)
MTBF > 100,000h
Surface Anti-glare
Standby Power Consumption <3W
Maximum Power Consumption <=250W
Power Supply AC100~240V 50/60 HZ
Cooling Low noise fans
Heat Dissipation 819 BTU/h (max)
Working Time Capacity 7x24x365hours
Application Area Indoor/Semi Outdoor/Outdoor
Working Temperature 0°C~50°C
Working Humidity 85% non-condensing
Storage Temperature -20-60°C | -4-149°F
Storage Humidity 85% non-condensing
Processor
DVI-I DUAL LINK 1
HDMI 1
VGA 1
CVBS IN 1
CVBS OUT 1
RS232 IN 1
RS232 OUT 2
ISP IN 1
IR IN 1
CODING BUTTON 1
AC IN AC100-240V
Color System Support PAL/NTSC/SECAM
Control Type IR Remote &Software Control
Menu Language English/Chinese(Multiple Language can be customized)




Description
Excellent ultra narrow bezel design with just 3.5mm bezel width between screens
Built-in 3D noise reduction, making the image clean and outline more vivid
Full HD display 3840x2160 display
LED backlit technology brings you perfect visual effect
4K input supported

Advantages of LCD Video Wall
Reliable quality and low maintenance: Less thermal diffusivity makes the components and parts more stable.
High Definition and clear image: High brightness and contrast make colors brilliant and bright, as well as stable and clear image.
Wide viewing angle: DID LCD panel makes the viewing angle up to 180°.
Low power consumption and low heat radiation
Long service life lowers the cost of usage and maintenance
Innovative and advanced: 42” to 60” Ultra thin bezel LCD video wall, the thinnest bezel up to 1.8mm
Ultathin and lightweighted: The ultra thin and lightweighted design makes it easy to transport and install.
Economic al and practical: High performance and high quality make it cost less.



LCD Video wall UHD 4k resolution 3X3  Digital Signage 55 Inch 450 brightness mini bezel 0

LCD Video wall UHD 4k resolution 3X3  Digital Signage 55 Inch 450 brightness mini bezel 1



LCD Video wall UHD 4k resolution 3X3  Digital Signage 55 Inch 450 brightness mini bezel 2

LCD Video wall UHD 4k resolution 3X3  Digital Signage 55 Inch 450 brightness mini bezel 3



LCD Video wall UHD 4k resolution 3X3  Digital Signage 55 Inch 450 brightness mini bezel 4

LCD Video wall UHD 4k resolution 3X3  Digital Signage 55 Inch 450 brightness mini bezel 5

LCD Video wall UHD 4k resolution 3X3  Digital Signage 55 Inch 450 brightness mini bezel 6

LCD Video wall UHD 4k resolution 3X3  Digital Signage 55 Inch 450 brightness mini bezel 7



FAQ:
Q:How long is the warranty time for your products?
A: Our officially promised warranty time is one whole year after delivery at best.
Q: When will you make the delivery?
A: We can make the delivery within 3-15 working days or depend on the size and quantities of your order.
Q:what brand of screen are you using?
A:we are using Samsung,LG and AUO screen.
Q: Do you have your own enclosure factory?
A:Yes we do have our own enclosure factory,and we have the best structural Engineer,we hope to provide you with best screen and shape,so OEM is also welcome.
Q:Do you give any discount ?
A: We are Manufacturer, so we are able to give you the best price and best service at the same time.
Q:What payment methods your company accept?
A:We accept most of the payment methods,but mainly accept T/T, WesternUnion,Paypal and MoneyGram
