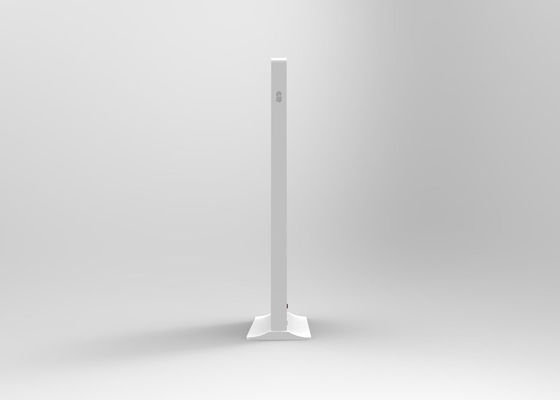

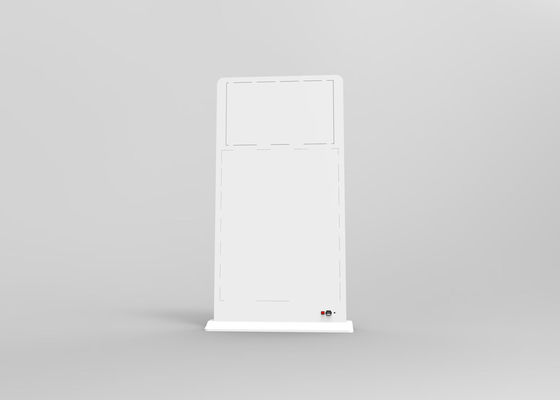

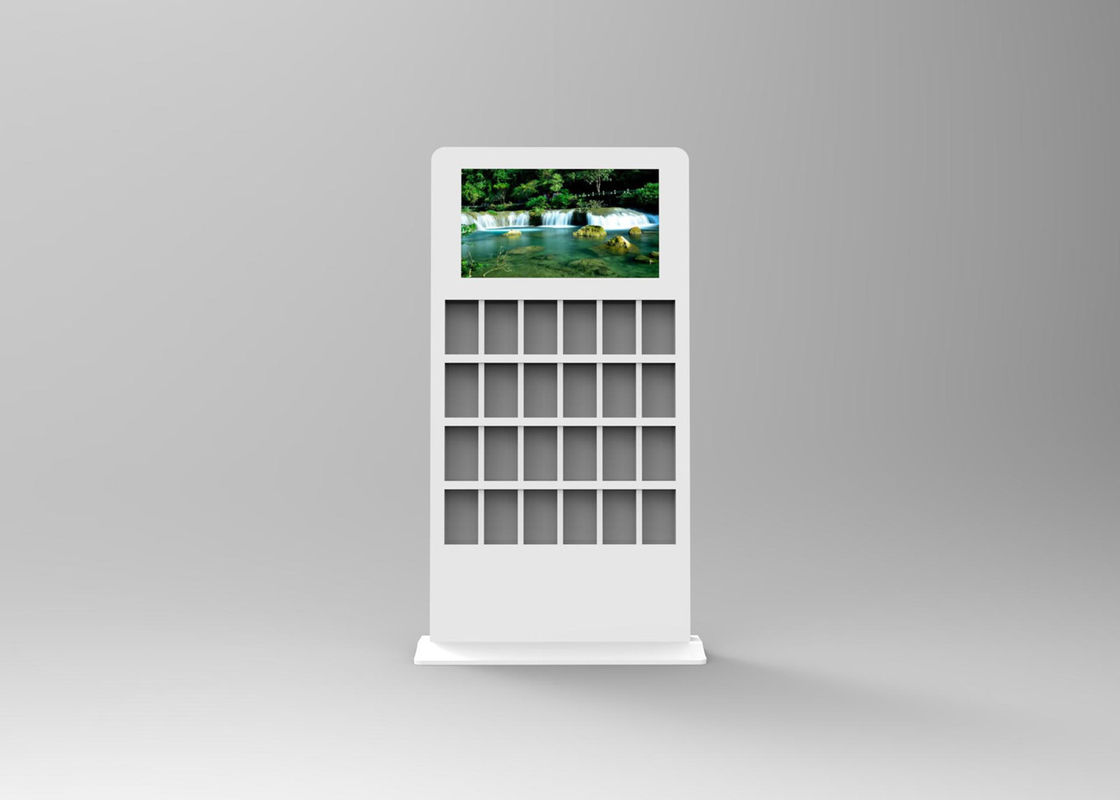

AC240V 32 Inch white color Floor Standing LCD digital signage Kiosk With Brochure Holder

AC240V 32 Inch white color Floor Standing LCD digital signage Kiosk With Brochure Holder

AC240V 32 Inch white color  Floor Standing LCD digital signage Kiosk With Brochure Holder
AC240V 32 Inch white color  Floor Standing LCD digital signage Kiosk With Brochure Holder
AC240V 32 Inch white color  Floor Standing LCD digital signage Kiosk With Brochure Holder
Product Details:
Place of Origin: CHINA
Certification: CE, FCC.ROSH
Model Number: TPK-FT2232
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: negotiate
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 10-15days after receipt of your payment
Payment Terms: , T/T, L/C
Supply Ability: 3000pc per month
Contact Now
Detailed Product Description
Size: 32inch Input Voltage: AC100~240V 50 /60 HZ
Material: 2.0mm Cold-roll Steel Sheet Color: Black, White And Silver Or Customize
Communication: USB/SD/WLAN/RJ45 Warranty: 2 Years
Panel: LG Resolution: 1920 (RGB) × 1080 [FHD]
High Light:

AC240V Floor Standing LCD Kiosk


32 Inch Floor Standing LCD Kiosk


Brochure Holder Interactive Digital Signage

Standing LCD Player Kiosk for Case with Brochure Holder Advertisement in white



Interactive digital signage kiosks are a technology staple for displaying relevant and timely information to engage customers. AI-enabled signage allows operators to interact with customers at a deeper level, providing personalized ad content to drive product conversions and higher average sales orders. Deployers maximize the return on their signage investment and enhance today’s omnichannel shopping experience.


AC240V 32 Inch white color  Floor Standing LCD digital signage Kiosk With Brochure Holder 0

Panel Features
Native Resolution
1920*1080 / 3840*2160 pixels
Aspect Ratio
Contrast Ratio
Viewing Angle
Response Time
Display Color
8 bit/16.7M
Frame Rate
Life Time
>30000 Hrs
OS Functions
OS system
Android 5.1/6.0/7.1, Windows(i3, i5, i7), USB plug&play
Motherboard model
RK3288(RK3399 or A40I(A64) or A40I(A83T) Option)
Quad-core Cortex-A17
Quad-core GPU Mail-T764
DDR 1GB( 2GB /4G Option)
EMMC 8G (16G/32G Option)
Networking support
4G network / LAN / WLAN / Bluetooth4.0
Video format
Picture format
Sofeware Functions
Horizontal/Vertical/Split Screen
Customized Play & Power On/Off
RTC timing clock
System watchdog
Support full seamless switching
Support Web/Local Info.Publish
Input Ports
HDMI*2, LAN/RJ45*1, USB*2, SD*1 TF*1
Output Ports
Earphone*1, Speaker 5W*2
Power Feature
Power supply
100V-240V, 50-60 Hz
Power Saving
Power consumption( Watt)
Warranty Card*1, User manual*1, Remote Control, Power Cord*1, WIFI Antenma*1


AC240V 32 Inch white color  Floor Standing LCD digital signage Kiosk With Brochure Holder 1AC240V 32 Inch white color  Floor Standing LCD digital signage Kiosk With Brochure Holder 2


Android/Wifi system


CPU: Allwinner A83T Cortex-A7 Eight-Core CPU 2GHz/RK3288

GPU: PowerVR SGX544
O/S: Android 4.4.4
Networking: RJ45
Built-in Wireless 802.11b/g/n,WAPI(Ralink 8188)

USB Wireless Dongle
Interface: USB*2,SD*1,VGA*1,RJ45*1,Audio out*1,SIM port*1

Ports: USB*2,SD*1,VGA*1,RJ45*1,Audio out*1,SIM port*1
OSD Language: Chinese, English, Spanish, Russian, German, French, Arabic, etc.
Support split screen: Any split screen display, multiple window video player, can achieve different window showing different content


Windows/Linux system


Processor: Intel Core i3-3217U @ 1.80GHz /I5 /I7

GPU: Intel HD4000 Graphics
Chipset: Intel Chipset HM65
Memory: DDR3 4GB ,Support up to 8GB
Ethernet: Realtek GBE RJ45,8111E
Audio: Realtek HD Audio,Support Line-in,Line-out,Mic-in,Spdif,Speaker
Display: VGA1,LVDS.
Storage: 128G SSD

IR touch screen


Touch technology: Infrared multi touch technology

Touch model: 6 touch points
Induction object: Finger, pen, any opaque objects
Size of induction: Greater than or equal to 5 mm in diameter
Resolution: 8192*8192
Response time: First point 25ms consecutive points 8ms
Cursor speed: ≥200dots/second
Glass Thickness: 4mm Normal or Anti-glare tempered glass


Q:How long is the warranty time for your products?
A: Our officially promised warranty time is one whole year after delivery at best.
Q: When will you make the delivery?
A: We can make the delivery within 3-15 working days or depend on the size and quantities of your order.
Q:what brand of screen are you using?
A:we are using Samsung,LG and AUO screen.
Q: Do you have your own enclosure factory?
A:Yes we do have our own enclosure factory,and we have the best structural Engineer,we hope to provide you with best screen and shape,so OEM is also welcome.
Q:Do you give any discount ?
A: We are Manufacturer, so we are able to give you the best price and best service at the same time.
Q:What payment methods your company accept?
A:We accept most of the payment methods,but mainly accept T/T, WesternUnion,Paypal and MoneyGram
Shenzhen TOPADKIOSK is highly specialized in the field of LCD Digital Signage products, LCD DISPLAY, QLED display, OLED display. We have developed our own LCD products Series, such as digital signage, all In One PC, touch screen, lcd video wall, outdoor IP67 High Brightness LCD Digital Signage, etc, the size is available with 7" Inch to 98 Inch etc. These products have been widely used in the USA, Europe, Southeast Asia, the Middle East, Africa and other countries and regions. These products are suitable for advertising in lots of areas, such as buildings, shops, hotels, supermarkets, railway stations, bus stations, airports, taxis, buses and other outdoor areas. Quality and Service is Our Symbol.The most important factor for us to win our customers' hearts and found the long-term business relationships with our customers is quality and service. With these years' research, development and manufacture, we have accumulated our special experience and methods to control the quality through the whole process of designing, material purchasing, manufacturing and marketing. Especially for the material quality, we have founded firm relationships with our suppliers and even invested in some supply companies to directly control quality. We offer 7*24 hours service to all our clients. Our sales person and after-selfteam will keep on line to answer and solve all questions for you. Providing services beyond our customers' expectations is our purpose. Our excellent pre-sales services and after-sales services have earned us many customers' hearts. Customized designs are most welcome! Our advantage is to give whole solution to our clients according to their needs.
