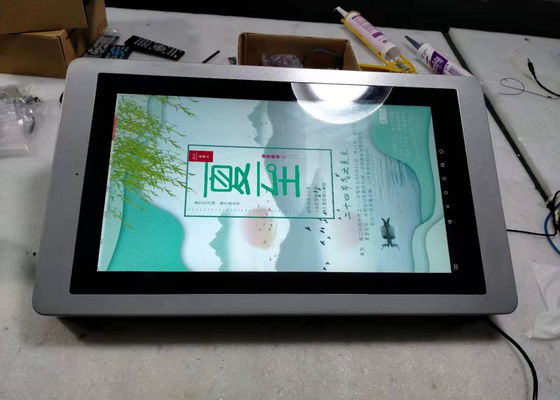

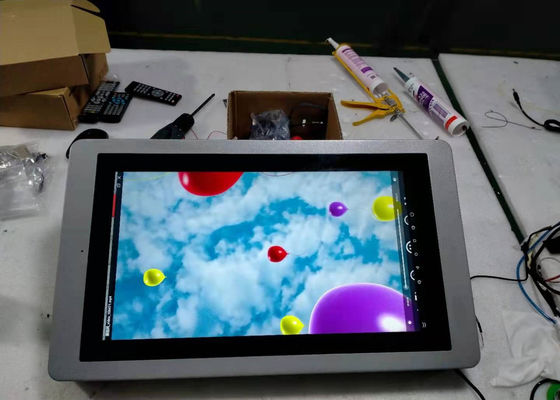

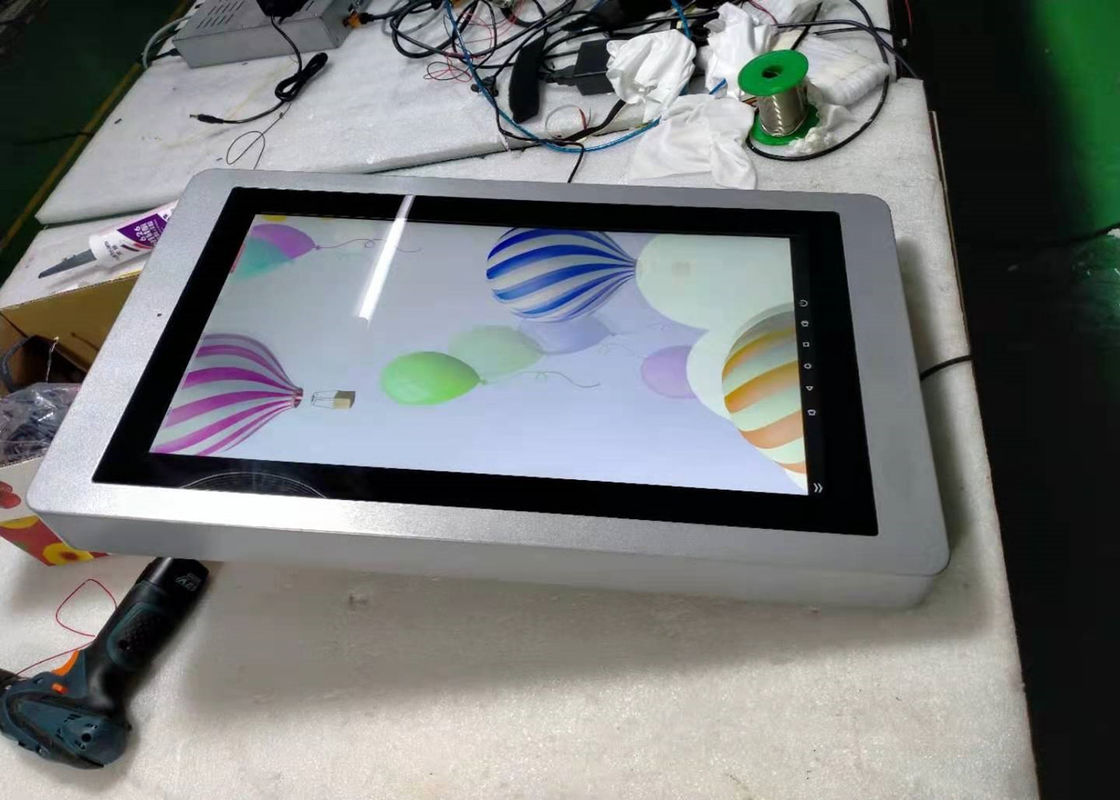

Digital Signage Outdoor Displays 65inch HD AC115V IP65 Fan Cooling

Digital Signage Outdoor Displays 65inch HD AC115V IP65 Fan Cooling

Digital Signage Outdoor Displays 65inch HD AC115V IP65 Fan Cooling
Digital Signage Outdoor Displays 65inch HD AC115V IP65 Fan Cooling
Digital Signage Outdoor Displays 65inch HD AC115V IP65 Fan Cooling
Product Details:
Place of Origin: CHINA
Brand Name: TOPADKIOSK/OEM
Certification: CE&Rohs&FCC
Model Number: TPK-OW5570
Payment & Shipping Terms:
Minimum Order Quantity: 1PC
Price: negotiate
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 10-15days after receipt of your payment
Payment Terms: T/T, , MoneyGram
Supply Ability: 3000pcs per month
Contact Now
Detailed Product Description
Pnale Size: 43inch 55 Inch 65inch Panel: 100% A+ Grade Brand Panel
Material: Metal Case + Toughened Glass Glass: AR Bonding,TM Glass,high Transparency
Connectivity: LAN, WIFI, 3G(Optional) Cooling System: Fan Cooling System Outdoor Totem Lcd Advertising Display
Anti-UV: Yes,insulate 99.9% UV Working Environement: -40~+55 Deg C,Humidity 50%
High Light:

IP65 Digital Signage Outdoor Displays

,

AC115V Digital Signage Outdoor Displays

,

65in Outdoor Digital Advertising Screens

Digital Signage Outdoor Displays 65inch HD AC115V IP65 Fan Cooling






An outdoor digital signage network can make your business up to 60 percent more profitable. The ‘word on the street’ is that digital signage outdoors is fuelling growth in consumer spending, according to global consumer research. Question is, how do you marry outdoor digital signage to your business to boost sales?



Active area size (W x H) 43”(1211*682mm)
Aspect Ratio 16:9 Portrait
Panel resolution (pixels) 1920*1080 (Full HD)
Luminance of white (Brightness) 2000 cd/m²
Contrast ratio 3000:1
Response time 5 ms
Colour Range 16.7 Million colours (max)
Viewing angle 178° horizontal / 178° vertical
Working parameters
Video inputs VGA HDMI
Audio Interface AUDIO IN/OUT
Auto Brightness Control Yes (Optional)
Temperature control system Intelligent air conditioner
Operating temperature range -40°C to +55°C
Storage Temperature 0 to 50C
Operating Humidity 5% to100%
Input voltage AC 108-115V,50/60Hz
AC 208-240 V, 50/60 Hz
Power Consumption 1.3 kW (Mainly for AC starting)
Waterproof enclosure
IP Class IP65
Enclosure material Zinc coated steel
Front glass type Strengthen 6mm AR glass
Packing Size 2160*960*520 mm
Weight 176kg



Configuration options:



1. Touch screen option Nano, Capacitive
2. Network version LAN/WIFI/3G as options, remote control from server
3. All in one PC Integrated PC board, custom hardware.
4. Standalone Ad function With professional advertising playerboard.
5. Monitor only With DVI/VGA input, flexible connecting your device.





Advantage

Digital Signage Outdoor Displays 65inch HD AC115V IP65 Fan Cooling 0Digital Signage Outdoor Displays 65inch HD AC115V IP65 Fan Cooling 1



Sun Readable

1. High brightness, high definition full HD lcd panel;
2. Anti-refiective glass with less than 3%low refiectivity;
3. Low humidity and constant temperature inner system enviroment allows LCD panel to perform optimally;
4. With light sensor, automatically adjust the brightness, environmental friendly and maximum energy saving.

Waterproof

1. Unique patented sealing technology;
2. Outdoor security anti-corrosion more than 8 years;
3. IP65 protection grade enclosure dust can not enter into the display under the 20 mbar pression, harmless when water jetting in ever direction.

Extreme Temperature

1. Intelligent air conditioner cooling system integrated cooling and heating;
2. Unique patented intelligent temperature control technology;
3. Work stably and efficiently in wide temperature range from -40°C to +55°C;
4. housing enclosure made of non-oxidizing material zinc coted steel.

Vandal Proof

1. Strong steel housing protects inner system from vandalism;
2. AR bonding TM protection 6mm laminated / tempered glass prevents direct LCD panel assault;
3. Easy to remove and reinstall housing protective makes provide simple but effective protection of core enclosure;

4. Enclosed parts are not reachable to passerby.



Digital Signage Outdoor Displays 65inch HD AC115V IP65 Fan Cooling 2

Digital Signage Outdoor Displays 65inch HD AC115V IP65 Fan Cooling 3



Digital Signage Outdoor Displays 65inch HD AC115V IP65 Fan Cooling 4



Digital Signage Outdoor Displays 65inch HD AC115V IP65 Fan Cooling 5

Digital Signage Outdoor Displays 65inch HD AC115V IP65 Fan Cooling 6



Digital Signage Outdoor Displays 65inch HD AC115V IP65 Fan Cooling 7

Digital Signage Outdoor Displays 65inch HD AC115V IP65 Fan Cooling 8Digital Signage Outdoor Displays 65inch HD AC115V IP65 Fan Cooling 9
