Shenzhen TopAdkiosk Display Technology Co., Ltd.
Providing innovation and cost-effective digital signage solutions
Sales & Support:

|
| Place of Origin: | CHINA |
| Brand Name: | TOPADKIOSK/OEM |
| Certification: | CE&Rohs&FCC |
| Model Number: | TPK-W3204 |
| Minimum Order Quantity: | negotiate |
|---|---|
| Price: | negotiate |
| Packaging Details: | Packed in carton firstly,and then reinforced with wooden case for outer packing |
| Delivery Time: | 10-15days after receipt of your payment |
| Payment Terms: | T/T, , MoneyGram |
| Supply Ability: | 3000pcs per month |
| Type: | TFT | Max Resolution: | 1920*1080 |
|---|---|---|---|
| Viewing Angle: | 178/178 | Application: | Indoor |
| Contrast Ratio: | 4000:1 | Nput Voltage: | AC100V-240V (50HZ-60HZ) |
| Brightness: | 400cd/m2 | Design: | Wooden Frame |
| Digital Signage: | Poster Advertising Players | LCD Screen: | 32 Inch 43 Inch 49 Inch |
| Color: | Wooden Color | Mainboard: | RK3288 |
| High Light: | 4k Hd Video Digital Signage Display,Nft Digital Signage Display |
||

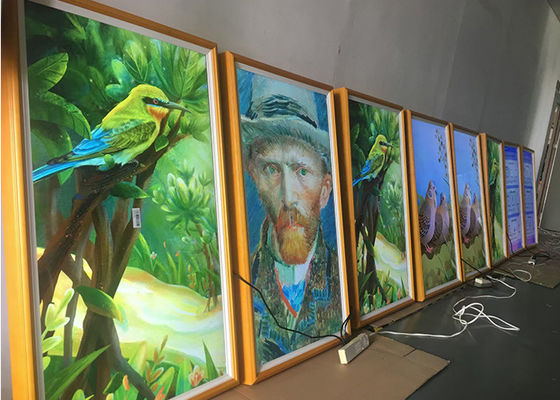

21.5/32 inch digital frame screen nft display 4k hd video Digital Signage and display
Digital signage refers to a digital installation that enables the display of content (text, video, image, or any other media), in this case, for communication purposes. This is made possible by display technologies such as LED, LCD, and projection.
The objective of digital signage is to pass helpful information to students, teachers, admin staff, and visitors in a more targeted, efficient, and attention-grabbing way. Institutions that have invested in digital signage can communicate important information easily, boost classroom engagement, and create an overall tech-savvy environment where information flows freely.
|
Technical specification |
|
|
Description |
Wall Mounted LED Digital Menu Board for Bars Restaurants and Retail Stores |
|
Screen specification
|
screen Level : A |
|
size : 10-100" |
|
|
resolution: 1920×1080P |
|
|
display color: 16.7M |
|
|
responding time (ms): 6 |
|
|
contrast: 4000:1 |
|
|
brightness: 300-500cd/m2 |
|
|
viewing angle: H:178° V:178° |
|
|
Standard data
|
CPU: Intel i3 (i5/i7) or RK3288, RK3368,RK3399 |
|
HDD : 500 G/SSD:120G or Adroid SSD 16g/32g |
|
|
memory :4 G DDR3 or Adroid 2G/4G |
|
|
Decoding resolution : 1920*1080p, support 4k |
|
|
operating system :windows 7/8/10 or Android 5.1 (upgrade) |
|
|
graphics based frequency:350MHz |
|
|
processor frequency :3.6 GHz |
|
|
speaker: 2*10W |
|
|
LVDS |
1 drive 50/60Hz LCD screen |
|
Port |
2*USB2.0,2*USB3.0,RJ-45,LAN ,Audio ,,HDMI,VGA,DC |
|
Menu language |
Chinese, English, Spanish, Russian, German, French, Arabic |
|
Touch function ( optional ) |
IR TOUCH / Grid touch/ Capacitive Touch |
|
WIFI |
yes, wifi 3.0 /5.0 |
|
Input voltage |
AC100-240v 50/60HZ |
|
Operating environment |
working temp :0℃~50℃/20%~80% storage temp:-10℃~60℃/5--95% |
|
Lifespan |
50000 hours |
|
TFT level |
A leave all brand new LCD |
|
Other Optional |
Camera , Printer , scanner , Logo , Mirror , High brightness screen ,3G/4G/HDMI input etc |
| Features | ||
| 1. Application fields:public places ,for example,shopping mall, restaurant,airport, square, commercial buidings,etc. | ||
| 2. Outer shell is made of extra good quality metal material and tempered glass. | ||
| 3. This machine is of android OS design, which could be connected to internet,and supports remote office cotrol . | ||
| 4. Remotely report system utilization and memory usage. | ||
| 5. Control, monitor and design screen layouts remotely by the remote control office. | ||
| 7. Color for metal outer frame is available with Black color, Shinning-silver color, Golden Color, cream-white color; Color Is Optional. | ||
| 8. APPs are available on Google Play and APP Store | ||
| 9. Easy connection to wifi. |
