Shenzhen TopAdkiosk Technology Co., Ltd.
Providing innovation and cost-effective digital signage solutions
Sales & Support:

|
| Place of Origin: | China Guangdong |
| Brand Name: | TOPADKIOSK / OEM / ODM |
| Certification: | CE&Rohs&FCC |
| Model Number: | TPK-WD65008 |
| Minimum Order Quantity: | negotiate |
|---|---|
| Price: | negotiate |
| Packaging Details: | Packed in carton firstly,and then reinforced with wooden case for outer packing |
| Delivery Time: | 10-15days after receipt of your payment |
| Payment Terms: | T/T, , MoneyGram |
| Supply Ability: | 3000pcs per month |
| Type: | TFT | Max Resolution: | 1920*1080 |
|---|---|---|---|
| Mainboard: | RK3288 OR RK3399 | Application: | Indoor / Shop Window |
| Contrast Ratio: | 5000:1 | Input Voltage: | AC100V-240V (50HZ-60HZ) |
| Brightness: | 400nits | Design: | Super Narrow Bezel |
| Digital Signage: | Poster Advertising Players | LCD Screen: | 43inch / 50inch / 55inch / 65inch |
| High Light: | FCC LCD Screen For Shop Window,Narrow Bezel LCD Advertising Player,400nits LCD Advertising Player |
||

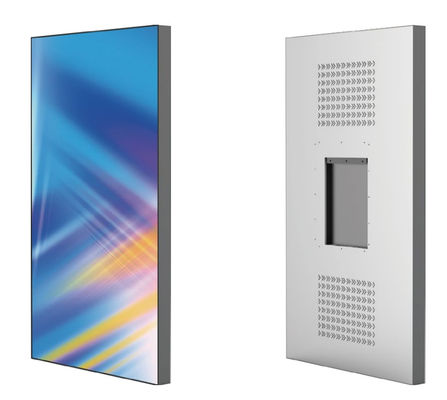

Super Narrow Bezel 32 43 49 55 65 75 86 Inch High Bright Display Shop Window Facing LCD Advertising Player
A liquid-crystal display (LCD) ,They use the same basic technology, except that arbitrary images are made from a matrix of small pixels, while other displays have larger elements. LCDs can either be normally on (positive) or off (negative), depending on the polarizer arrangement. For example, a character positive LCD with a backlight will have black lettering on a background that is the color of the backlight, and a character negative LCD will have a black background with the letters being of the same color as the backlight. Optical filters are added to white on blue LCDs to give them their characteristic appearance.
| Model No.: TX-A650W1 | ||||||
| Panel Features | Input Ports | |||||
| Screen Size | 65" | HDMI IN | Option | |||
| Active Display Area | 1428.48 (H) x 803.52 (V)mm | HDMI OUT | *1 | |||
| Pixel Pitch (mm) | 0.248 (H) x 0.744 (V) | LAN/RJ45 | *1 | |||
| Native Resolution | 1920*1080 / 3840x2160 RGB | TF | *1 | |||
| Aspect Ratio | 16:9 | USB | *2 | |||
| Brightness (Type) | 300 Nits | SD | Option | |||
| Contrast Ratio (Type) | 5000:1 | Output Ports | ||||
| Viewing Angle | 178(H)/178(V) | Earphone | *1 | |||
| Response Time (Gray to Gray) | 8ms | Coaxial | *0 | |||
| Display Color | 8 bit/16.7M | Audio Feature | ||||
| Frame Rate | 60Hz | Audio frequency output | left and right channels Speaker 5W*2 |
|||
| Backlight | LED | Power Feature | ||||
| Life Time | >30000 Hrs | Power supply | 100V-240V,50-60 Hz | |||
| Functions | Power Saving | ≤1W | ||||
| OS system | Android7.1,9.0 | Power consumption( Watt) | ≤145W | |||
| Motherboard model | RK3288,Jingchen 972 | Mechanical Design | ||||
| CPU | Quad core Cortex-A17+Quad core GPU Mail-T764 | Chassis Colors | Silver ,Black,Option | |||
| Main frequency | 1.8 GHz | Toughened Glass | NO | |||
| RAM | DDR 2GB( 4G Option) | Curvature design | NO | |||
| Flash | EMMC 8G (16G/32G Option) | Wall Mount | Yes | |||
| Decoding resolution | Up to 1080P | Front Control (key) | NO | |||
| Networking support | 4GEthernet, support WIFI / Bluetooth 4.0 | Size description of the whole machine | ||||
| Video format | RMVB,FLV,AVI,MOV,WMV,MP4,MPEG etc. | Overall size(Without wall hanging) | 1444x820x65mm | |||
| Picture format | JPG, JPEG, BMP, PNG, GIF, | Product size (including rack) | 1444x820x65mm | |||
| Audio | MP4,WMA,WAV,APE,FLAC,AAC etc. | Packing Carton Dimension(W×D×H) | 1584x180x969mm | |||
| RTC timing clock | support | Net Weight(Wo/ the Stand) | About 37Kg | |||
| OS update | USB update | Gross Weight | About 40kg | |||
| OSD Language | English/Chinese(Brazil) | Hanging rack (optional) | Wall mount / mobile stand x1 (optional) |
|||
| GPS | External GPS(Option) | Accessary | ||||
| System watchdog | support | WIFI Antenma | 0 | |||
| Product features | Horizontal/Vertical/Split Scree |
Remote Control | 1 | |||
| Power Cord | 1 | |||||
Customized Play & Power On/Off |
Warranty Card | 1 | ||||
| User manual | 1 | |||||
upport full seamless switching |
Wall bracket | 1 | ||||
| key | 1 | |||||
Support Web/Local Info.Publish |
||||||
| Features | ||
| 1. Application fields:public places ,for example,shopping mall, restaurant,airport, square, commercial buidings,etc. | ||
| 2. Outer shell is made of extra good quality metal material and tempered glass. | ||
| 3. This machine is of android OS design, which could be connected to internet,and supports remote office cotrol . | ||
| 4. Remotely report system utilization and memory usage. | ||
| 5. Control, monitor and design screen layouts remotely by the remote control office. | ||
| 7. Color for metal outer frame is available with Black color, Shinning-silver color, Golden Color, cream-white color; Color Is Optional. | ||
| 8. APPs are available on Google Play and APP Store | ||
| 9. Easy connection to wifi. |
