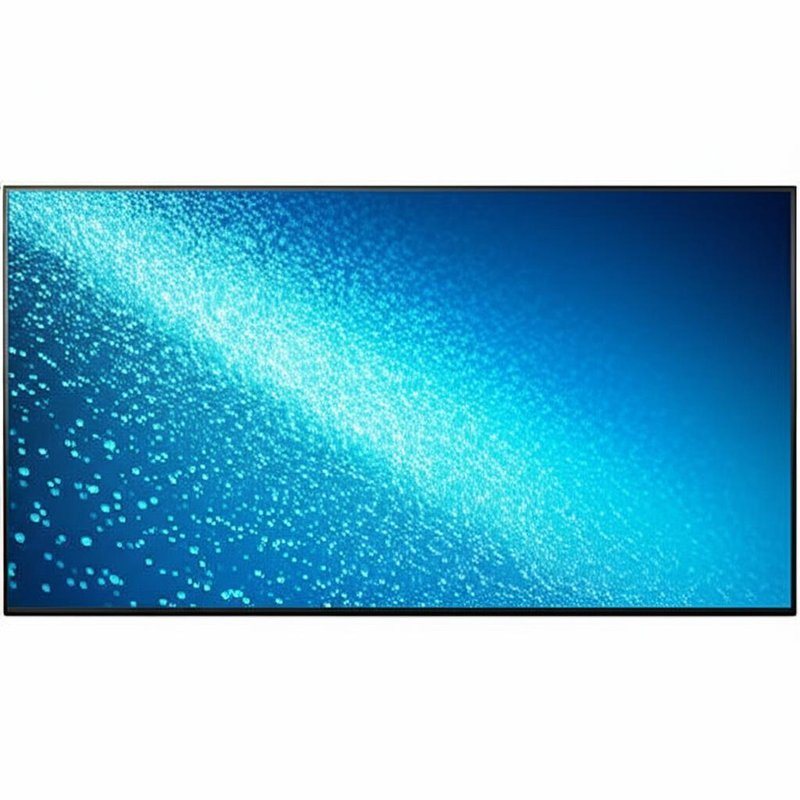

Name: 88inch Bar LCD Screen with 3840*2160 Resolution 700cd/m2 Brightness and Dual Core ARM Cortex A9 1.7GHz Processor
Brand: Shenzhen TopAdkiosk Display Technology Co., Ltd.
Price: 2389 USD
Availability: InStock

Home Products Stretched LCD Display

88inch Bar LCD Screen with 3840*2160 Resolution 700cd/m2 Brightness and Dual Core ARM Cortex A9 1.7GHz Processor

Product Details:

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	2389

Contact Now

Detailed Product Description

Screen Size:	88 Inches	Display Area:	87.8 Inches (2230.2mm Diagonal)
Panel Dimensions:	2158.3mm(H) X 611.2mm(V) X 38.3mm(B/D)	Resolution:	3840x1080 Pixels
Brightness:	700cd/m2	Color Depth:	10bit (1.07 Billion Colors)
Response Time:	6.5ms	Contrast Ratio:	4000:1
Viewing Angle:	178°/178° (H/V)	CPU:	Dual Core ARM Cortex A9 1.7GHz
GPU:	Quad Core ARM Mali-400 MP	System RAM:	DDR3 2GB
System ROM:	8GB NAND Flash	Operating System:	Android 9.1
Power Supply:	AC 110V~240V, 50/60HZ
Highlight:	3840*2160 Resolution Bar LCD Screen , 700cd/m2 Brightness Bar LCD Screen , Dual Core ARM Cortex A9 1.7GHz Bar LCD Screen

88inch Shelf Bar LCD Screen

High-quality 88-inch bar LCD screen/display designed for various locations and applications. Features wall-mount Android network players for easy advertisement updates through internet connectivity.

Key Specifications

Panel Parameter	Details
Size	88"
Display Area	87.8 inches (2230.2mm) diagonal
Brand	LG original panel
Resolution	3840 * 1080 pixels
Brightness	700cd/m² (Center 1point, Typ.)
Color	10bit(D), 1.07 Billion colors
Response Time	Transmissive mode, Normally black
Contrast	4000:1
View Angle	178° (R/L), 178° (U/D)

System Specifications

Component	Specification
CPU	Dual core ARM Cortex A9 1.7GHz
Mainboard	RK3288
GPU	Quad core ARM Mali-400 MP
System RAM	DDR3 2GB
System ROM	8GB NAND Flash memory
Storage	TF/USB
Decoding Resolution	MAX 1080P

Connectivity & Media Support

Type	Details
I/O Connectors	USB HOST, USB OTG, 3G module, LVDS Interface, Audio input/output, VGA, HDMI
Wired Network	Realtek RTL8103EL
Audio	HD audio 8 (Realtek ALC888) audio system
Video Formats	MPEG1/2/4, H.264, WMV, MKV, TS, flv
Audio Formats	MP3
Photo Formats	JPG, JPEG, BMP, PNG, GIF

Operating Environment

Operating Temperature	0°C to 40°C
Storage Temperature	-20°C to 60°C
Humidity	20%-80% RH at 40°C
Power Supply	AC 110V~240V, 50/60HZ

Construction & Packaging

TFT panel grade: Imported new panel
Case: Cold rolled steel with powder coating + toughened glass surface
Package: Inner 4CM PE foam, Middle export carton box, Outer export wooden box

Available Versions

Android Version

Panel Brand: Samsung/LG
CPU: Quad-Core/Octa-Core
RAM: 2GB/4GB
ROM: 8GB/16GB
OS: Android 5.1 or above
Supports 1080P video decoding
Multiple interface options including HDMI, USB, RJ45
Optional touch screen (IR or capacitive)

PC Version

Panel Brand: Samsung/LG/AUTO/LCD/LED/Chimee
CPU: i3, i5, i7 options
RAM: 4GB/8GB
Storage: 500GB HDD or 64/120/240GB SSD
OS: Windows or Linux
Multiple interface options
Optional touch screen functionality

Key Features

Ideal for public spaces: shopping malls, restaurants, airports, commercial buildings
Premium construction with metal frame and tempered glass
Android OS with internet connectivity and remote control capabilities
Automatic content playback based on schedule
Remote monitoring and management of system utilization
Multiple color options for metal frame
Easy WiFi connection
Access to Google Play and APP Store

Additional Images

Lead Time Information

Hot sale models: 2-10 units in stock, ready for immediate delivery
Standard products: 15-25 working days
Customized products: 25-30 days (depending on complexity)

All products can be customized with different versions including USB version, Network version, PC version, and Android OS version with optional touch screen functionality.

Tag:

Contact Person: Jason Cai

Tel: 8613509622595

Fax: 86-755-99889977
