| Place of Origin: | CHINA |
| Brand Name: | TOPADKIOSK/OEM |
| Certification: | CE&Rohs&FCC |
| Model Number: | TPK-H270-1 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | negotiate |
| Packaging Details: | Packed in carton firstly,and then reinforced with wooden case for outer packing |
| Delivery Time: | 10-15days after receipt of your payment |
| Payment Terms: | T/T, , MoneyGram |
| Supply Ability: | 3000pcs per month |
| Voltage: | AC110 - 240V (50Hz - 60Hz) | Output Port: | USB/VGA,HD |
|---|---|---|---|
| View Angle: | 360 Degree | Video Format: | MP4,AVI,WMV,JPEG |
| Resulution: | 1920*1080 | Working Temperature:: | 0-50℃ |
| Material: | Metal Case + Toughened Glass | I/O Controller: | USB, HDMI, LAN, VGA |
| Highlight: | hologram display case,holographic showcase |
||

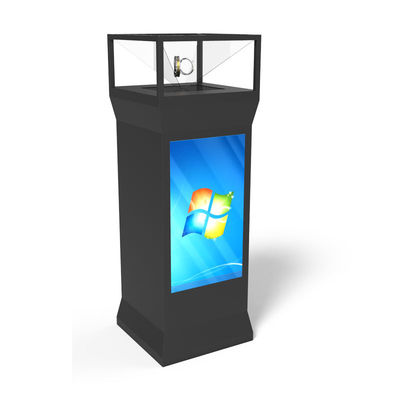

LED 270 Degrees 3 Sides 3D Holographic Display For Exhibition
Key Features:
A+ LCD panel
FHD 1920x1080
Response time: 5ms
7*24 working uninterrupted
Multi-language
Solid cold rolled aluminum-alloy frame,
Anti-glaring tempered glass,
Locks and Keys
Options:
Player Alone / Network
Android / X86(Windows)
WIFI/3G/4G/LAN/HDMI
|
|
Model NO
|
TPK-215SN
|
|
Panel Type
|
A+ TFT-LCD Panel 21.5 inch
|
|
|
View Area
|
476.6x268.1 mm (H*V)
|
|
|
Show Ratio
|
16:9 (H:V)
|
|
|
Backlight
|
WLED
|
|
|
Resolution
|
1920×1080
|
|
|
Displaying Color
|
16.7M
|
|
|
Brightness
|
≥250 nits
|
|
|
Contrast Ratio
|
≥3000:1
|
|
|
Visual Angle
|
178°(H) / 178°(V)
|
|
|
Response Time
|
≤5ms
|
|
|
Life Expectance
|
≥60000 Hours
|
|
|
|
Enclosure
|
Metal case + aluminum-alloy frame
|
|
Panel Protection
|
tempered AG glass (4mm Morse level 7)
|
|
|
Speaker
|
2*8W Stereo
|
|
|
I/O Interface
|
USB/HDMI/VGA/MIC/WiFi/LAN/Power Port
|
|
|
Color
|
Black, Silver, Golden, White (Customized)
|
|
|
Unit Dimension
|
To be confirmed due to customization (mm)
|
|
|
N.W
|
To be confirmed due to customization (KG)
|
|
|
Working Temp
|
0℃ to 50℃
|
|
|
Storage Temp
|
-20℃ to 60℃
|
|
|
Humidness
|
5% to 95%
|
|
|
Certificates
|
ISO9001/CCC/CE/FCC/RoHS
|
|
|
Accessories
|
Remote Control, AC Power Cord, Key, Rack, Instruction, Approval Certificate, Warranty Card
|
|
|
|
Play mode
|
Circulation, timing, inter-cutting etc.
|
|
Network
|
Ethernet, wifi, 3G, 4G is optional
|
|
|
Video format
|
wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc.
|
|
|
Picture format
|
BMP, JPEG, PNG, GIF etc
|
|
|
Networking protocol
|
TCP IP/PPPOE/ICMP/DHCP/DNS/FTP/HTTP
|
|
|
|
Power Voltage
|
AC100V-240V (50/60Hz)
|
|
Consumption
|
≤65W (according to Motherboard and CPU option.)
|
|
|
Standby
|
≤3W
|
It can be customized with a certain configurations. Android version can be updated.
|
Operating System
|
Android 5.1
|
|
Chip
|
Rockchip RK3288
|
|
CPU
|
Quad core ARM Cortex A17(Max 1.7 GHz)
|
|
GPU
|
Quad core ARM Mail-764
|
(It can be customized or named with a certain configurations if necessary.)
|
Option1
|
C1037U 1.8GHz / Memory: ≥4GB / HardDrive:128GB
|
|
Option2(=Laptop)
|
i3-3217U 1.8GHz / Memory: ≥4GB / HardDrive:128GB
|
|
Option3(Standard)
|
i3-4150 3.5GHz / Memory: ≥4GB / HardDrive:500GB
|
|
Option4(=Laptop)
|
i5-3347U 2.6GHz / Memory: ≥4GB / HardDrive:128GB
|
|
Option5
|
i5-4460 3.2GHz / Memory: ≥4GB / HardDrive:500GB
|
|
Option6
|
i7-4790 3.6GHz / Memory: ≥4GB / HardDrive:500GB
|
FAQ:
Q:How long is the warranty time for your products?
A: Our officially promised warranty time is one whole year after delivery at best.
Q: When will you make the delivery?
A: We can make the delivery within 3-15 working days or depend on the size and quantities of your order.
Q:what brand of screen are you using?
A:we are using Samsung,LG and AUO screen.
Q: Do you have your own enclosure factory?
A:Yes we do have our own enclosure factory,and we have the best structural Engineer,we hope to provide you with best screen and shape,so OEM is also welcome.
Q:Do you give any discount ?
A: We are Manufacturer, so we are able to give you the best price and best service at the same time.
Q:What payment methods your company accept?
A:We accept most of the payment methods,but mainly accept T/T, WesternUnion,Paypal and MoneyGram
