| Place of Origin: | CHINA |
| Brand Name: | TOPADKIOSK/OEM |
| Certification: | CE&Rohs&FCC |
| Model Number: | TOPAD-23-123(3K Display 3:2) |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | 260USD |
| Packaging Details: | Packed in carton |
| Delivery Time: | 3-5days after receipt of your payment |
| Payment Terms: | T/T, , MoneyGram |
| Supply Ability: | 3000pcs per month |
| Display Ratio: | 3:2 | Display Resolution: | 2880*1920 |
|---|---|---|---|
| Plugs Type: | Multiple Types | Hard Drive: | SSD+HDD |
| Sheating Materials: | Aluminium | Panel Type: | IPS |
| Operation System: | Windows11 | Feature: | Detachable Keyboard |
| Video Memory: | Main Memory Allocated | Thickness: | 10mm |
| Processor Main Frequency: | 2.70GHz | Processor Core: | Quad Core |
| WLAN: | Wifi 802.11 Ac | Screen Size: | 12.3'' |
| Processor Manufacture: | Intel | Processor Type: | Intel Celeron |
| Graphics Card Type: | Integrated Card | Weight: | 3000g |
| Memory Capacity: | 8 GB | Screen: | 3000*2000 IPS, LCD Screen Monitor |
| CPU: | Intel HD Graphics 500 | Optical Drive Type: | External Optic Drive Compatible |
| Use: | For Home Office,School Student, And Gaming | Interface: | USB*3, 3.5mm Headphone*1, TF*1, DC 3.5mm, BT4.2 |
| Storage Capacity: | 500G HDD, 1TB HDD, 2TB HDD, 128GSSD,256G,512G SSD | Production: | OEM/ODM/RTS Stock |
| Color: | White/silver/black/red/multiple Color Available | Network: | Support LAN/WLAN Network |
| Battery: | 7.4V, 4000mAh | HS Code: | 8471800000 |
| Warranty: | 1 Year | ||
| Highlight: | 8GB RAM Interactive Multi Touch Table,12.3inch Interactive Multi Touch Table,8GB RAM Windows Touch Table |
||

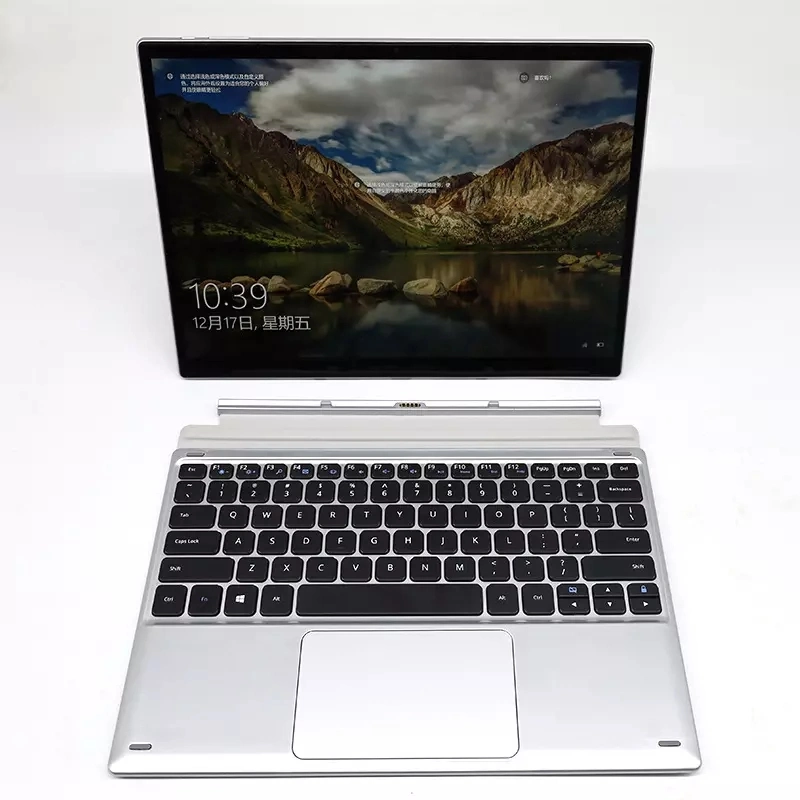

Windows 2 in 1 Interactive Multi Touch Table Intel Celeron J4125 8GB RAM
Products Overview
| Model No. | TOPAD-23-123(3K Display 3:2) |
| LCD | 12.3 inch 2880*1920 IPS high brightness |
| Processor | Intel® Celeron® Processor J4125 4M Cache, up to 2.70 GHz |
| GPU | Intel® UHD Graphics 600 |
| RAM | onboard 8 GB DDR4 |
| TP | G+G 10-point touch |
| Storage | 64GB Emmc/ +128 GB/256GB/512GB+1TB SSD OPTIONAL |
| Camera | front 2.0 Mega pixels |
| Wifi | 802.11 b/g/n/ac |
| Bluetooth | BT 4.0 |
| I/O ports | Type-c*2, ,Audio Jack*1,TF card*1 |
| Battery | 7.6V 3500mAh 30.4Wh ,working time 6 hours |
| OS | win 10/win 11 ready |
| Charger | 12V 2A DC3.5 |
| Bullet Points | Ultra-narrow bezel;high brightness LCD;Dual hard drives(eMMC+SSD slot); support pogo pin keyboard |
| Quantity(pieces) | 1 - 200 | >200 |
| Lead time (days) | 7 | To be negotiated |
|
Major Configuration
|
|||
|
Product Form
|
Product Form
|
Surface
|
|
|
Dimenssion
|
275.2*199.0*9.2mm
|
|
|
|
CPU
|
Type
|
Intel® Celeron® Processor J4125
|
Gemini Lake Optional
|
|
Speed
|
2.00 GHz to 2.70GHz GHz
|
|
|
|
GPU
|
Type
|
Intel® UHD Graphics 600
|
|
|
RAM
|
LPDDR4
|
8G
|
|
|
ROM
|
capacitity
|
128G
|
256GB,512GB, 1T is optional
|
|
TP
|
Capacitive
|
Yes
|
|
|
Interface type
|
GSL3680
|
|
|
|
Sensor Structure
|
G+G
|
|
|
|
Stylus pen
|
Stylus
|
Yes
|
|
|
Storage
|
eMMC
|
|
|
|
SATA
|
M.2 2280
|
|
|
|
Extended Storage
|
Micro SD card
|
|
|
|
LCD
|
Screen Size
|
LCD IPS 12.3 Inch
|
|
|
Screen Resolution
|
3000 X 2000
|
|
|
|
Battery
|
Type
|
Lithium-ion polymer battery
|
|
|
Capacity
|
7.6V 3500mA 26*92*195
|
|
|
|
Endurance
|
About 2-4H
|
40% brightness plays video
|
|
|
Hardware
|
|||
|
Type
|
Details
|
Descriptions
|
Remarks
|
|
Camera
|
Front
|
100W USB
|
with LED
|
|
Audio
|
MIC
|
Yes
|
|
|
Speaker
|
Left & Right
|
8Ω1W*2
|
|
|
Sensors
|
Accelerometer
|
Yes
|
|
|
Hall
|
Yes
|
|
|
|
Keyboard
|
POGO
|
Yes
|
|
|
Indicated
light |
Power
|
Blue
|
|
|
Charging
|
Red&Green
|
charging red and full green
|
|
|
KEY
|
Power
|
Yes
|
|
|
Volume+
|
Yes
|
|
|
|
Volume-
|
Yes
|
|
|
|
Connectivity
|
|||
|
Type
|
Details
|
Descriptions
|
Remarks
|
|
Wi-Fi
|
Built-in
|
Wi-Fi 802.11 a/b/g/n/ac
|
Wi-Fi 802.11 b/g/n Optional
|
|
BT
|
Built-in
|
Yes
|
|
|
Interface
|
|||
|
Type
|
Details
|
Descriptions
|
Remarks
|
|
I/O Port
|
SD Solt
|
Micro TF x1
|
|
|
Audio Jack
|
3.5mm with speckerµphone
|
|
|
|
Type-C
|
Type-C x2
|
Type-C(1):USB3.0/12V2A DC Type-C(2):USB3.0 /HD MI/12V2A DC Type-C
|
|
|
OS
|
|||
|
Type
|
Details
|
Descriptions
|
Remarks
|
|
OS
|
Version
|
Win11
|
|
|
Language
|
Multi-Language
|
|
|
