Name: 55inch Double Sided Touch Screen Kiosk with 1920x1080 Resolution
Brand: Shenzhen TopAdkiosk Display Technology Co., Ltd.
Price: 1,525.00 USD
Availability: InStock

Home Products Digital Signage Kiosk

55inch Double Sided Touch Screen Kiosk with 1920x1080 Resolution

Product Details:

Payment & Shipping Terms:

Minimum Order Quantity:	1

Contact Now

Detailed Product Description

Screen Size:	55inch	Screen Type:	Capacitive
Resolution:	1920*1080	Brightness:	400CD/M²
Response Time:	6.5ms	Contrast Ratio:	4000:1
View Angle:	178°/178°(H/V)	System RAM:	DDR 128MB
System ROM:	NAND FLASH 4G	Decoding Resolution:	1080P
Power Input:	DC 12V/5A	Power Consumption:	≤5W
Shell Material:	Cold Rolled Steel	Glass Type:	Toughened Glass
Operating Temperature:	+5°C ~ +50°C
Highlight:	55 inch touch screen kiosk , double sided digital signage kiosk , 1920x1080 resolution touch kiosk

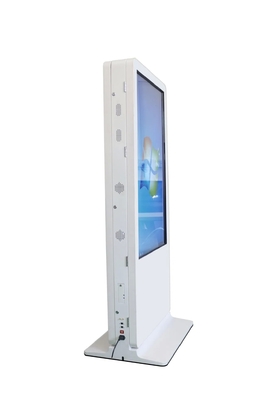

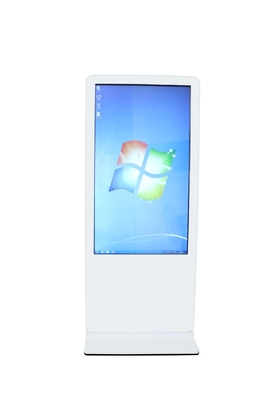

55-inch Double Sided Touch Screen Kiosk with Built-in PC

Professional-grade 55-inch double-sided touch screen kiosk with multiple configuration options including USB, network, PC, and Android versions. Ideal for digital signage, advertising, and interactive kiosk applications.

Available Versions

USB Version: Update advertisements via USB (Single Version)
Network Version: Update advertisements through internet (Android OS and UCOS OS)
PC Version: Functions like a computer (Windows/Android/Linux/Apple OS)
Android Version: Kiosk using Android OS 4.4.4 system

Technical Specifications

USB Version Specifications

Component	Specification
CPU	HD video and audio decoder chip
System RAM	DDR 128MB
System ROM	NAND FLASH 4G
Storage	SD/USB
Decoding resolution	MAX. 1080P
O/S	UCOS
USB 2.0 Port	1 x USB Host, 1 x USB OTG
Serial Port	1 x Serial Port
I2C Interface	1 x I2C Interface
LVDS Interface	1 x can directly drive 15 ~ 100 inch LCD screen, 50/60Hz
Audio Out	1 x Stereo Audio Out (2 x 10W/8Ω speaker can drive directly)
Power Input	DC 12V/5A (Power On/Off)
Power Consumption	Not more than 5W (Without speaker, LCD, backlight Inverter, USB device)

Network Version Specifications

Component	Specification
Board Configuration	CPU dual core ARM Cortex A9 1.5 GHz(max1.6GHz), Motherboard M158, GPU quad core ARM Mali-400 MP, HYNIX/SAMSUNG DDR3 1Gbyte, HYNIX/SAMSUNG NAND FLASH 8GB (Scalable TF/USB)
Decoding Resolution	Perfect support 1080P Full HD
OS	Android 4.2.2
Programming	Support for video/picture/caption/logo/Date Time Day/weather regional free split-screen combinations; support background images
Play Mode	Receiving media content over the network, stored in the local loop after, commercials, broadcast regularly, gaskets playback; By U-import; U disk playback

PC Version Specifications

Component	Standard Specification	High Specification (Optional)
CPU	Intel G3260/3.2GHZ/Dual core	Intel I3/4150/dual core,3.5GHZ Intel I5 4590/quad core3.4GHZ Intel I7-4790/quad core,3.6GHZ
Main Board	H81/B75	Asus P8 H81M-D
RAM	DDR3,2GB	4GB/8GB/16GB
Storage	S-ATAII 500GB/16MB/5400rpm	1TB HDD or 32GB/64GB/128GB/500GB SSD
Graphics	Intel HD Graphics	HD5450,1GB; 2GB
Ports	4 x USB, 1 x VGA, 1 x LAN, 1 x AUDIO-OUT, 1 x MIC-IN,DVI,HDMI	Same as standard with additional options
Operating System	Windows7,windows8,windows XP,Linux,Apple etc.	Same as standard with additional options

Physical Specifications

Component	Specification
Kiosk Shell Material	1.5mm cold rolled steel+Acrylic cover/Tempered glass
Color	Silver /Black/White/customized pantone colors
Wall Mounted Support	With wall mounted Support
Audio	2 x 10W Speakers, 1 x 30W Amplifier
Ports	Power input \| Power switch \| PC switch \| USB \| LAN \| WIFI
Power Supply	International 110-240 AC power
Operating Temp	Temperature: +5°C ~ +50°C \| Humidity: 0% ~ 80%
Packing Method	Export wooden box+export carton box+4cm foamy

Key Features

Display & Resolution

Full HD display with 1920*1080 high resolution
New imported SAMSUNG, LG or AUO branded LCD screen
Support 16:9 or 9:16 (horizontal/vertical) display

Playback & Programming

Support setting multiple sessions to automatically turn on/off
Support any split-screen, multi-window display
Support to play different content in different windows
Support multimedia file playback formats including MPEG1/2/4, MP4, AVI, RM, RMVB, WMV, VOB, JPEG, MPG, BMP, TXT
Support videos, pictures, scrolling text and many other combinations
Free intelligent programming system, easy to use

Network & Connectivity

Support powerful network: network/WiFi/3G
B/S architecture with strong background server management software
Cloud network platform for remote management
Support remote reboot, remote shutdown, remote screenshots

Touch Screen Options

Standard touch screen: Infrared multi touch screen
Other options: Capacitive, Resistance, Surface etc.
Standard touch points: 2 points / 4 points / 6 points
Other options: Up to 32 points multi touch

Lead Time

Hot sale models: 2-10 units in stock, delivered after payment
Standard products: 15-25 working days (depends on quantity)
Customized products: 25-30 days (depends on complexity and quantity)

About Shenzhen TOPADKIOSK

Specialized in LCD Digital Signage products including LCD DISPLAY, QLED display, OLED display. Our product range includes digital signage, all-in-one PC, touch screens, LCD video walls, and outdoor IP67 High Brightness LCD Digital Signage (7" to 98" sizes). Our products are widely used in USA, Europe, Southeast Asia, Middle East, and Africa for advertising in buildings, shops, hotels, supermarkets, transportation hubs, and outdoor areas.

We offer 7*24 hours service with excellent pre-sales and after-sales support. Customized designs are welcome. Our advantage is providing complete solutions tailored to client needs.
